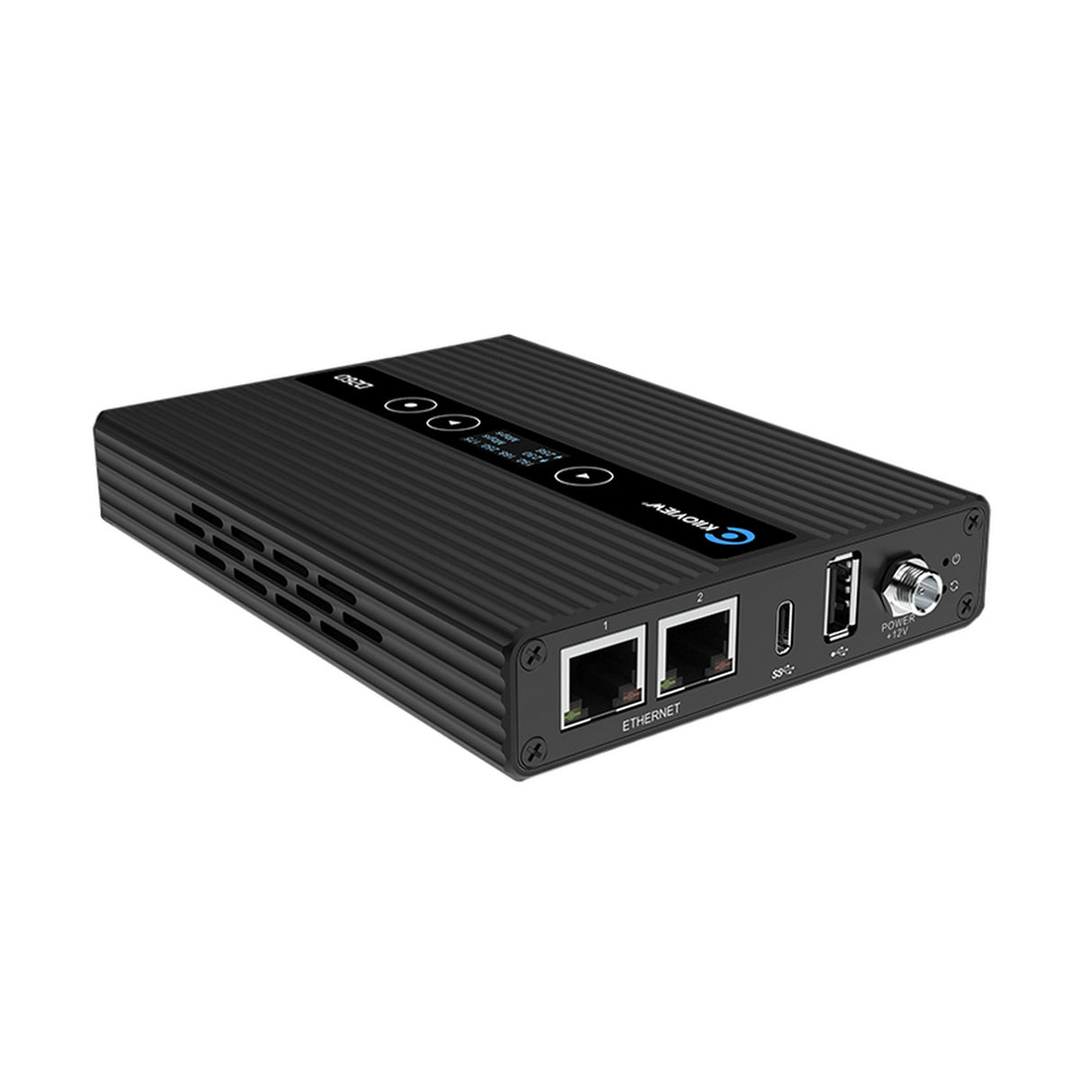

Kiloview D260 4-Channel HD H.265 HDMI/SDI Decoder

Kiloview D260 4-Channel HD H.265 HDMI/SDI Decoder

D260 is Kiloview’s newest H.265 1X3G-SDI+2XHD HDMI decoder which builds on the capabilities of our original decoder DC230 with expanded new features including upgraded decoding performance, extended ports, more protocols supported and a new LCD screen. Everything you need about decoding is packaged in this single unit with low cost.

Upgrading Decoding Performance with H.265/H.264
D260 now supports decoding in H.265 format and up to 4-channel of video streams in 1080p60 simultaneously. All 4 video outputs can be custom to single display or PIP with adjustable figures.

More Protocols Supported
For all IP-based video transmission process, D260 supports the latest NDI technology - NDI|HX3*, NDI|HX2, SRT, RTMP/RTMPS, HLS, TS over UDP, and RTP/RTSP

* Support of NDI|HX3 is still in beta version.

Extended Output Interfaces
As an upgraded version of DC230, D260 adds a couple more interfaces for advanced application. Now D260 is equipped with two HDMI 2.0 ports, one 3G-SDI port and 2 USB ports (one USB Type-A and one USB Type-C) to ensure the scalability, it’s capable for outputting in three ways: Independently, combine multi-channel video flows or replicate of one single flow to stream simultaneously.

16 Preview + 4 Output
D260 supports “preview + output” mode, in which you can preview 16 video streams and select 4 of them to display on the screen for output simultaneously. This feature can also be used for monitoring (PVW/PGM).

Powerful Audio Decoding
D260 is also super powerful in audio decoding. With a long list of audio formats supported including AAC/MPEG-4/MPEG-2/G.711/Opus/LPCM, it’s also capable of switching audio On/Off, audio mix and audio gain in real-time to output alternatively through its HDMI ports, SDI port and 3.5mm line out port.

Custom Layouts
Custom multi-output display is also allowed for D260(including custom grids/PIP/simply drag and drop). All things about display (bit-rate and resolution) can be customized.

Display and Touch Button
D260 is equipped with an LCD screen with touch buttons for a better user experience. With the built-in LCD screen, users can easily check transmission status in real-time.

Technical Specifications

Video Output
2*HDMI
1*3G-SDI
Audio Output
HDMI, SDI and 1*3.5mm Line out
Video Formats
H.264(AVC), Compatible with Baseline/Main/High Profile, up to Level 5.2
H.265(HEVC)Compatible with Main Profile, up to Level 5.1
Video Decoding
4 channels of H.264(AVC)/H.265(HEVC) video streams in resolution of 1080p60
Audio Formats
AAC/MPEG-4/MPEG-2/G.711/Opus/LPCM
Streaming protocols
NDI|HX2.0/NDI|HX3.0*/SRT/RTMP/RTMPS/HLS/TS over UDP/RTP/ RTSP
Display
0.96” LCD Display and Touch Button
Layouts
Custom 1/2/3/4 layouts
Intercom
Yes
OSD
Yes
Tally
Yes
Network Connections
Ethernet Ports: 2*10/100M/1000M
USB Ports
1*USB 2.0 Type-C
1*USB 2.0 Type-A
Power Supply
DC 12V/1A
Management
WebUI/KiloLink Server
Power Consumption
7W(MAX)
Size
162.85mm x 104.00mm x 25.00mm
Weight
328.18g
Operating Temperature
-20 Degrees C~60 Degrees C
