Kiloview LinkDeck Video Control Panel

Kiloview LinkDeck Video Control Panel

Kiloview LinkDeck Series is the product set to centrally link and control all the Kiloview hardware and software. Link Deck is based on RTC technology which allows doing whatever you want. Both Presenting real-time high-quality content on Panel Deck and customizing user settings & display, LinkDeck helps to manage the whole Kiloview ecosystem including NDI ONAIR / NDI CORE / KIS / NDI RECORDER / NDI Encoder / NDI Decoder / Multiview / KiloLink Server. By developing a 3rd-party plug-in based on Python, Linkdeck even allows interaction with systems like TriCaster and vMix.

LinkDeck is an IP-based solution that really helps to safe and stable transmission. All the control and management can be all set and done by only one single PoE cable.

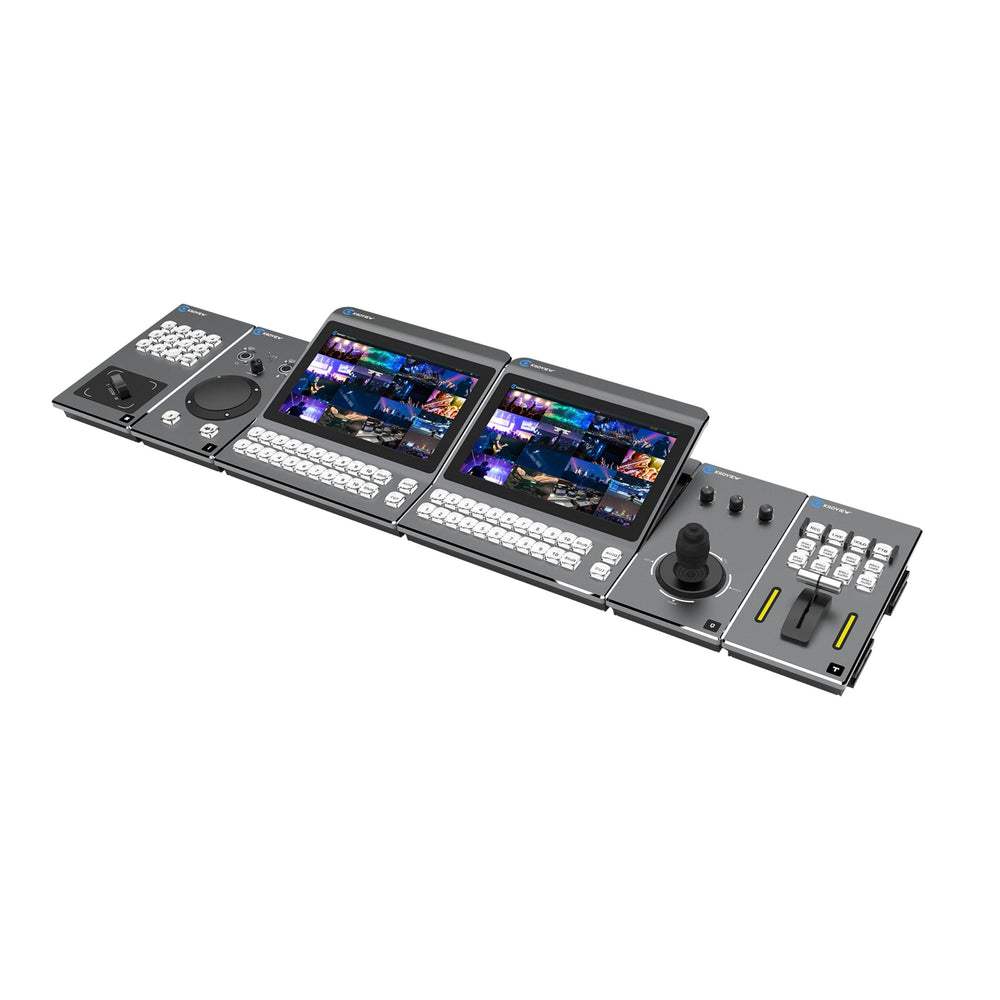

It consists of five unique design decks including the Panel Deck, the Take Deck, the Zoom deck, the KIS Deck, and the PTZ Deck. Each deck can combinate freely to create an exclusive workbench with fully customized content. This unique design also offers Easy assembly and installation for your best user experiences.

The Panel Deck, equipped with a 10.1” touch screen and a bi-color LED keyboard, provides the easiest way of operation and the biggest pleasure of user experience. 10.1” screen allows you to customize whatever product you want to control.

Both soft keys and physical keys make everything under control. DC and PoE power also helps it to rule and be the power source of all the other Decks.

Take Deck helps you to switch like a pro with a “T” stick and dual LED displays. 12 buttons also give a huge pleasure while creating content, Switching / FTB / Recording / Live streaming / Lock screen with one single press, is the easiest way to operate.

PTZ Deck gives one-handed and comfortable control of all your PTZ cameras. The simple movement of the joystick and control knob is just the ideal way of taking control.

With Zoom Deck’s rocker, you can simply zoom in / out whenever you want. It also has 11 soft buttons for all your personal customization.

KIS Deck Offers 3 sets of pro audio in / out: Mixer with canon plug amplifier / USB microphone / Speaker with a goose-neck microphone. It also has its own PoE port to work independently. This deck is all you want about the audio intercom.

Panel Deck is made of aircraft-grade materials and designed for bringing the studio experience wherever you are with its own whole set of pro-level joystick/button/knob/ports.

Technical Specifications

Panel Deck DP-01
Display
10.1” multitouch LCD screen
Resolution
1920 x 1200
Keyboard
24 keys (Bi-color tally)
CPU
8-core CPU
Memory
2GB
FLASH Storage
16GB
Video Output
1 x HDMI output up to 1080P60
Internet Input
1GbE port with PoE
Power Supply
DC5.5/2.5 12V
HDMI Port
1
Key
24, user-defined keys
USB Port
7xType-C 2.0
DC Port
Single DC5.5/2.1
Dimension / Weight
6.65lb/285.33*260.00*110.10mm (11.2”x10.2”x4.3”)
Operating Temperature
-20 Degrees Celsius ~ 45 Degrees Celsius
KIS Deck DK-01
Audio
1 x microphone (3 pin)
1 x headphone (5 pin)
2 x Line in/out (3 pin)
USB Port
1 x Type-C 2.0
Internet Input
1 x RJ45 Gigabit Ethernet port, PoE supported
Volume Wheel
1
Keys
3
Built-in Speaker
1
Three-way Switch
1
Dimension / Weight
3.52lb / 260.00*130.00*59.54mm (10.2”x5.1”x2.3”)
PTZ Deck DQ-01
USB
2 x USB Type -C 2.0
Key
1
Control Knob
3
Joystick
1
Tally
3 (2 in white, 1 in RGB based on settings)
Dimension / Weight
3.30lb/ 260.00*130.00*107.45mm (10.2”x5.1”x4.2”)
Zoom Deck DZ-01
Keys
13
ZOOM Rocker
1
USB
2 xType-C 2.0
Dimension / Weight
3.04lb/260.00*130.00*53.68mm (10.2”x5.1”x2.1”)
Take Deck DT-01
USB
2 x Type-C 2.0
Keys
13
T Stick
1
Dimension / Weight
3.22lb/ 260.00*130.00*74.00mm (10.2”x5.1”x2.9”)
