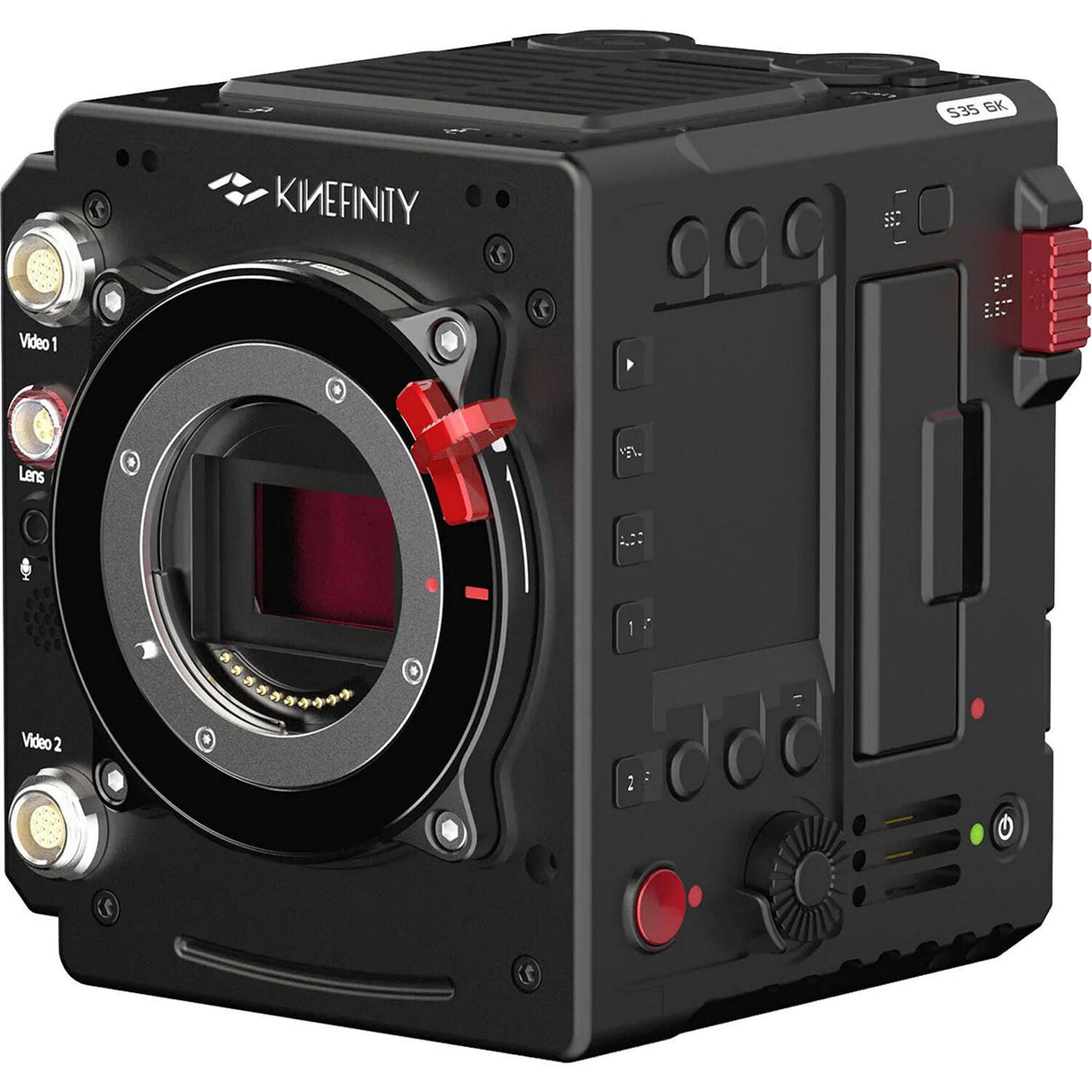

Kinefinity MAVO mark2 S35 6K Full Frame 3:2 CMOS Imaging Sensor Camera

The Kinefinity MAVO mark2 S35 6K Full Frame 3:2 CMOS Imaging Sensor Camera is built around a high-performance processor and a new S35 3:2 CMOS image sensor. It can work with a large variety of existing Super35-format lenses using a separately available KineMOUNT and lens adapter. The camera offers frame rates up to 6K 96 fps and 4K 112 fps, dual native 800/3200 ISOs, 14+ stops of dynamic range, and cleaner imaging for enhanced video capture in both standard and low-light settings.

The MAVO mark2 adopts the MAVO Edge high-performance computing platform and integrates industry standard ports like independent dual SDI outputs with metadata. It encodes stunning images as Apple ProRes4444/XQ footage onto NVMe M.2 2280 SSDs. The lightweight compact camera body with a streamlined workflow provides a professional and efficient filmmaking experience at a more affordable price.

The MAVO mark2 S35 is designed to use S35 lenses, which are widely available and more affordable than full-frame counterparts. The camera's new 3:2 CMOS image sensor and advanced processing enable it to better retain highlight details, enhancing capture of nuanced lighting environments. It offers high frame rate options of up to 6K wide 96 fps and 4K wide 112 fps for creating slow-motion sequences. Kine LOG3 gamma recording preserves the complete dynamic range captured by the sensor.

Key features

• Mount Anything: The MAVO Mark II S35 breaks compatibility barriers. Use cine lenses, photo lenses, or even electronic mounts (EF, Sony E) with ease.

• Active Lens Mounts (Optional): Experience the future of lens control with the Active PL Mount and Active Sony E Mount. These optional mounts enable electronic adjustments for focus, iris, zoom, and stabilization on compatible lenses.

• Expandability with Adapters: The separate, robust KineMOUNT lets you adapt to EF, PL, and LPL lenses using readily available adapters.

• Advanced Color, Exceptional Highlights: The MAVO Mark II S35 boasts a high-performance computing core for superior color processing and highlight handling.

• Blazing-Fast Recording: Capture stunning Apple ProRes 4444/XQ footage to KineMAG Nano SSDs thanks to the camera's high bandwidth.

• Customizable Look and Feel: Upload your creative 3D LUTs or leverage the built-in Rec.709 neutral LUT for a natural starting point.

• Go Anywhere, Shoot Anything: The compact MAVO Mark II S35, weighing only 3 lbs, is perfect for handheld and gimbal setups.

• Seamless Connectivity: The camera offers a variety of ports, including two proprietary video outputs, an HD video output, and a control port.

• Pro Audio on Board: Record pristine multichannel audio with the MAVO Mark II S35's built-in features, including phantom-powered XLR and a 3.5mm stereo input.

• Power Flexibility: A hybrid battery plate accepts both popular 14.8V V-mount batteries and smaller BP-U batteries for extended shooting.

• Unlock the Full Potential: The MAVO Mark II S35 seamlessly integrates with Kinefinity TERRA accessories, including optional OLED viewfinders, 5” or 7” monitors, and a SideGrip for enhanced control.

• Expand Connectivity: Take your setup to the next level with the optional KineBACK-W, adding dual 3G-SDI outputs, dual XLR audio inputs, timecode, sync, and additional valuable connections.

• ProRes Options for Efficient Workflow: The MAVO Mark II S35 offers a range of Apple ProRes recording options, from 422LT to 4444XQ, to suit your project's needs.

• High Frame Rate & Resolution: Shoot stunning footage at resolutions up to 6K wide with frame rates reaching incredible heights.

• Faster Post-Production: ProRes encoding delivers superior image quality while accelerating your post-production workflow.

• Shoot True Anamorphic: The MAVO Mark II S35 supports both 5.3K 4:3 and 4.9K 6:5 anamorphic modes. This allows you to use a wider variety of anamorphic lenses, including both 2x and 1.33x squeeze factors.

• In-Camera De-squeeze: The camera conveniently de-squeezes the anamorphic image for easier framing and monitoring during filming.

• KineMAGs for Security and Speed: Choose from 1TB or 2TB proprietary KineMAGs with read-only and RAID 5 data security options for peace of mind.

• Open Format Flexibility: For maximum versatility, use the KineMAG Nano Body to record directly onto third-party NVMe M.2 2280 SSDs.

Technical Specifications

Packing List
MAVO mark2 S35 camera body x1
Camera Body Cover x 1
Dual-band WiFi antenna x 1
usb-c to usb-a adapter x 1
KINEFINITY LOGO sticker x 1
CMOS Sensor
CMOS Sensor
Full Frame 6K 3:2 CMOS Imaging Sensor
Max Record Res
6016x3984 (3:2 Open Gate), 24M
Frame Rate
6K Wide 0.2~75fps
Active Area
36x24mm, ø 43.3mm
Dual Base ISO
Regular Base ISO: 800, High Base ISO：5120
Latitude
>14 Stops
Shutter Angle
0.7°~358° with rolling shutter
Lens Mount
Active PL Mount, Active E Mount, Native KineMOUNT (Adapters: PL/LPL/EF)
Optical Filter
Optical LPF with UV and IR-cut filter
Body Weight
2.98lb/1.35kg
Size (WxHxL)
4.1x4.8x4.3”/106x124x107 mm (*w/o protrusion)
