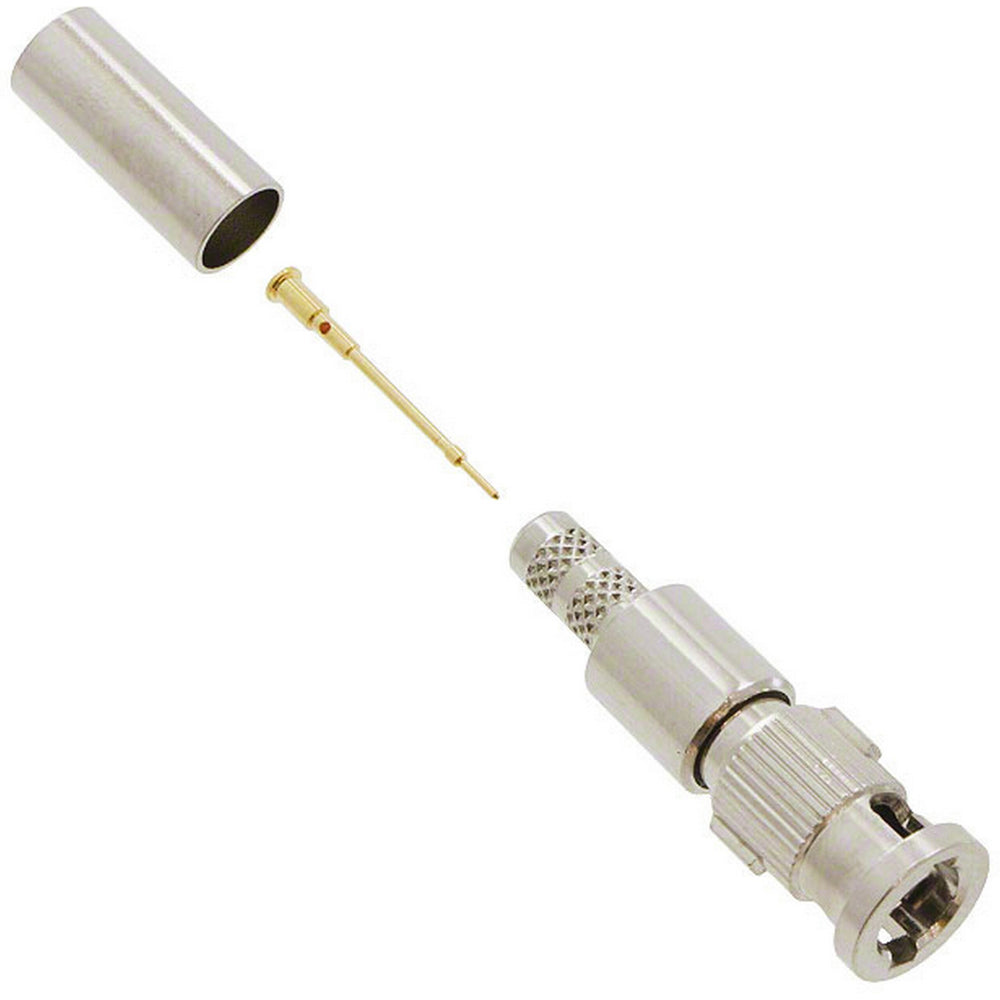

The Kings HHD1855A is a High-Density Micro BNC (HD) male plug for use with Belden 1855A.The HHD BNC Series Connectors are miniaturized BNC connectors similar in size to DIN 1.0 / 2.3 connectors and feature a quick-connect/quick-disconnect interface. HHD BNC Series Connectors exceed SMPTE 424M-2006 (3G-SDI), optimized to achieve superior electrical performance for 6G-SDI and 12G-SDI single 4K coax channels.
Key Features
- Hex Die Size: .042 / .178
Technical Specifications
Type
Plug
Gender
Male
Orientation
Straight
Frequency
4 GHz
Electrical
Impedance
75 Ohms
Frequency Range
DC - 12 GHz
Return Loss
-30 dB Max to 3 GHz
-20 dB Max to 6 GHz
-10 dB Max to 12 GHz
Dielectric WIt'standing Voltage
500 Volts
Contact Resistance
Center: 5 Meg Ohms
Outer: 2.5 Meg Ohms
Insulation Resistance
10,000 Meg Ohm
Material
Insulator Material
PTFE
Body Material
Brass
Body Finish
Nickel or Gold
Contact Material
Male - Brass
Female - Beryllium Copper
Mechanical
Mating
Bayonet Locking
Braid / Jacket
Hex Crimp
Center Contact
Solder / Crimp
Connector Durability
500 Mating Cycles Min
