Condition: New

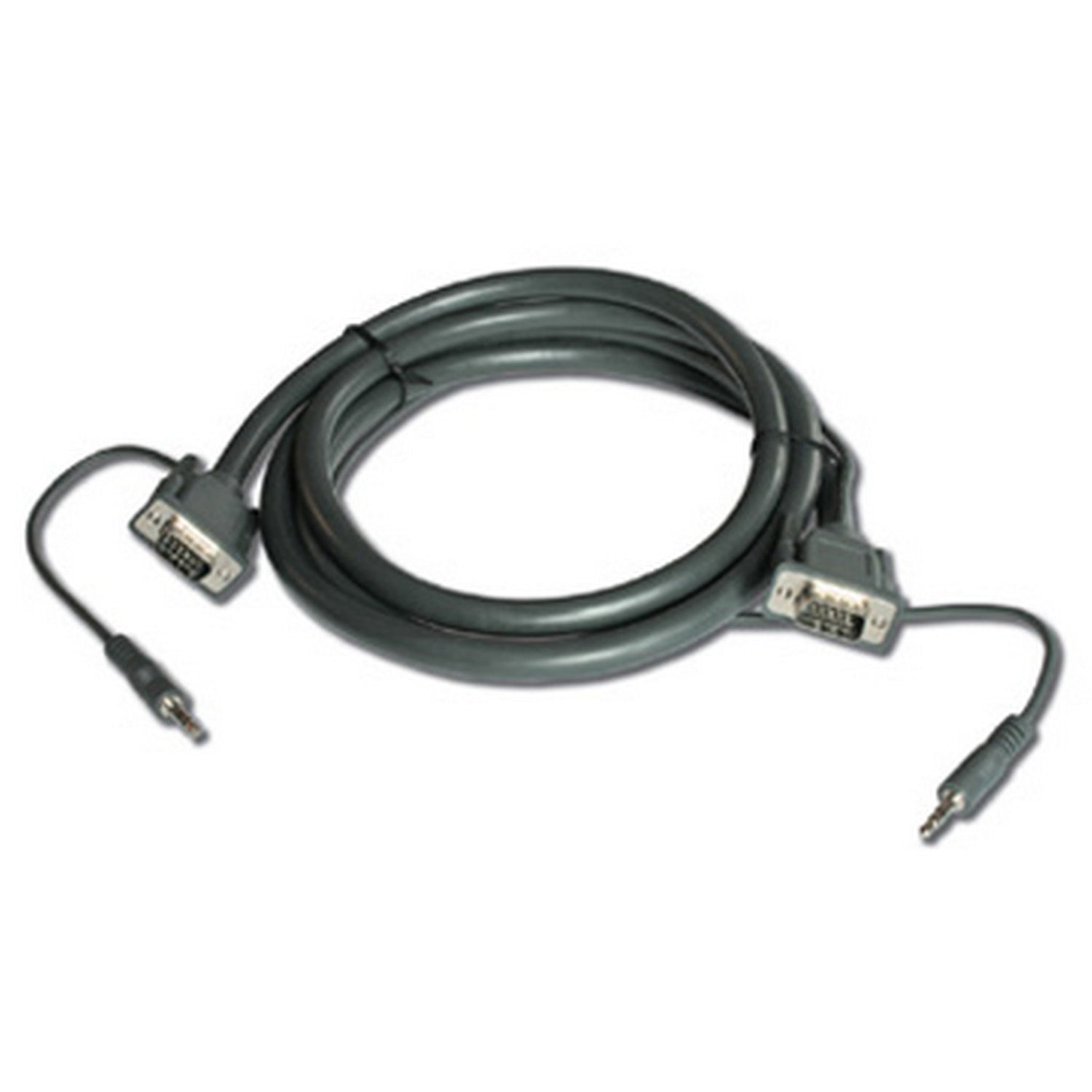

Kramer 15-Pin HD and 3.5mm Stereo Audio Cable
The Kramer C–GMA/GMA series combines high-resolution VGA video with stereo audio over a single rugged 14-conductor cable. Ideal for boardrooms, classrooms, and professional AV installations, it features molded 15-pin HD (M) connectors with thumbscrews, a 3.5 mm mini-jack, and gold-plated pins for reliable signal integrity.
Each model includes extended audio leads and full DDC2/DDC1 & EDID support, ensuring seamless plug-and-play compatibility with displays.
Key Features
- Connector Type: Molded 15-pin HD (M) to 15-pin HD (M) & 3.5 mm stereo mini-jack (M) with thumbscrews
- Cable Construction: 14-conductor flexible PVC jacket, black
- Pins: Gold-plated for corrosion resistance
- Impedance: 75 Ω (video)
- EDID/DDC: Full DDC1/DDC2 & EDID support on all pins
- Operating Temperature: –20 °C to 75 °C (–4 °F to 167 °F)
- Safety Ratings: UL CL2, CSA C(UL) CL2
-
Length Options:
- C–GMA/GMA–3: 0.90 m (3 ft)
- C–GMA/GMA–6: 1.80 m (6 ft)
- C–GMA/GMA–10: 3.00 m (10 ft)
- C–GMA/GMA–15: 4.60 m (15 ft)
- C–GMA/GMA–25: 7.60 m (25 ft)
- C–GMA/GMA–35: 10.70 m (35 ft)
- C–GMA/GMA–50: 15.20 m (50 ft)
- C–GMA/GMA–75: 22.90 m (75 ft)
Technical Specifications
- Audio Lead Extensions: 24 in (61 cm) & 8 in (20 cm)
- Operating Temperature: –20 °C to 75 °C (–4 °F to 167 °F)
- Safety: UL CL2, CSA C(UL) CL2
What's Included
- 1x Kramer C–GMA/GMA cable (model & length per selection)
