Condition: New

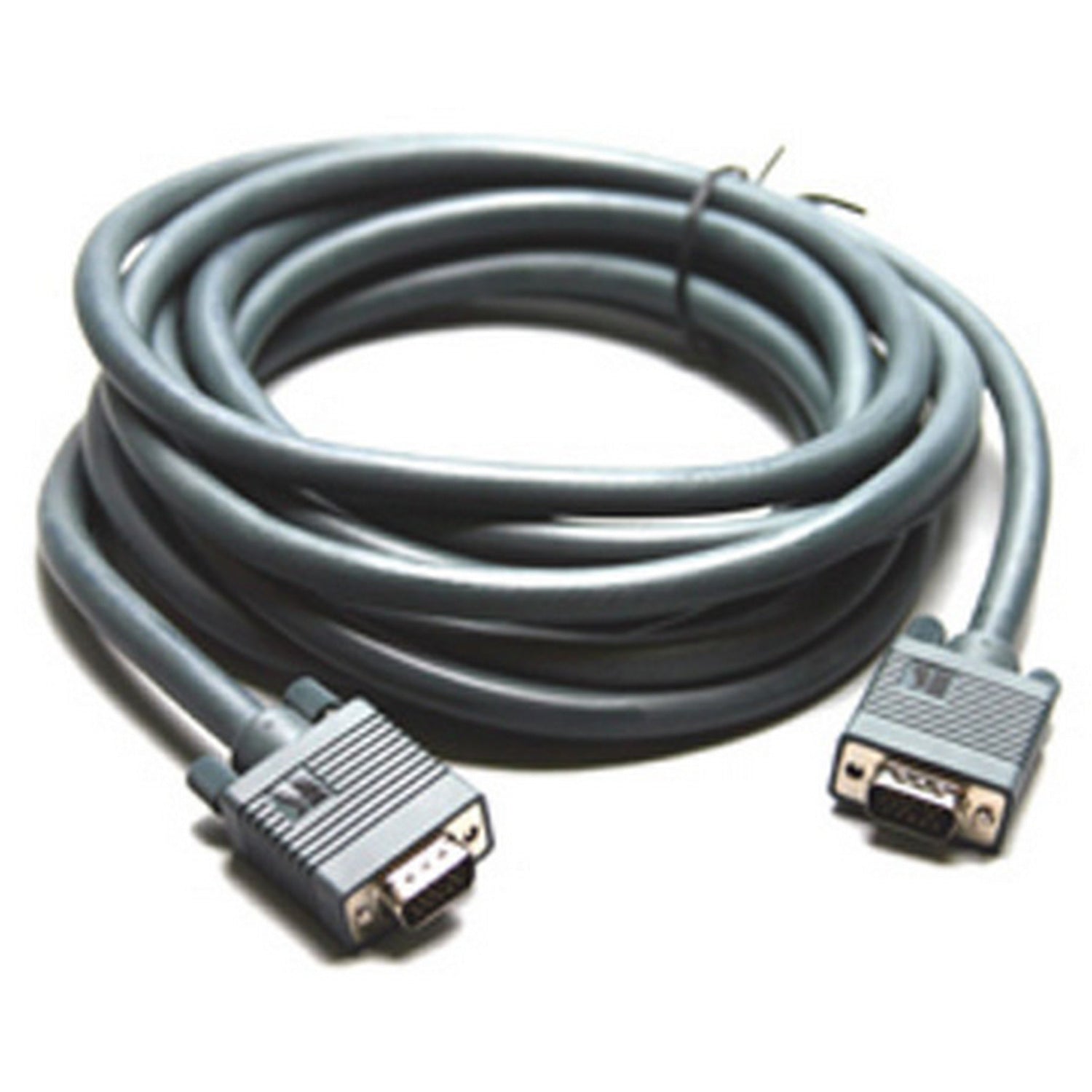

Kramer 15-Pin HD Cable
The Kramer C–GM/GM is a high-performance computer graphics video cable designed to deliver crystal-clear analog VGA signals between computers, video scalers, and displays such as plasma or LCD screens. Engineered with 26 AWG mini coax, gold-plated pins, and molded connectors, it ensures minimal signal loss and easy installation, making it ideal for corporate boardrooms, educational facilities, and professional AV installations.
Available in a broad range of lengths from 1 ft to 150 ft (0.3 m to 45.7 m), the C–GM/GM series accommodates any room size or setup requirement. Each cable features color-coded foam polyethylene dielectric, a dual-layer shield (90% spiral copper + foil/Mylar), and a durable PVC jacket, providing robust protection and consistent impedance throughout the run.
With UL CL2 and CSA C(UL) CL2 ratings, the Kramer C–GM/GM meets stringent safety standards for in-wall installation, ensuring both performance and compliance in professional AV environments.
Key Features
- Connector Type: Molded 15-pin HD (M) to 15-pin HD (M) with thumbscrews
- Cable Gauge: 26 AWG mini coax for high-resolution video
- Shielding: 90% spiral tinned copper + aluminum-foil/Mylar
- Dielectric: Foam polyethylene with RGB color coding
- Jacket: PVC, black
- Impedance: 75 Ω
-
Length Options:
- C–GM/GM–1: 0.30 m (1 ft)
- C–GM/GM–3: 0.90 m (3 ft)
- C–GM/GM–6: 1.80 m (6 ft)
- C–GM/GM–10: 3.00 m (10 ft)
- C–GM/GM–15: 4.60 m (15 ft)
- C–GM/GM–25: 7.60 m (25 ft)
- C–GM/GM–35: 10.70 m (35 ft)
- C–GM/GM–50: 15.20 m (50 ft)
- C–GM/GM–75: 22.90 m (75 ft)
- C–GM/GM–100: 30.50 m (100 ft)
- C–GM/GM–125: 38.10 m (125 ft)
- C–GM/GM–150: 45.70 m (150 ft)
Technical Specifications
- Center Conductor: 0.019 in (0.48 mm)
- Dielectric: 0.076 in (1.95 mm)
- Individual Coax OD: 0.102 in (2.6 mm)
- Impedance: 75 Ω
- DC Resistance: 45 Ω/1000 ft (148 Ω/km)
- Capacitance: 17.3 pF/ft (57 pF/m)
-
Attenuation:
- –0.5 dB/100 ft @1 MHz
- –1.3 dB/100 ft @5 MHz
- –1.9 dB/100 ft @10 MHz
- –4.0 dB/100 ft @50 MHz
- –5.7 dB/100 ft @100 MHz
- –8.0 dB/100 ft @180 MHz
- –14.0 dB/100 ft @400 MHz
- Operating Temperature: 68 °F to 167 °F (–20 °C to 75 °C)
- Safety Ratings: UL CL2, CSA C(UL) CL2
What's Included
- 1x Kramer C–GM/GM cable, length per selected model
