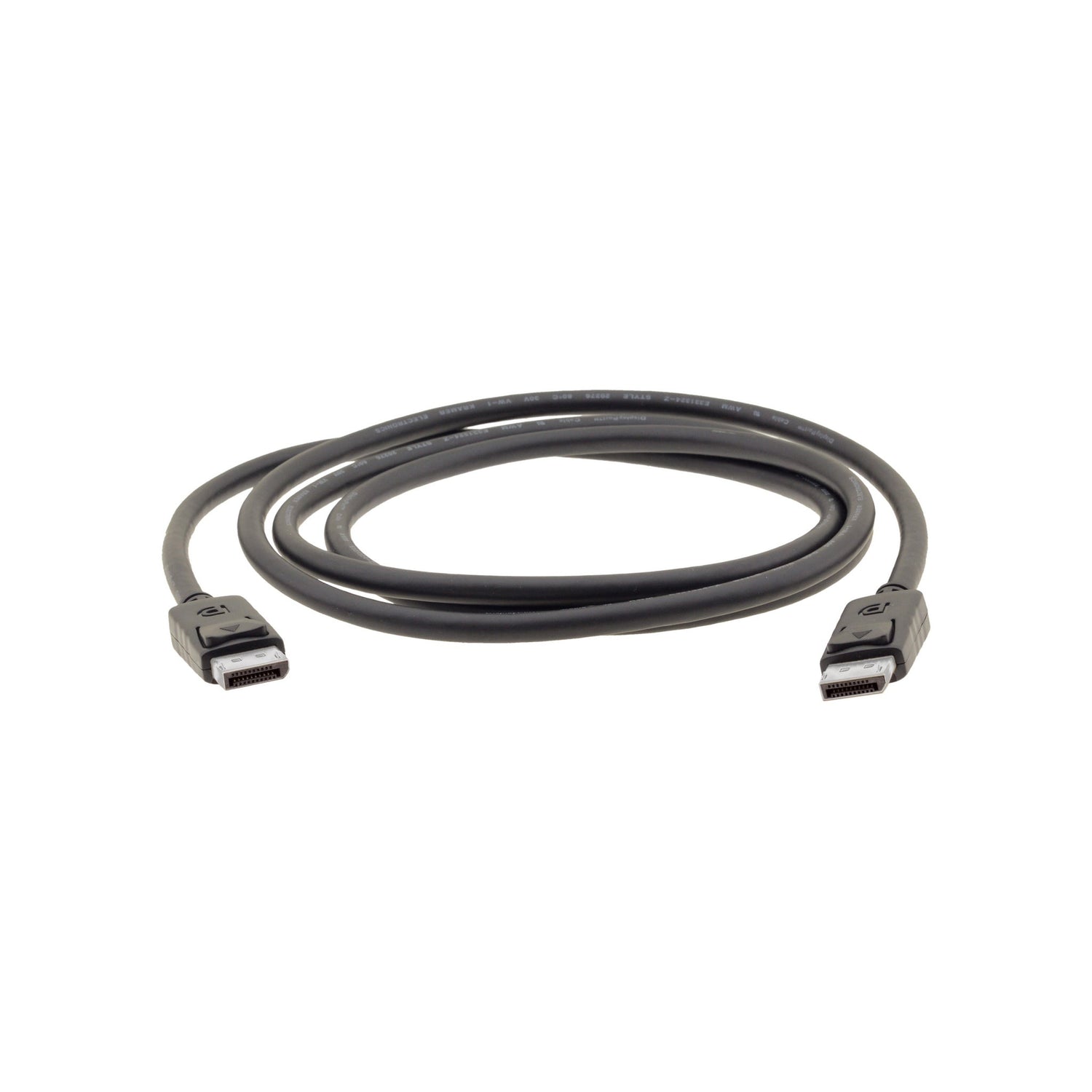

Kramer 4K DisplayPort Cable
The Kramer C-DP is a professional-grade DisplayPort cable supporting up to 4K@60Hz (4:4:4) resolution and compliant with DisplayPort 1.2. It delivers high-bandwidth video signals with HBR2 (High Bit Rate 2) up to 21.6 Gbps, ensuring crystal-clear images for demanding AV installations.
Featuring molded latching DisplayPort connectors and triple-shielded construction, the C-DP cable eliminates RF and EM interference, protects your signal, and secures connections. It is backward compatible with DisplayPort 1.1 and supports MST daisy chaining for multi-monitor setups.
Key Features
- Resolution Support: Up to 4K@60Hz (4:4:4)
- Bandwidth: HBR2 up to 21.6 Gbps (5.4 Gbps per lane)
- Content Protection: DPCP & HDCP 2.2
- Daisy Chain: MST (Multi-Stream Transport) support
- Connectors: Gold-plated pins (15 μ) with nickel-plated shell and latches
- Construction: Triple shielding
- Compatibility: Backward compatible with DisplayPort 1.1
- Jacket: PVC, Black
- Varied Lengths: 0.90 m to 15.20 m
Technical Specifications
- Video Resolutions: All VESA resolutions up to 4K@60Hz (4:4:4)
- Max. Data Rate: 21.6 Gbps
- Conductors: 28 AWG (3–15 ft), 26 AWG (25–50 ft)
- Jacket Diameter: 7.2 ± 0.19 mm (3–15 ft), 8.2 ± 0.19 mm (25–50 ft)
- Average Thickness: 0.96 mm (3–15 ft), 0.57 mm (25–50 ft)
- Voltage Rating: 30 V
- Temperature Rating: 80 °C
- Dielectric Strength: AC 750 V/1 sec Min
- Insulation Resistance: 100 MΩ/km Min at 20 °C
- Conductor Resistance: 237 Ω/km (28 AWG), 148 Ω/km (26 AWG) at 20 °C
- Differential Impedance: 100 ± 5 Ω
- Skew: Intra‐pair 50 ps/2 m; Inter‐pair 4 ns/2 m
- Standards Compliance: VW-1, RoHS 2011/65/EU
Available Variations
- C-DP-3: 0.90 m (3 ft) – 4K@60Hz
- C-DP-6: 1.80 m (6 ft) – 4K@60Hz
- C-DP-10: 3.00 m (10 ft) – 4K@60Hz
- C-DP-15: 4.60 m (15 ft) – 4K@60Hz
- C-DP-25: 7.60 m (25 ft) – 4K@60Hz
- C-DP-35: 10.70 m (35 ft) – 1080 p
- C-DP-50: 15.20 m (50 ft) – 1080 p
What's Included
- Kramer C-DP DisplayPort Cable (selected length)
