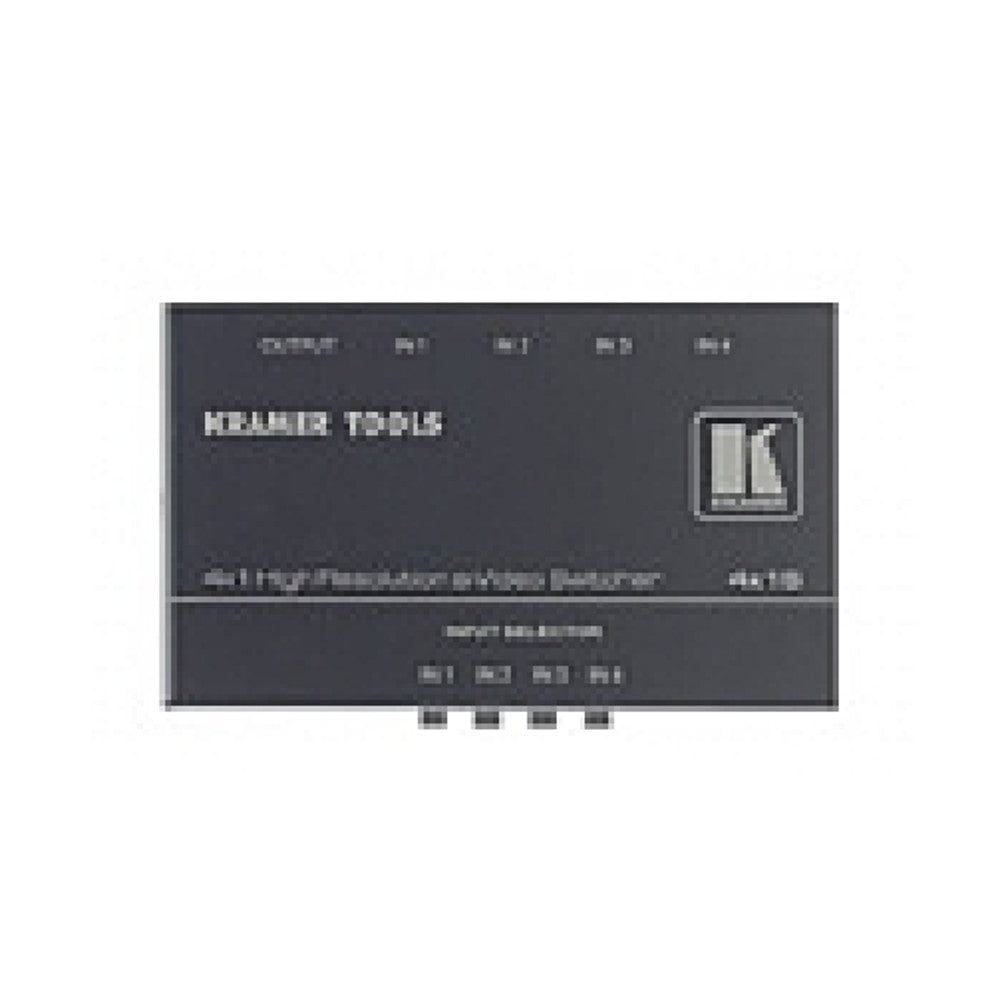

Kramer 4X1S 4 x 1 s-Video Mechanical Switcher
Kramer 4X1S 4 x 1 s-Video Mechanical Switcher
Kramer 4X1S 4 x 1 s-Video Mechanical Switcher
The 4x1S is a high-performance switcher for s-Video (Y/C) signals. It'switches any one of
four signals to a single output.
Key Features
- High Bandwidth (Y) - 400MHz (-3dB).
- Mechanical (Passive) Switching - No power required.
- Compact Kramer TOOLS - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter
Technical Specifications
INPUTS
4 s-Video, 1Vpp/75 OHM (Y), 0.3Vpp/75 OHM (C) on 4-pin connectors.
OUTPUT
1 s-Video, 1Vpp/75 OHM (Y), 0.3Vpp/75 OHM (C) on a 4-pin connector.
BANDWIDTH (-3dB)
400MHz (Y).
SWITCHING SYSTEM
Mechanical, break-before-make.
DIMENSIONS
12cm x 7.5cm x 2.5cm (4.7” x 2.95” x 0.98”) W, D, H.
WEIGHT
0.3kg (0.66lbs) approx.
INCLUDED ACCESSORIES
Mounting bracket.
OPTIONS
RK-3T 19” rack adapter.
