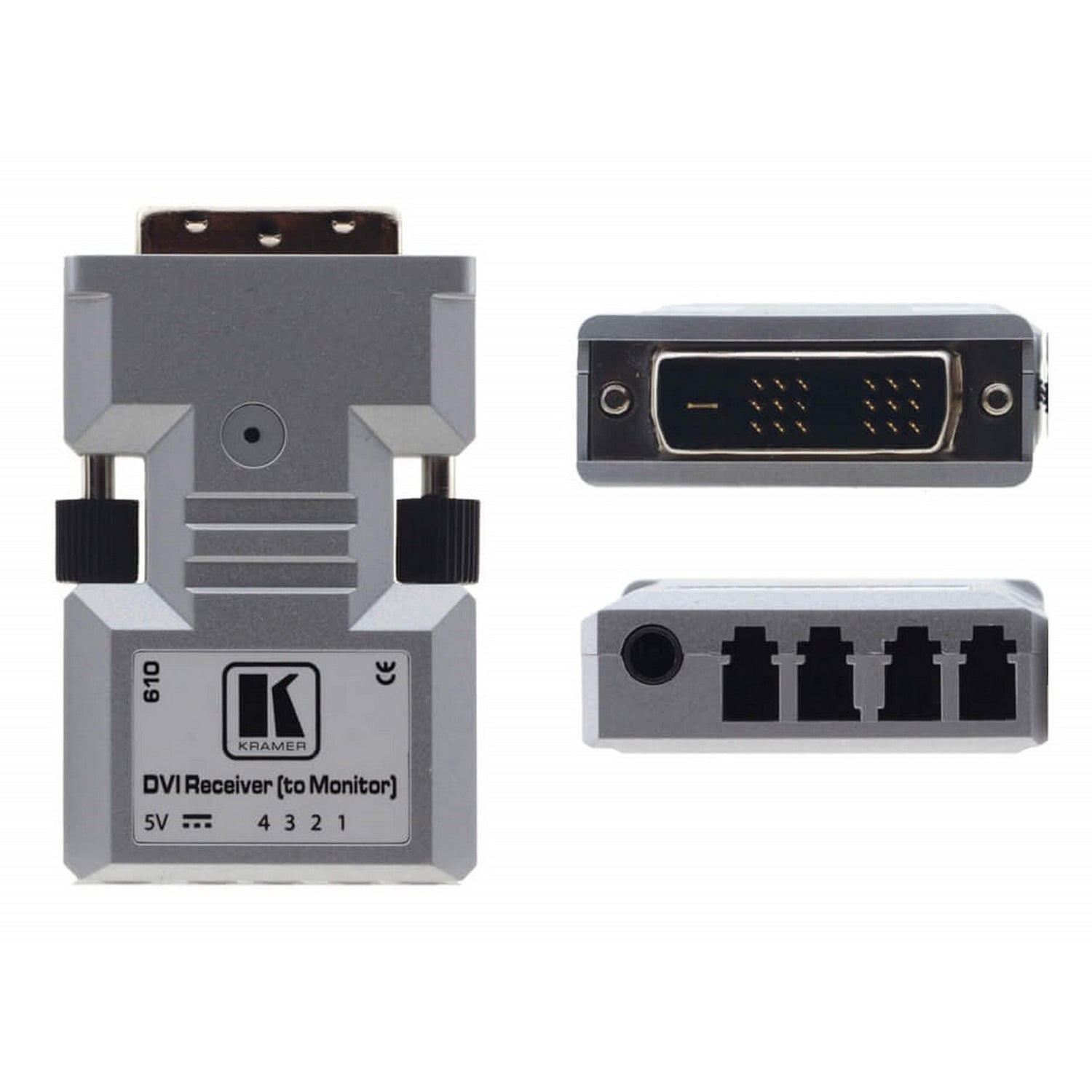

Kramer 610R Detachable DVI Optical Receiver
The 610R is a detachable optical device for receiving DVI signals with resolutions of up to 1920x1200 at 60Hz over LC optical cable. The 610R receives fiber optic signals sent by the 610T or a Kramer digital matrix and converts them into DVI signals.
Key Features
- Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel).
- HDTV Compatible.
- Not HDCP Compliant.
- System Range - Up to 500m (1640ft).
- EDID Capture - Copies and stores the EDID from a display device (610T).
- Cable - Multimode fiber optic cable with 4 simplex or 2 duplex LC fiber connectors.
- Power - External power adapter (supplied) or 5V DC from source.
- Compact Size - Part of the Kramer TOOLS family of compact, highquality and costeffective solutions.
Technical Specifications
INPUTS
DVID on a DVII connector (610T)
4 LC optical connectors for R, G, B & clock (610R)
OUTPUTS
4 LC optical connectors for R, G, B & clock (610T)
DVID on a DVII connector (610R)
RESOLUTION
Up to WUXGA @60Hz (1.65Gbps)
HUMIDITY
Operating: 5% to 65%
Storage 5% to 95%
POWER CONSUMPTION
5V DC, <500mA
INCLUDED ACCESSORIES
2 power supplies
