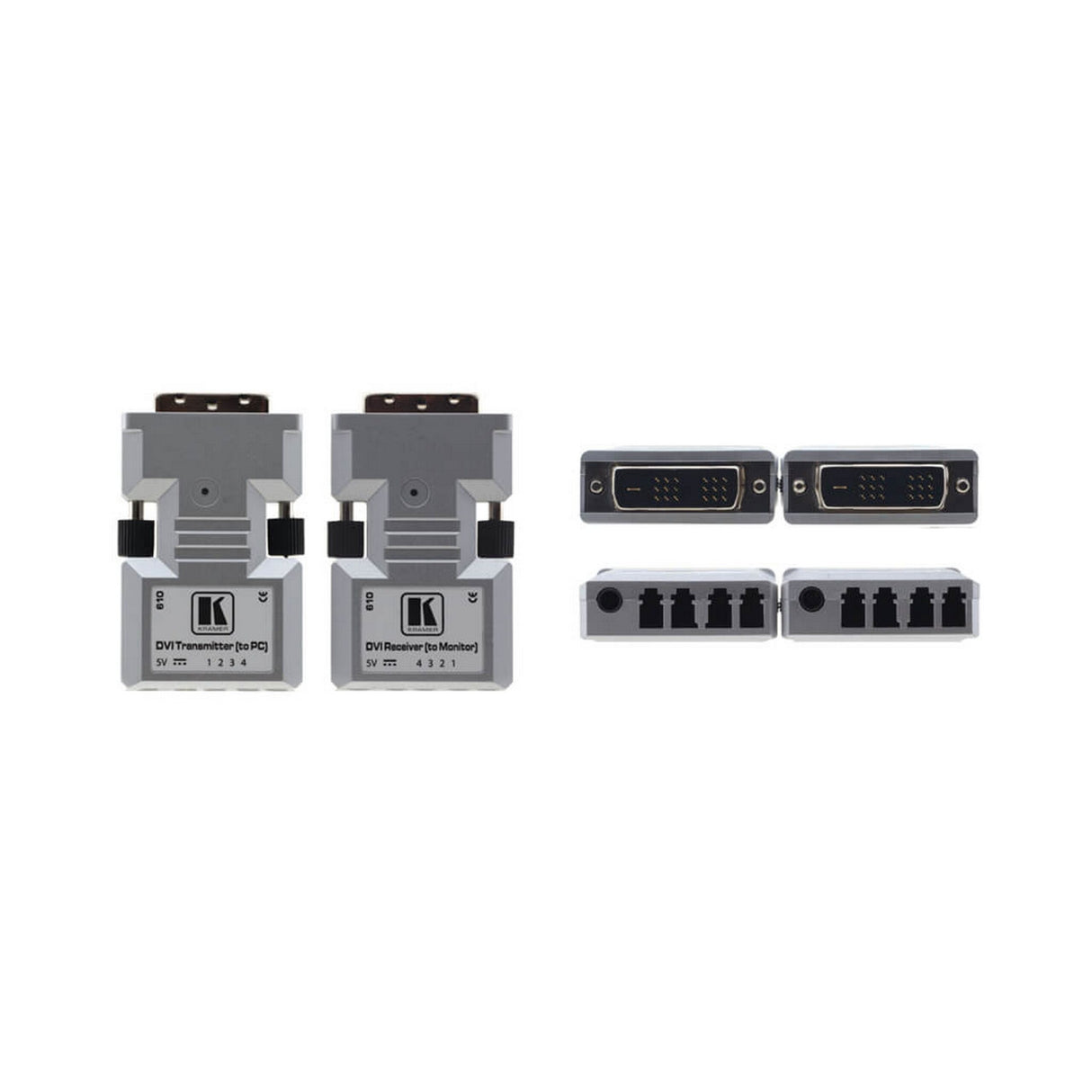

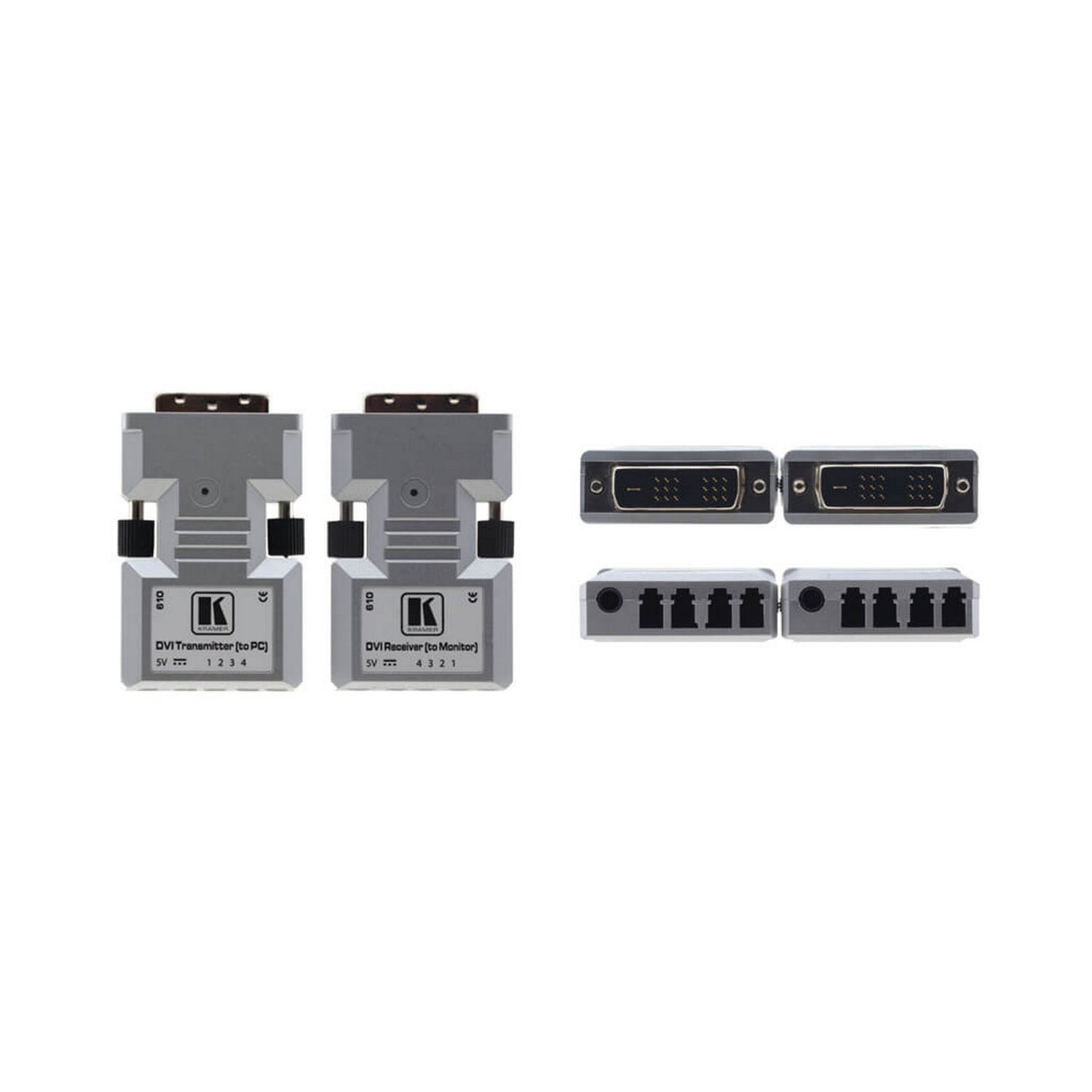

Kramer 610R/T DVI Rx/Tx Extender Over Ultra-Reach MM Fiber

The 610T and 610R are a detachable optical transmitter and receiver for sending DVI signals with resolutions of up to 1920x1200 at 60Hz over LC optical cable. The 610T attaches to the transmitter side of a fiber optical cable and the 610R connects to the receiver end and both are sold as a set.

Key Features

• Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel)
• Standards Compliance - Certified for medical applications according to IEC 60601-1-2 (Electromagnetic Compatibility)
• HDTV Compatible
• Not HDCP Compliant
• System Range - Up to 400m (1312ft)
• EDID Capture - Copies and stores the EDID from a display device (610T)
• Cable - Multimode fiber optic cable with 4 simplex or 2 duplex LC fiber connectors
• Power - External power adapter (supplied) or 5V DC from source

Technical Specifications

INPUTS
Single-link DVI-D on a DVI-I connector (610T)
4 LC optical connectors for R, G, B & clock (610R)
OUTPUTS
4 LC optical connectors for R, G, B & clock (610T)
single-link DVI-D on a DVI-I connector (610R)
RESOLUTION
Up to WUXGA @60Hz (1.65Gbps)
HUMIDITY
Operating: 5% to 65%
Storage 5% to 95%
POWER CONSUMPTION
5V DC, 240mA max. (610T)
390mA max. (610R)
INCLUDED ACCESSORIES
2 power supplies
