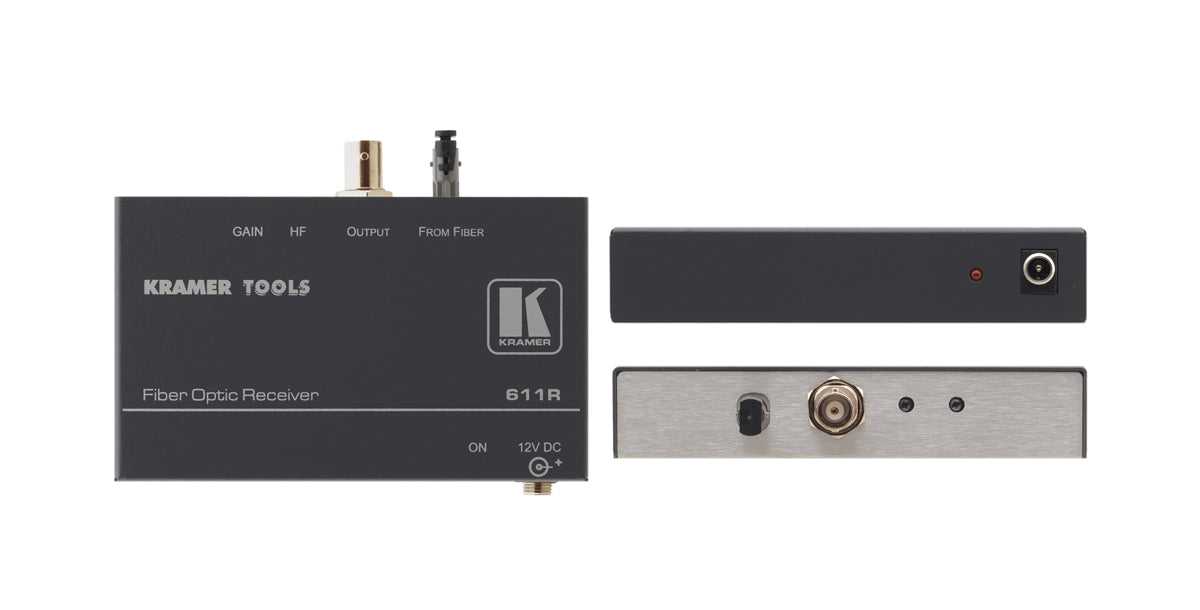

Kramer 611R Composite Video over Fiber Optic Receiver (Requires 611T)
Kramer 611R Composite Video over Fiber Optic Receiver (Requires 611T) accepts a signal over Fiber Optics utilizing ST connectors, and outputs composite video. With a receiver/transmitter combination, cable runs of 5 kilometers are possible.
Fiber optics carries the signal much farther than coax cable, and is lighter. Signal transmission of up to 5 kilometers is possible. Another advantage of fiber transmission is complete ground isolation between source and display.
Key Features
- Fiber Optics
- Bandwidth - 55MHz (−3dB).
- Level (Gain) and EQ (Peaking) Controls.
- Multi-Mode - 5km (3.1mi).
- Compact Kramer TOOLS™
Technical Specs
Input
Fiber Optics, on an ST Connector
Output
Composite Video, 1 Vpp @ 75 ohms, on a BNC connector
Video Bandwidth
55 MHz
Video Signal-to-Noise Ratio
60 dB
Differential Gain
0.4%
Video Controls
Power On/Off
Internal Gain and HF
Dimensions (WxDxH)
4.7 x 2.95 x 0.98"
12 x 7.5 x 2.5cm
Weight
0.59 lbs, 0.27 kg
Power Source
12 VDC from an AC Adapter
