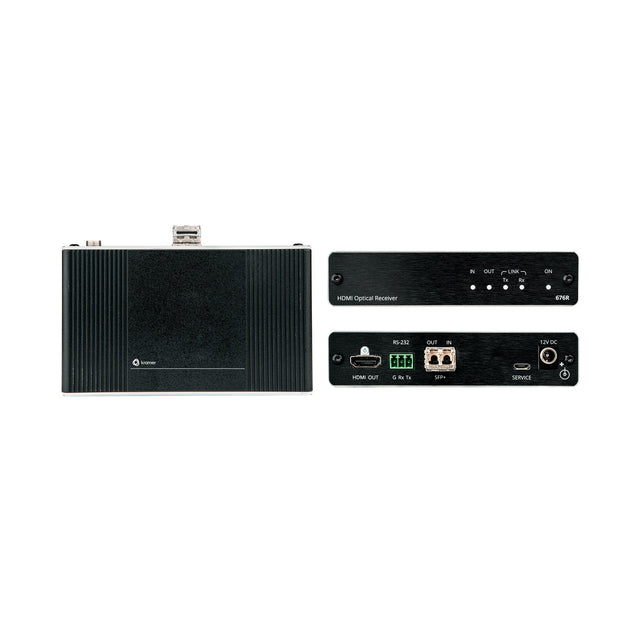

Kramer 676 R4K60 4:4:4 HDMI and RS-232 Receiver over Ultra-Reach MM/SM Fiber Optic
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Most orders placed before 10:00am PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
4K60 4:4:4 HDMI and RS-232 Receiver over Ultra-Reach MM/SM Fiber Optic

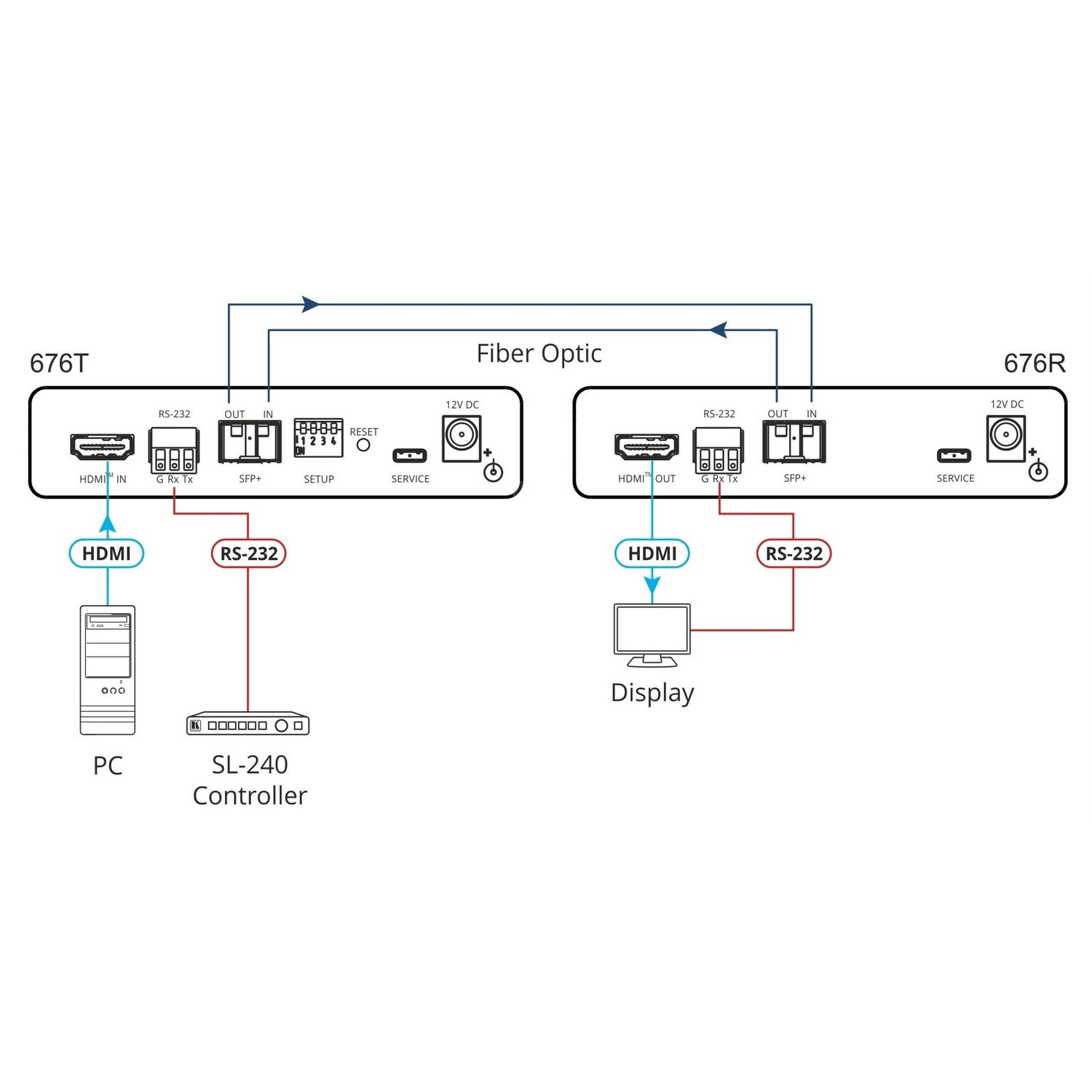

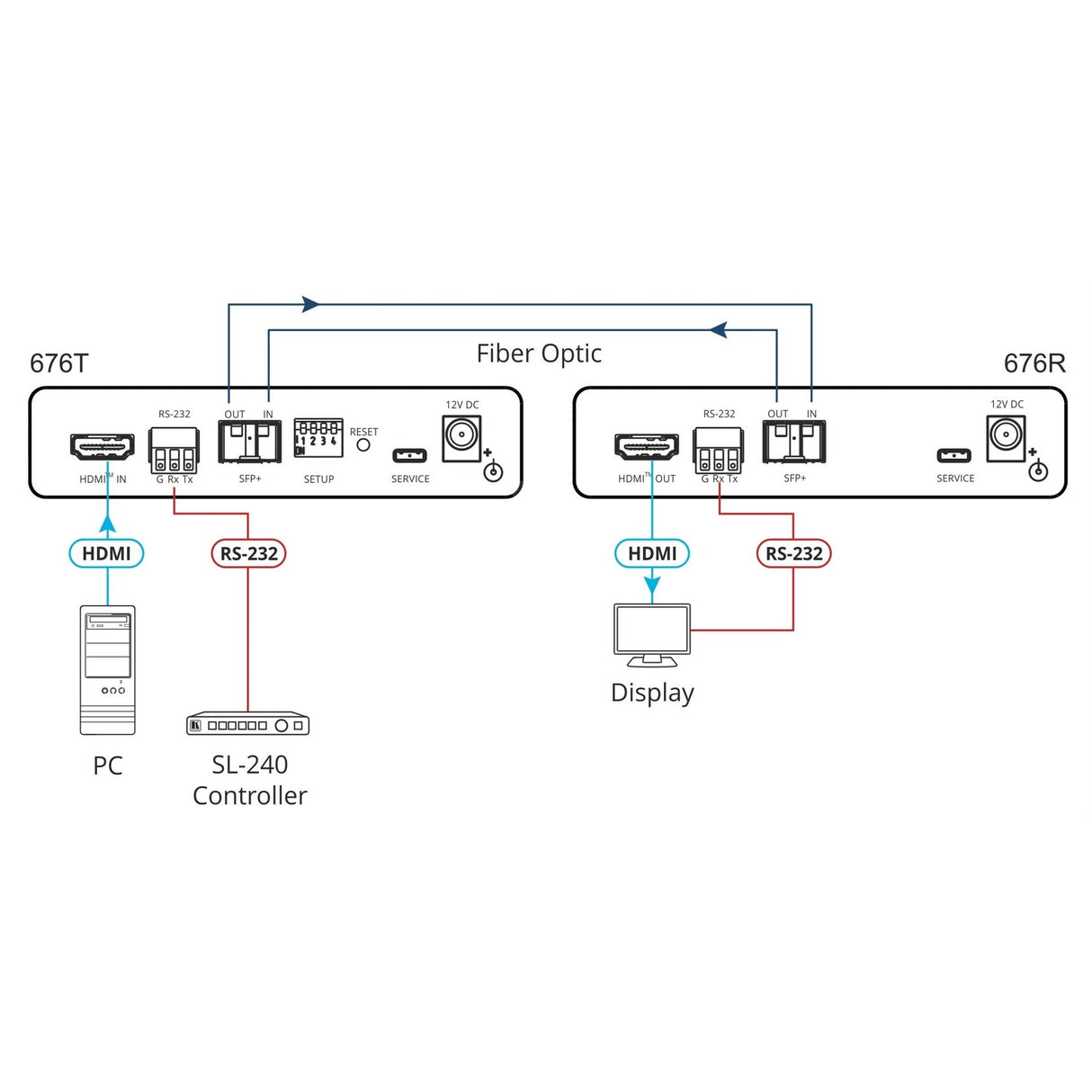

The Kramer 676R is a high-performance HDMI fiber receiver designed for ultra-long distance distribution of 4K @ 60 Hz (4:4:4) audio/video signals. It seamlessly converts optical input from a compatible transmitter into HDMI and RS‑232 outputs. Ideal for large-scale AV installations requiring secure, long-distance signal extension.
Supporting both multimode (up to 3 km) and single-mode (up to 33 km) fiber with included SFP+, the 676R complies with HDMI 2.0 and HDCP 2.2. It incorporates Kramer’s I‑EDIDPro™ intelligent EDID management and CEC-based power-saving control. Its compact, rack-friendly DigiTOOLS® aluminum housing ensures flexible deployment.
Designed for professional environments like government buildings, conference centers, and multi-room setups, the 676R offers near-zero latency AV distribution over long distances.
Key Features
- Resolution: Up to 4096×2160 @ 60 Hz (4:4:4)
- Bandwidth: 18 Gbps (6 Gbps per HDMI channel)
- Fiber Optic: LC connector(s), multimode & single-mode compatible
- SFP+ Module: 10 Gbps IEEE 802.3ae compliant (multimode included)
- Control: Bidirectional RS‑232 via 3‑pin terminal block
- CEC Power Control: Automatic on/off via HDMI linked devices
- I‑EDIDPro™: For automatic HDMI handshaking and plug-and-play setup
- Rack Mount: Rackable in groups of three using DigiTOOLS® bracket
- Indicators: LEDs for power, source, sink, optical link status
- Cooling & Housing: Convection ventilation, aluminum chassis
Technical Specifications
- Dimensions: 4.72″ × 2.81″ × 0.96″ (12.00 × 7.15 × 2.44 cm)
- Weight: 0.5 lb (0.2 kg)
- Video Bandwidth: 18 Gbps
- Max Resolution: 4096×2160 @ 60 Hz (4:4:4)
- HDMI Compliance: HDMI 2.0, HDCP 2.2
- Fiber Reach: 3 km on OM3 multimode; 33 km on OS1 single-mode
- SFP+ Standards: Patent 10 Gbps IEEE 802.3ae; Class 1 Laser
- RS‑232 Baud Rate: 300-115200
- Temperature Range: Operating 0 °C to +40 °C; Storage -40 °C to +70 °C
- Humidity: 10-90% RH non-condensing
- Power Input: 12 V DC, 2 A (380 mA consumption)
- Certifications: UL, CE, RoHS, WEEE, EMC EN 55022/24; IEC 60825‑1/2; IEC 62368‑1
- Housing: Fan-less, aluminum
What's Included
- 676R Receiver unit
- Multimode 10 Gbps SFP+ transceiver
- 12 V DC power adapter + cord
- Mounting bracket set (rack-friendly)
- User documentation & quick-start guide
Kramer 676R HDMI and RS‑232 Fiber Receiver
The Kramer 676R is a high-performance HDMI fiber receiver designed for ultra-long distance distribution of 4K @ 60 Hz (4:4:4) audio/video signals. It seamlessly converts optical input from a compatible transmitter into HDMI and RS‑232 outputs. Ideal for large-scale AV installations requiring secure, long-distance signal extension.
Supporting both multimode (up to 3 km) and single-mode (up to 33 km) fiber with included SFP+, the 676R complies with HDMI 2.0 and HDCP 2.2. It incorporates Kramer’s I‑EDIDPro™ intelligent EDID management and CEC-based power-saving control. Its compact, rack-friendly DigiTOOLS® aluminum housing ensures flexible deployment.
Designed for professional environments like government buildings, conference centers, and multi-room setups, the 676R offers near-zero latency AV distribution over long distances.
Key Features
- Resolution: Up to 4096×2160 @ 60 Hz (4:4:4)
- Bandwidth: 18 Gbps (6 Gbps per HDMI channel)
- Fiber Optic: LC connector(s), multimode & single-mode compatible
- SFP+ Module: 10 Gbps IEEE 802.3ae compliant (multimode included)
- Control: Bidirectional RS‑232 via 3‑pin terminal block
- CEC Power Control: Automatic on/off via HDMI linked devices
- I‑EDIDPro™: For automatic HDMI handshaking and plug-and-play setup
- Rack Mount: Rackable in groups of three using DigiTOOLS® bracket
- Indicators: LEDs for power, source, sink, optical link status
- Cooling & Housing: Convection ventilation, aluminum chassis
Technical Specifications
- Dimensions: 4.72″ × 2.81″ × 0.96″ (12.00 × 7.15 × 2.44 cm)
- Weight: 0.5 lb (0.2 kg)
- Video Bandwidth: 18 Gbps
- Max Resolution: 4096×2160 @ 60 Hz (4:4:4)
- HDMI Compliance: HDMI 2.0, HDCP 2.2
- Fiber Reach: 3 km on OM3 multimode; 33 km on OS1 single-mode
- SFP+ Standards: Patent 10 Gbps IEEE 802.3ae; Class 1 Laser
- RS‑232 Baud Rate: 300-115200
- Temperature Range: Operating 0 °C to +40 °C; Storage -40 °C to +70 °C
- Humidity: 10-90% RH non-condensing
- Power Input: 12 V DC, 2 A (380 mA consumption)
- Certifications: UL, CE, RoHS, WEEE, EMC EN 55022/24; IEC 60825‑1/2; IEC 62368‑1
- Housing: Fan-less, aluminum
What's Included
- 676R Receiver unit
- Multimode 10 Gbps SFP+ transceiver
- 12 V DC power adapter + cord
- Mounting bracket set (rack-friendly)
- User documentation & quick-start guide
