Kramer 692 4K60 4:2:0 HDMI MM/SM Fiber Optic Receiver with USB

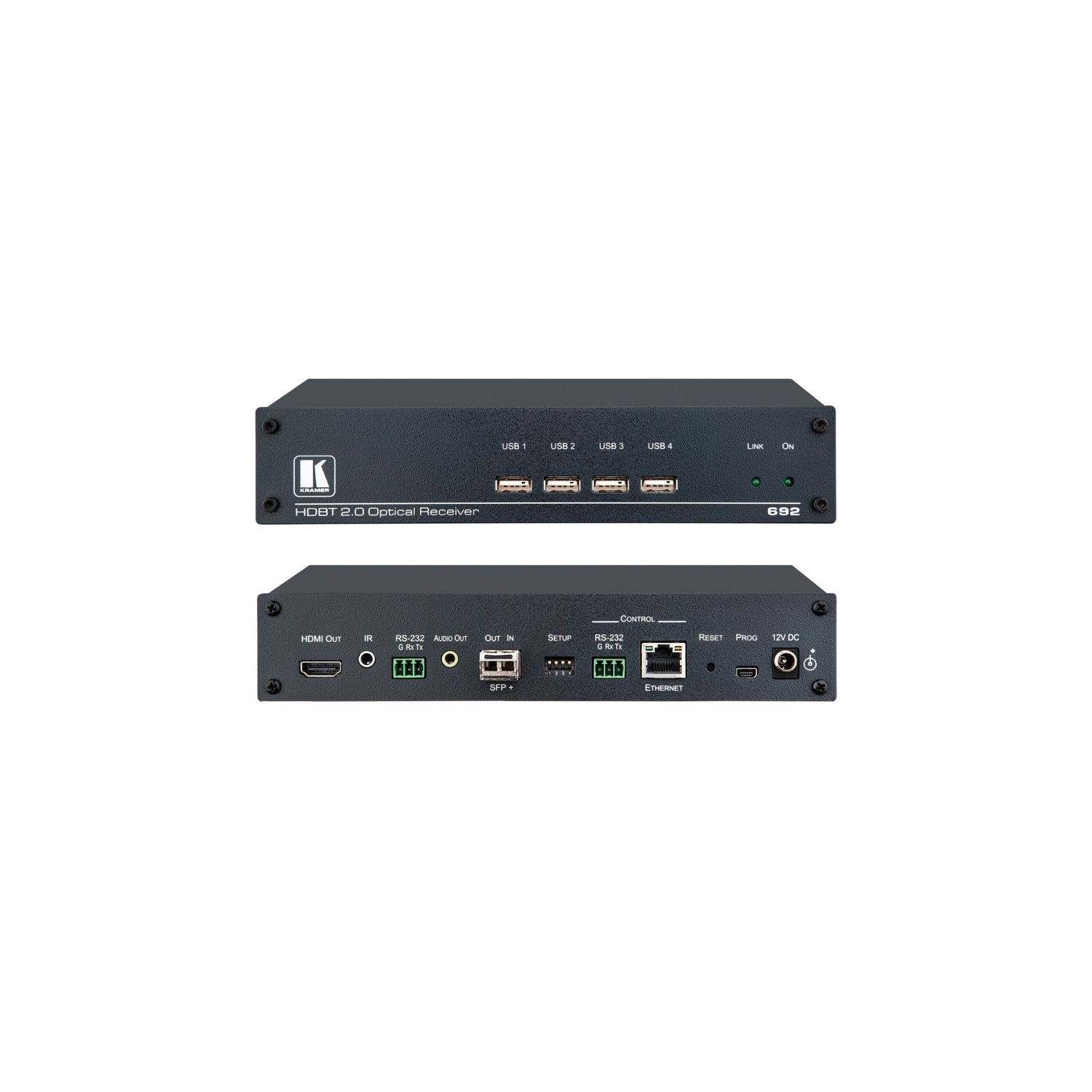

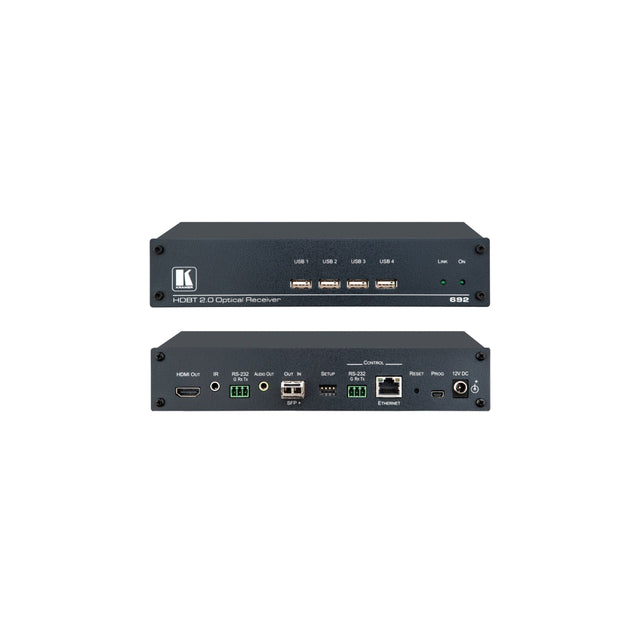

692 is a high-performance HDBaseT 2.0 fiber receiver for ultra-reach extension of 4K60Hz (4:2:0) HDMI, USB, Ethernet, RS-232, IR and stereo audio signals over either multi-mode or single-mode fiber optic. 692 converts the HDBaseT 2.0 fiber optics signal received from an extended line transmitter back into 4K60Hz (4:2:0) HDMI, USB 2.0, Ethernet, RS-232, IR and stereo audio output signals.It extends video signals to up to 33km (20.5 miles) over single-mode fiber at up to 4K@60Hz (4:2:0) resolution. 692 includes a multimode OSP+ transceiver, but can be used with a single mode OSP+ transceiver and fiber as well.
Key Features
- High Performance Standard Fiber Extender - HDBaseT 2.0 fiber receiver for providing ultra-reach signals over either multi-mode or single-mode optical fiber infrastructures, using Kramer pluggable OSP SFP+ units. 692 is a standard fiber extender that can be connected to any market-available HDBaseT-compliant extension product
- HDMI Signal Extension - HDCP 1.4 compliant. Supports deep color, x.v.Color, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC signals are passed through from the source to the display
- I-EDIDPro Kramer Intelligent EDID Processing - Intelligent EDID handling, processing and pass-through algorithm that ensures
- Plug and Play operation for HDMI source and display systems
- Ethernet Extension - Ethernet interface data flows in both directions allowing extension of up to 100Mbps Ethernet connectivity for LAN communication and device control
- Bidirectional RS-232 Extension - Serial interface data flows in both directions allowing data transmission and device control
Technical Specifications
INPUTS
1 fiber optic: On a 10Gbps SFP+ LC connector complying with IEEE 802.3ae
OUTPUTS
1 HDMI: On HDMI connector,
1 Stereo Analog Unbalanced Audio: On a 3.5mm mini jack
PORTS
1 IR: On a 3.5mm mini jack for IR link extension
1 USB: On on a female USB-B connector for USB link extension
1 RS-232: On on a 3-pin terminal block for serial link extension
1 RS-232: On on a 3-pin terminal block for transmitter control
1 100BaseT Ethernet: On on an RJ-45 female connector for device control and LAN extension
EXTENSION LINE
Optical Fiber: Multi-mode (MM) or single-mode (SM)
Optical Module: Kramer 10Gbps SFP+ IEEE 802.3ae compliant modules (MM is included)
Compliance: HDBaseT 2.0
MULTI-MODE LINE
Compliance: G.651.1 OFNR fiber
Nominal Peak Wavelength: 850 nm
Typical Optical Transmission Power: -2.5dBm
Typical Optical Maximum Loss Budget: 8.6dB
Max Reach over OM3 MM Fiber: 3km (1.8 miles)
SINGLE-MODE LINE
Compliance: G.652D OFNR fiber
Nominal Peak Wavelength: 1310 nm
Typical Optical Transmission Power: -2.5dBm ,
Typical Optical Maximum Loss Budget: 11.9dB
Max Reach over OS1 SM Fiber: 33km (20.5 miles)
VIDEO
Max Data Rate: 10.2Gbps bandwidth (3.4Gbps per graphic channel)
Max Resolution: 4K UHD @60Hz (4:2:0) 24bpp resolution
Content Protection: HDCP 1.4 signal compliance
HDMI Support: Deep color, x.v.Color, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0
AUDIO
Max Level: 1 Vrms, 0.03% THD + noise @1kHz at nominal level
EXTENDED USB
Compliance: 1.1 and 2.0 host compliance
Max Data Rate: 127Mbps (out of max 480 USB)
Maximum Number of Connected USB Devices: 7 devices
Maximum Number of Connected USB Hubs: 2, up to 8 ports per hub
EXTENDED ETHERNET
Max Data Rate: 100Mbps
EXTENDED RS-232
Baud Rate: 300 to 115200
SUPPORTED PC WEB BROWSERS
Windows 7 and higher: Internet Explorer (32/64 bit) version 10, Firefox version 30, Chrome version 35
MAC: Chrome version 35, Firefox version 30, Safari version 7
Note: Minimum browser window size 1024 x 768
POWER
Source: 12V DC, 5A
Consumption: 2.8A
ENCLOSURE
Size: Ā½ 19ā 1U
Type: Aluminum
Cooling: Convection ventilation
ENVIRONMENTAL CONDITIONS
Operating Temperature: 0Ā° to +40Ā°C (32Ā° to 104Ā°F)
Storage Temperature: -40Ā° to +70Ā°C (-40Ā° to 158Ā°F)
Humidity: 10% to 90%, RHL non-condensing
REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
Vibration: ISTA 1A in carton (International Safe Transit Association)
Safety: CE, UL
Environmental: Complies with appropriate requirements of RoHs and WEEE
ACCESSORIES
Included: MM SFP+ transceiver, power adapter
PRODUCT DIMENSIONS
1.33cm x 5.70cm x 0.85cm (0.52" x 2.24" x 0.33" ) W, D, H
21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D, H
PRODUCT WEIGHT
1.0kg (2.1lbs) approx.
SHIPPING DIMENSIONS
12.60cm x 8.40cm x 4.10cm (4.96" x 3.31" x 1.61" ) W, D, H
35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H
SHIPPING WEIGHT
0.1kg (0.1lbs) approx.
1.5kg (3.2lbs) approx.
