Kramer 810 Composite Video and S-Video Color Bar/Audio Tone Generator

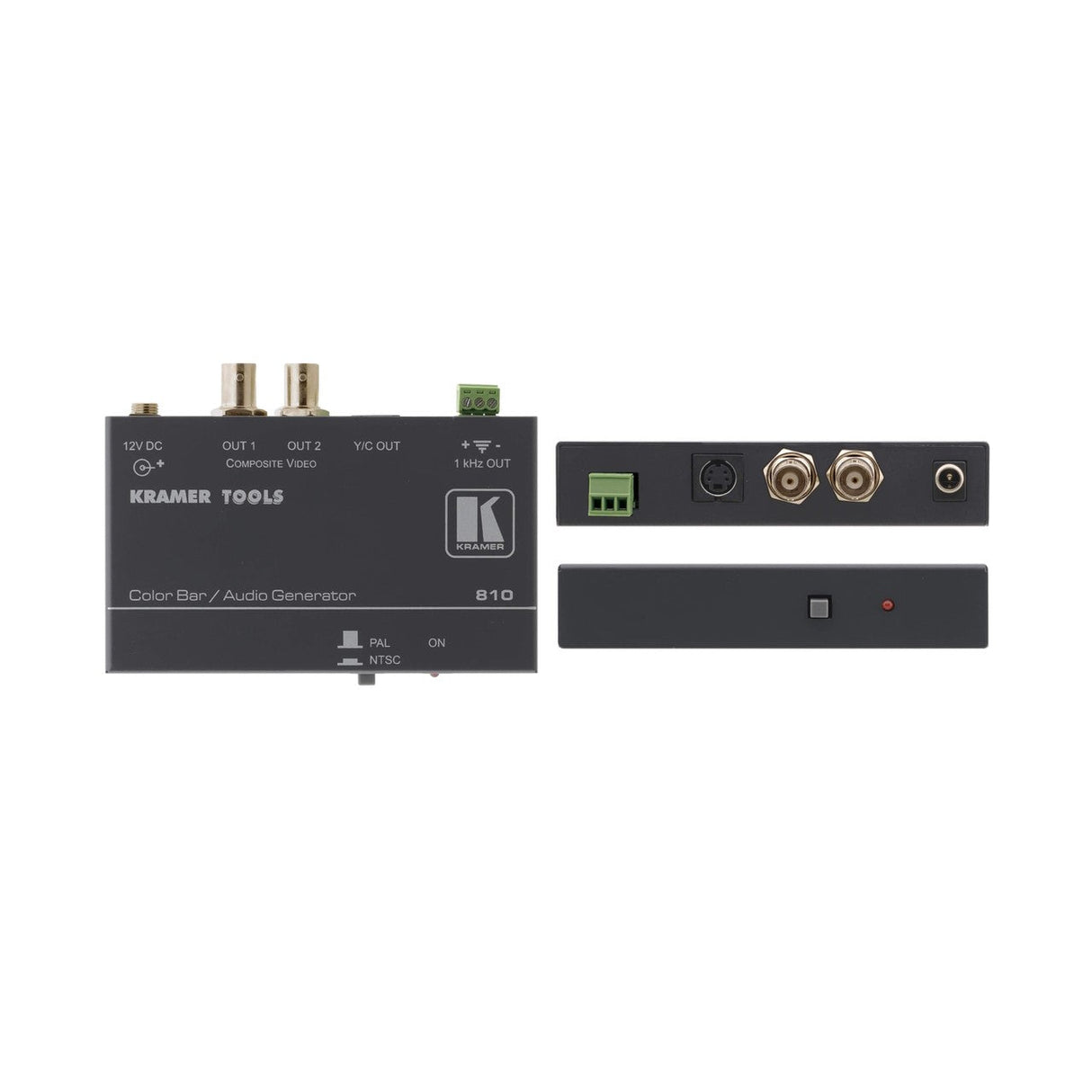

The 810 is a high-performance composite video and s-Video (Y/C) color bar and 1kHz audio tone generator. It outputs two composite video and one s-Video color bar signal in either NTSC or PAL, and a 1kHz audio tone simultaneously.
Key Features
- PAL or NTSC Output
- Video Output - Color bar
Technical Specifications
VIDEO OUTPUTS
2 75% color bar on BNC connectors, 1Vpp/75 ohms
1 75% s-Video color bar on a 4-pin connector, 1Vpp/75 OHMS (Y), 0.3Vpp/75 OHMS (C)
AUDIO OUTPUT
Unbalanced stereo audio, 1kHz, 4dBu/47 OHMS on a detachable 3-pin terminal block
VIDEO S/N RATIO
75dB
CONTROL
PAL/NTSC selector switch
audio level control (trimmer)
LINE JITTER
2ns
POWER CONSUMPTION
12V DC, 230mA
INCLUDED ACCESSORIES
Power supply, mounting bracket
PRODUCT DIMENSION
12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT
0.2kg (0.4lbs) approx.
SHIPPING DIMENSION
23.20cm x 12.00cm x 8.90cm (9.13" x 4.72" x 3.50" ) W, D, H
SHIPPING WEIGHT
0.5kg (1.1lbs) approx.
