Kramer 860 4K60 4:4:4 HDMI 18 Gbps Signal Generator and Analyzer
Kramer | SKU: KRMR-860-60860090
1
of
3
Loading...
$1,72800
Free Shipping
Unit price
/
Unavailable
More finance options:
Estimated Shipping Widget will be displayed here!
Enjoy free standard shipping on all orders over $99. Please note that this offer excludes oversized, overweight, special orders, custom products, and items with minimal profitability.
Most orders placed before 10:00am PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Most orders placed before 10:00am PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New

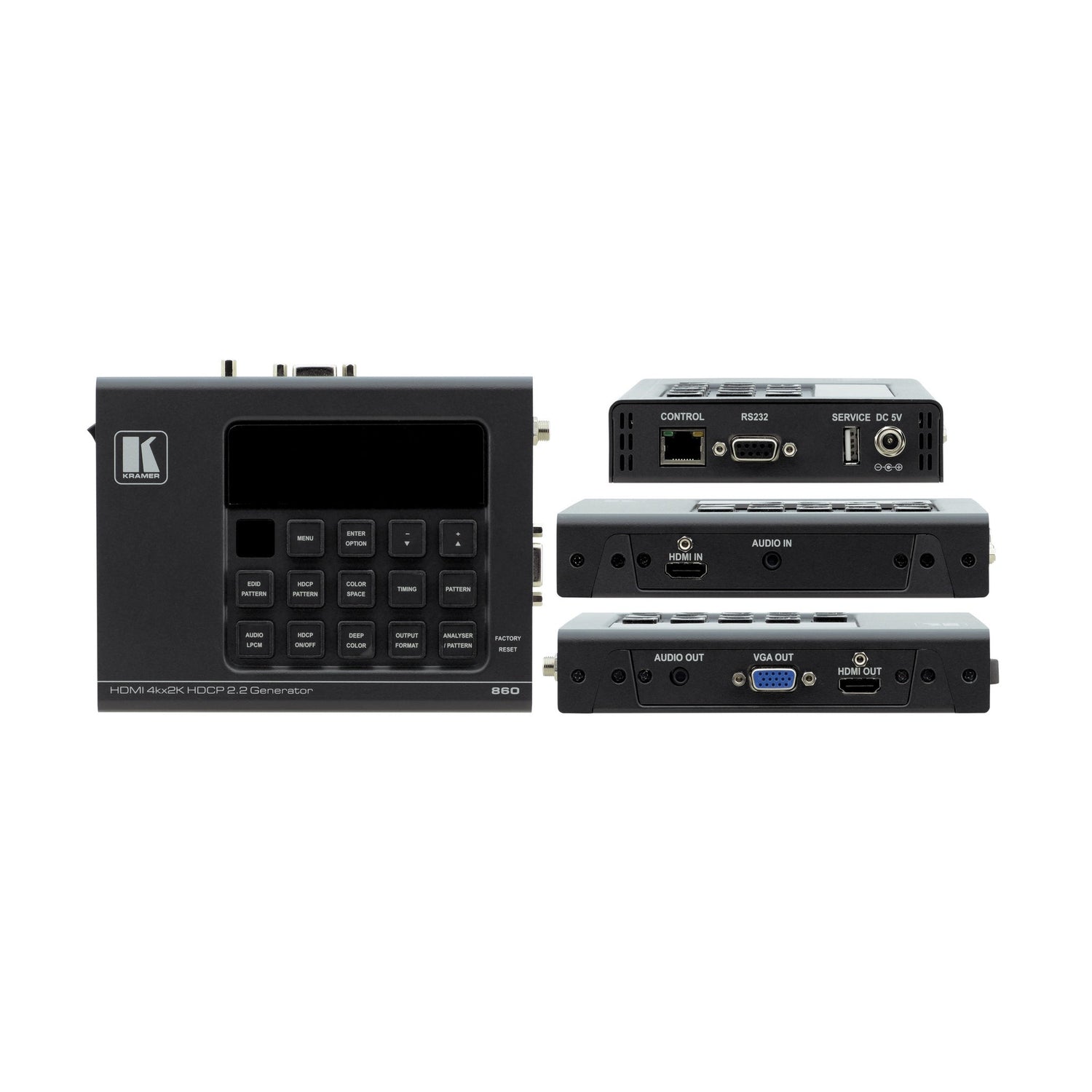

Kramer 860 4K60 4:4:4 HDMI 18 Gbps Signal Generator and Analyzer
The Kramer 860 is a professional handheld tool for AV installers, engineers, and R&D teams. With a built-in HDMI 2.0 source and sink, plus VGA, HDMI, audio, USB, Ethernet, RS‑232, and IR interfaces, it provides comprehensive testing and analysis of HDMI 18 Gbps (4K@60 4:4:4) signal paths.
It includes 88 preset resolutions and 55 test patterns, HDR10/Vision compatibility, EDID/HDCP packet monitoring/control, and audio tone generation. A front-panel OLED, remote interface options, and rugged protective case make it highly portable and field-ready.
Key Features
- Resolution & Bandwidth: Up to 4K@60 4:4:4 with 18 Gbps HDMI 2.0 support
- Test Patterns: 88 resolutions, 55 patterns, plus user-uploaded patterns
- Audio: External stereo input/output and 8‑channel LPCM tone generator
- Signal Analysis: EDID/HDCP (1.4/2.2) packet capture, SCDC, HDR bypass support

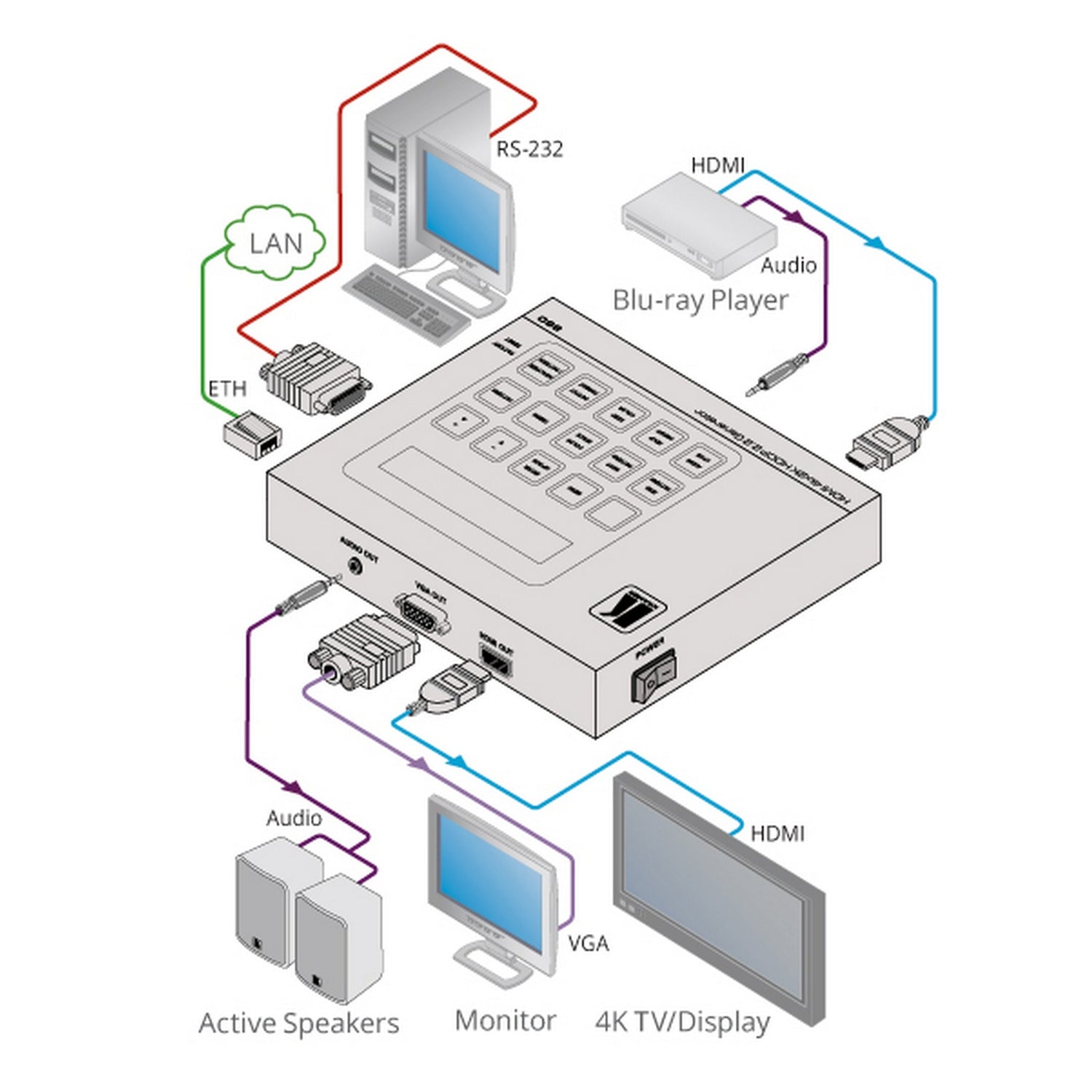

- Interfaces: HDMI I/O, VGA out, USB, Ethernet, RS‑232, IR
- Control: Front-panel buttons, OLED display, RS‑232, Telnet, IR remote
- Ruggedness: Waterproof, padded case included
- Power: DC 5 V, 1.6 A adapter (includes DC 5.2 V/4 A power supply)
Technical Specifications
- Weight: ~1.76 lb (0.8 kg)
- Dimensions: 6.5″ × 5.2″ × 1.2″ (16.5 × 13.2 × 3.0 cm)
- Max Resolution: 4096×2160 at 60 Hz, 8‑bit
- Data Rate: Up to 18 Gbps (6 Gbps/channel)
- Power: 5 V DC, 1.6 A
- Operating Temp: 32-104 °F (0-40 °C); 20-90 % RH non-condensing
- ESD Protection: ±8 kV air, ±4 kV contact

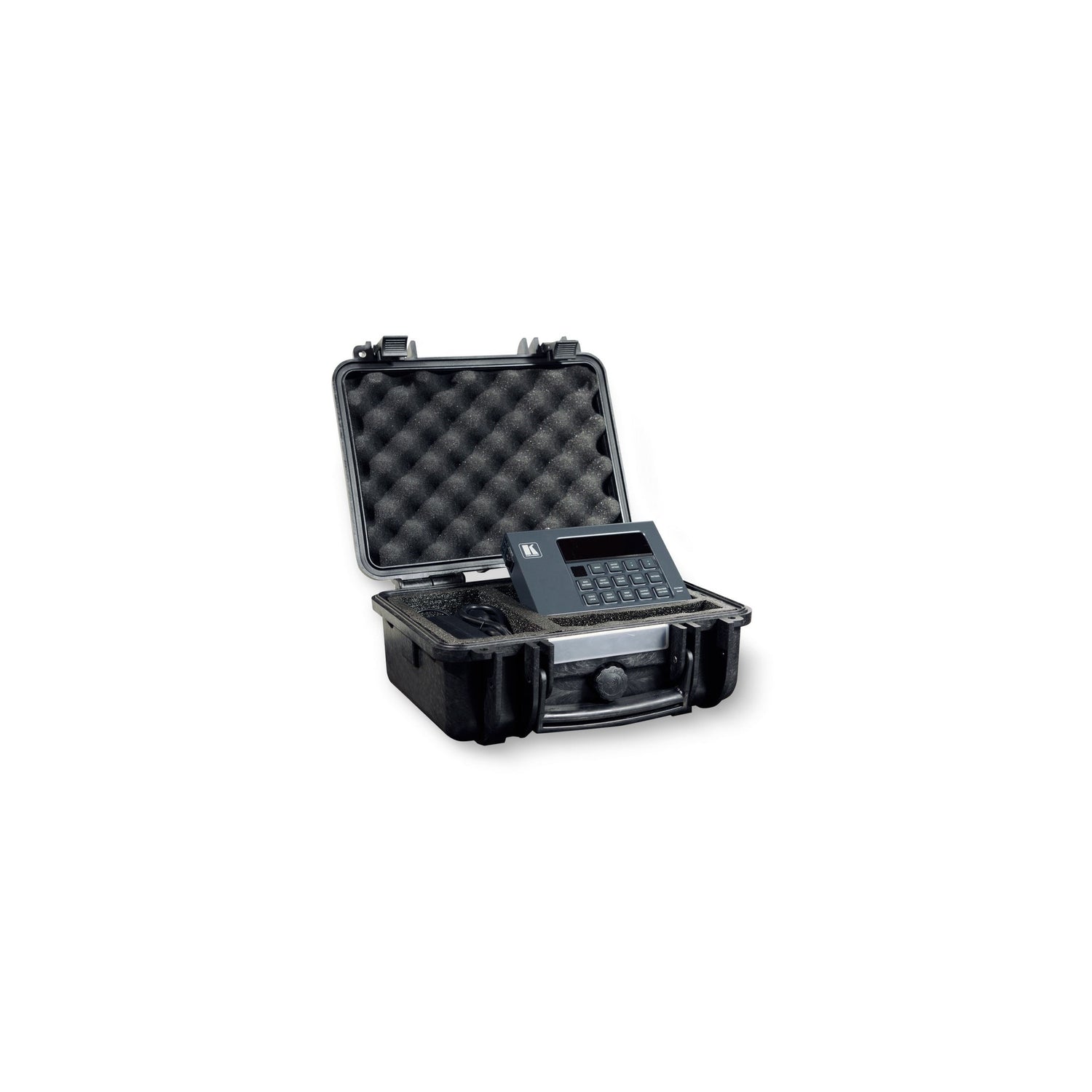

- Case: Rugged waterproof protective case
What's Included
- 860 signal generator/analyzer unit
- Infrared remote control
- Power adapter
- Padded waterproof hard case
