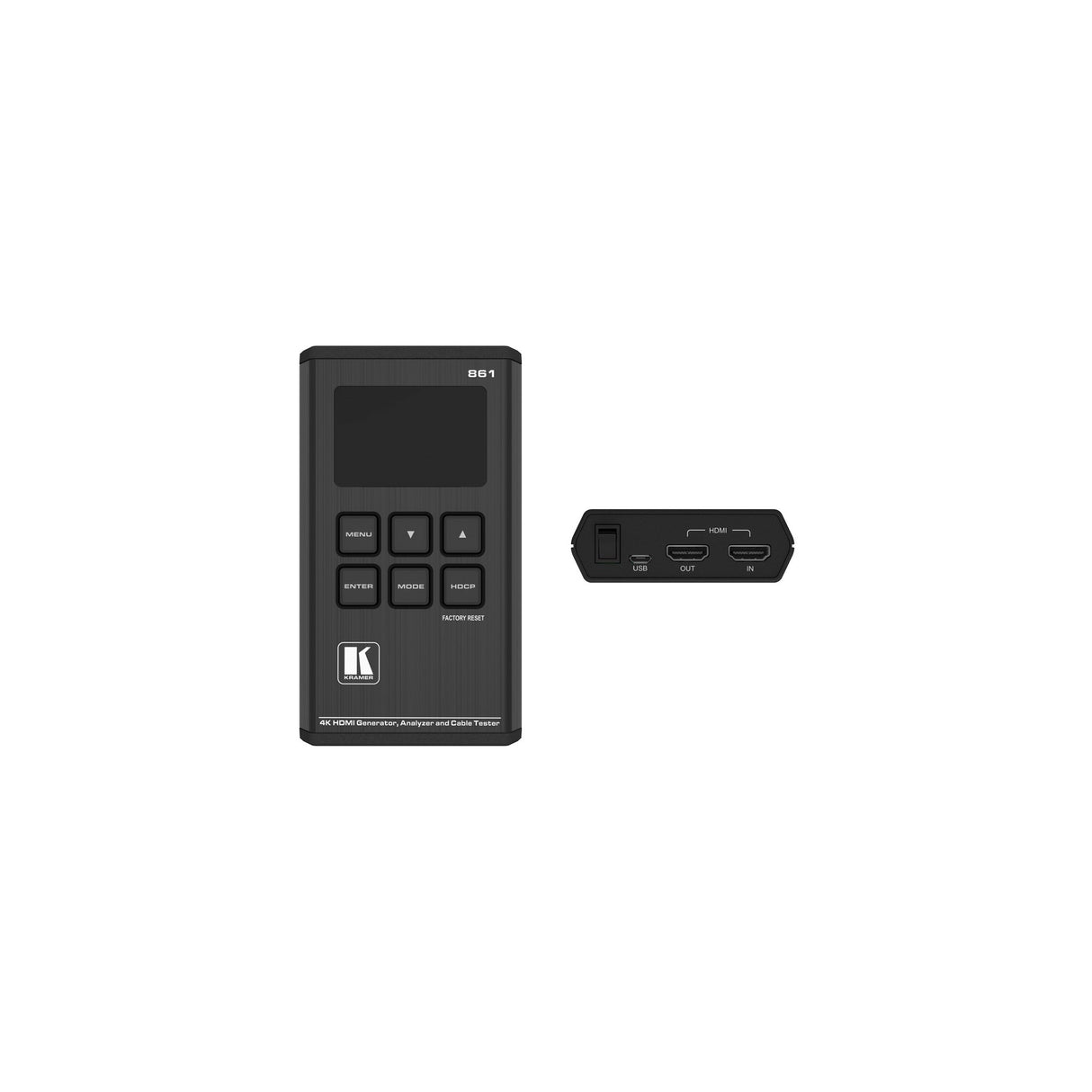

Kramer 861 18G 4K HDR Pocket Signal Generator, Analyzer and Cable Tester

861 HDMI 18G (6G per graphic channel) 4K HDR Pocket Signal Generator, Analyzer and Cable Tester is an advanced and handy tool for generating, testing and verifying the signal path within your (up to) 4K@60Hz (4:4:4) HDMI 2.0/HDCP 2.2 ecosystem. With 23 built-in resolutions, 11 test patterns and over a dozen types of AV analysis functions, this unit provides an enormous range of testing options. HDMI data packet, EDID and HDCP analysis are supported along with EDID upload and emulation. Additionally, the Status and Control Data Channel (SCDC) can be monitored, enabling HDMI 18G signal detection and analysis. Up to 8 channels of LPCM audio test tones can be generated with a wide range of frequencies and audio levels.

Key Features

• Max. Resolution - 4K@60Hz (4:4:4)
• Standards Compliance - HDR10, HDMI 2.0, DVI 1.0 and HDCP 1.4/2.2
• Data Path Analysis - Source and sink up to 18G HDMI signals (6G per graphic channel)
• HDMI Data Packet Analysis
• HDCP v1.4 and v2.2 Analysis & Control
• EDID Data Analysis & Emulation - Including SCDC
• HDR Bypass & Analysis Support
• HDMI Timing Generation - Up to 4096-2160 @60Hz (4:4:4), 8-bit
• Supported Output Resolutions - 480p, 576p, 720p@25/30/50/60, 1080i@50/60, 1080p@24/25/30/50/60,
• 4K(3840-2160p)@24/25/30/50/60, 4K(4096-2160p)@24/25/30/50/60
• LPCM Sinewave Audio Generation - Up to 8 channels
• Cable Tester - Suitable for 4K HDMI cables. Includes tests for 5V, CEC and hotplug detection support
• OLED Display - With rapid updates of current status information
• Detailed OSD - For settings and informational displays
• USB Firmware Update

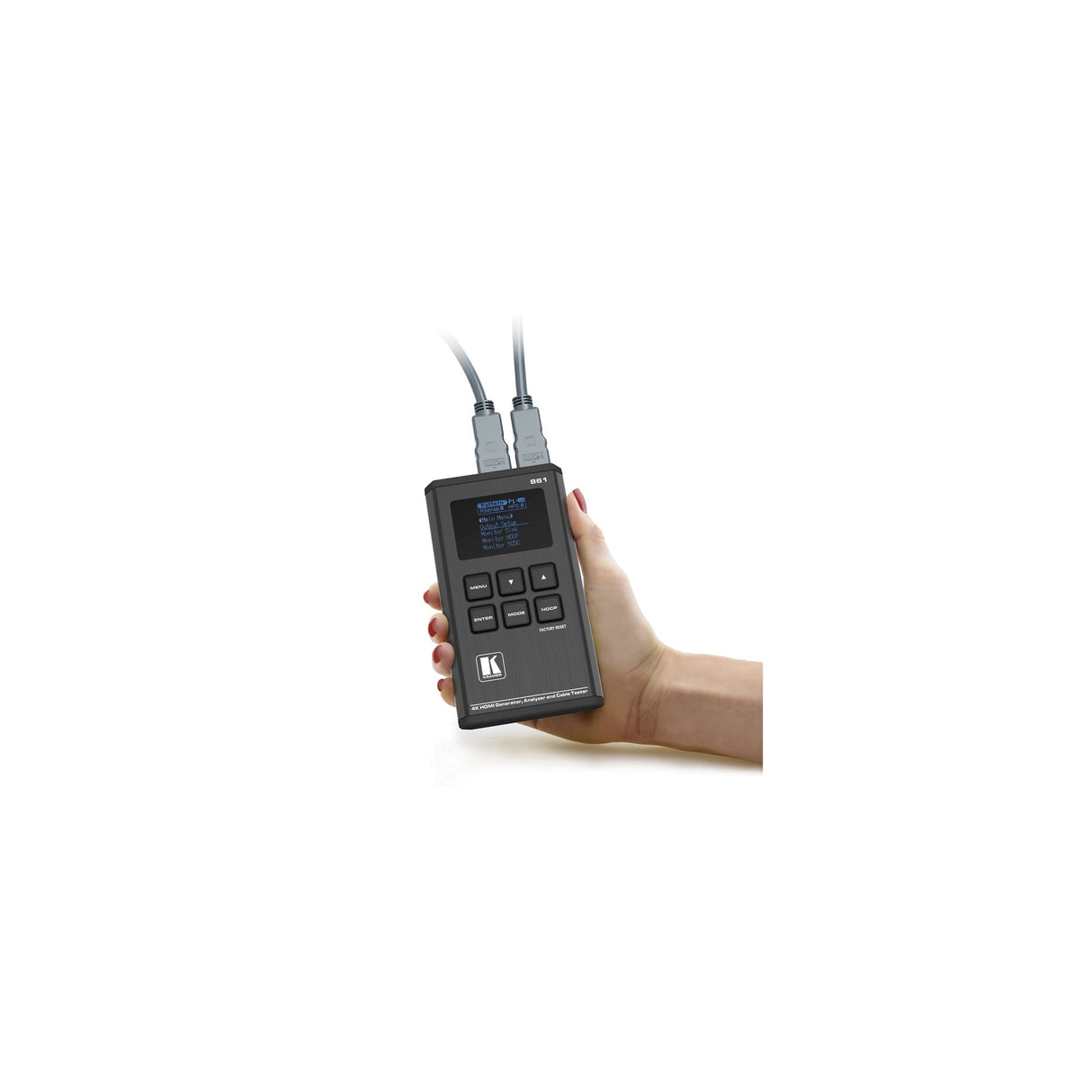

• Portable and Durable
• Power Saving Features

Technical Specifications

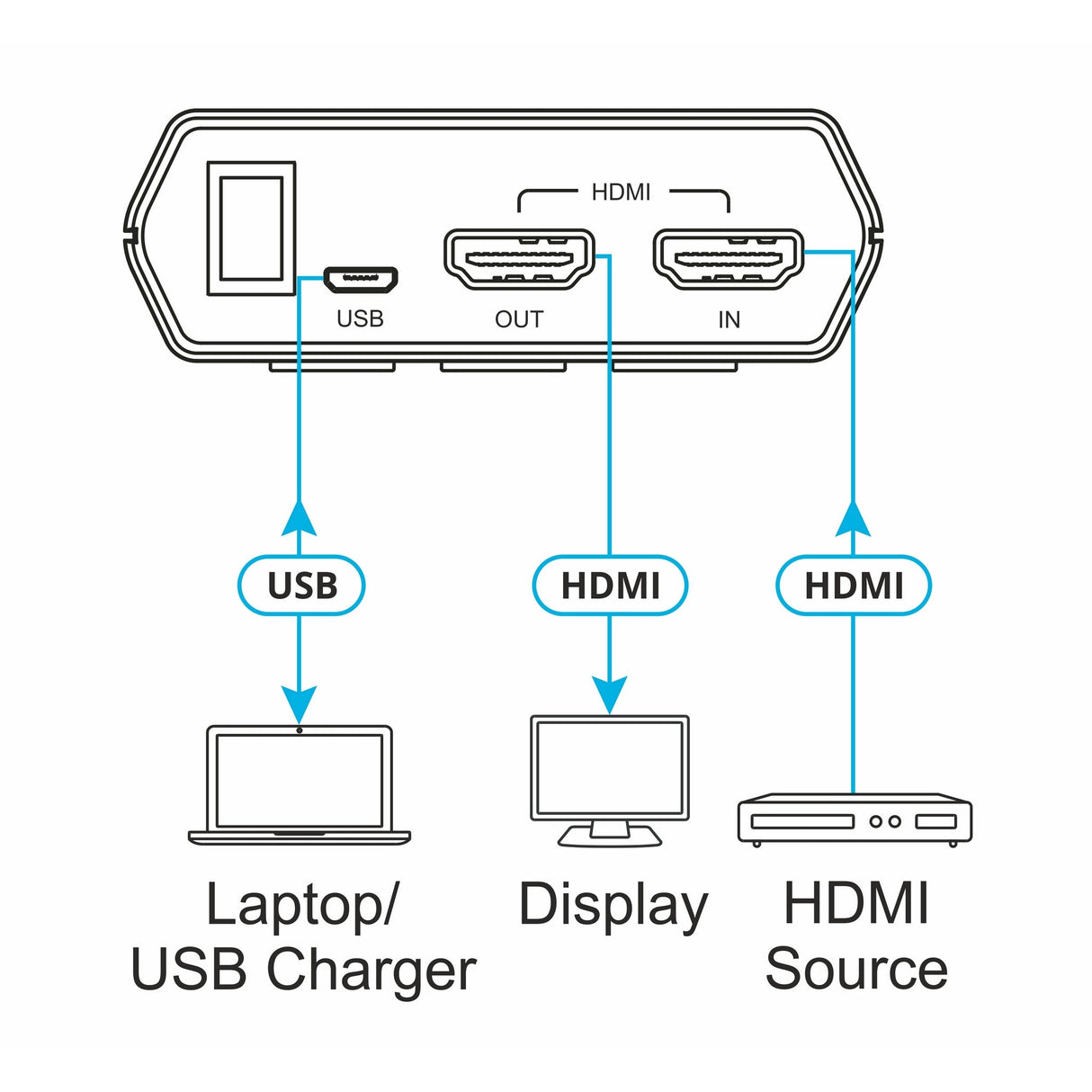

INPUTS
1 HDMI: On a female HDMI connector
OUTPUTS
1 HDMI: On a female HDMI connector
PORTS
1 USB: On a female Micro-B connector
VIDEO
Max Data Rate: 18Gbps (6Gbps per graphic channel)
Max Resolution: 4K UHD @60Hz (4:4:4, 8-bit)
Supported Output Resolutions: 480p@59Hz, 576p@50, 720p@25/30/50/60, 1080i@50/60, 1080p@24/25/30/50/60, 4K(3840-2160p)@24/25/30/50/60, 4K(4096-2160p)@24/25/30/50/60
Standards Compliance: HDMI 2.0 and HDCP 1.4, 2.2
AUDIO (EMBEDDED) OUTPUT SUPPORT
LPCM 2.0, 5.1, and 7.1
POWER
Source: 5V, 2.1A USB Power
Consumption: 4.7W
ENVIRONMENTAL CONDITIONS
Operating Temperature: 0 to +40C (32 to 104F)
Storage Temperature: -20 to +50C (-40 to 158F)
Humidity: 20% to 90%, RH non-condensing
REGULATORY
Safety: CE, FCC
Environmental: RoHs, WEEE
ESD Protection: Human body model - -12kV (Air Discharge), -8kV (Contact Discharge)
ENCLOSURE
Type: Metal
Cooling: Convection Ventilation
ACCESSORIES

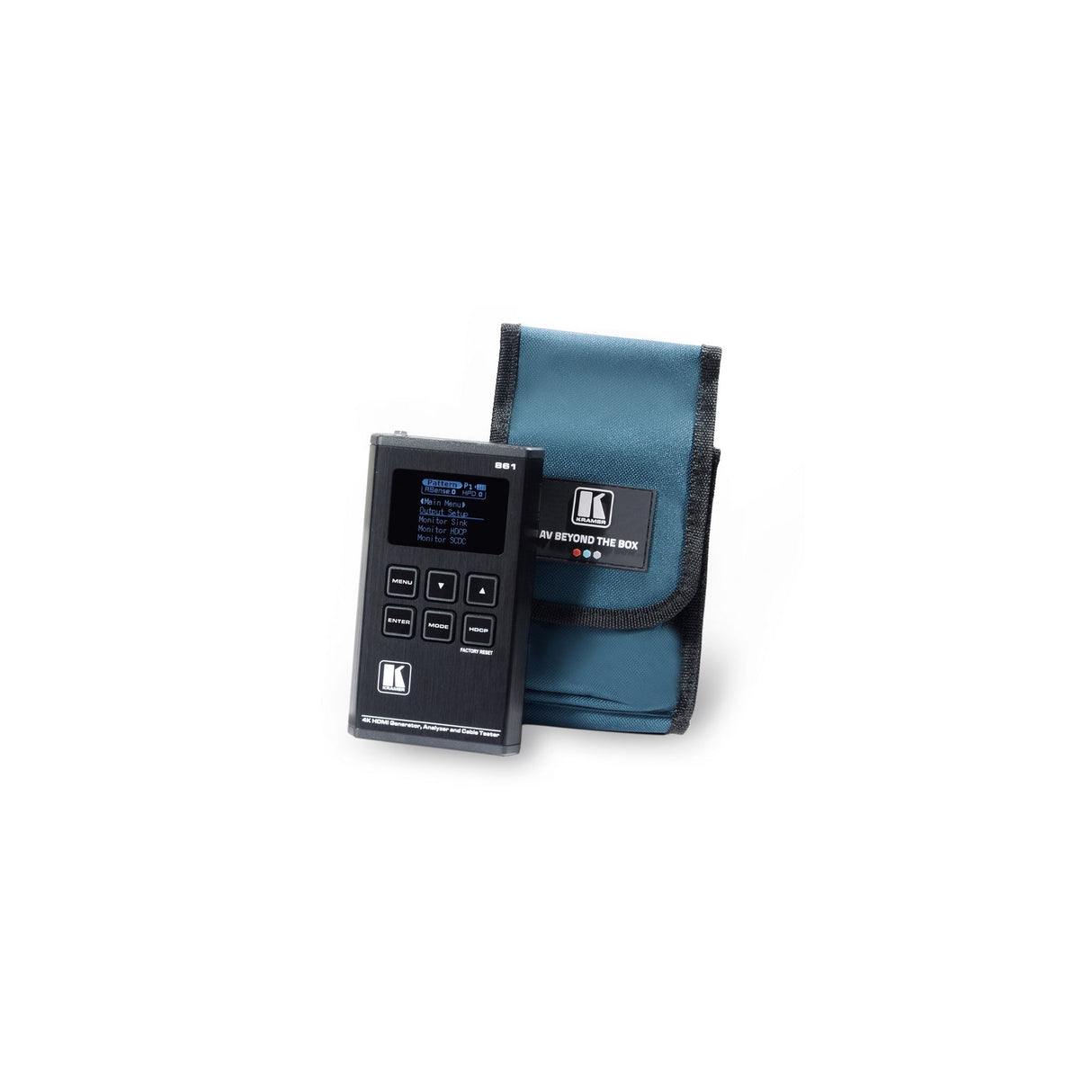

Included: Micro-B USB cable, 1 C-HM/HM/PICO/BK-3 cable, 1 lithium-ion 3.6V/3200maH rechargeable battery, belt pouch
PRODUCT DIMENSION
8.00cm x 14.00cm x 2.70cm (3.15" x 5.51" x 1.06" ) W, D, H
PRODUCT WEIGHT
0.3kg (0.6lbs) approx.
SHIPPING DIMENSION
24.80cm x 18.80cm x 5.40cm (9.76" x 7.40" x 2.13" ) W, D, H
SHIPPING WEIGHT
0.6kg (1.4lbs) approx.
