Condition: New

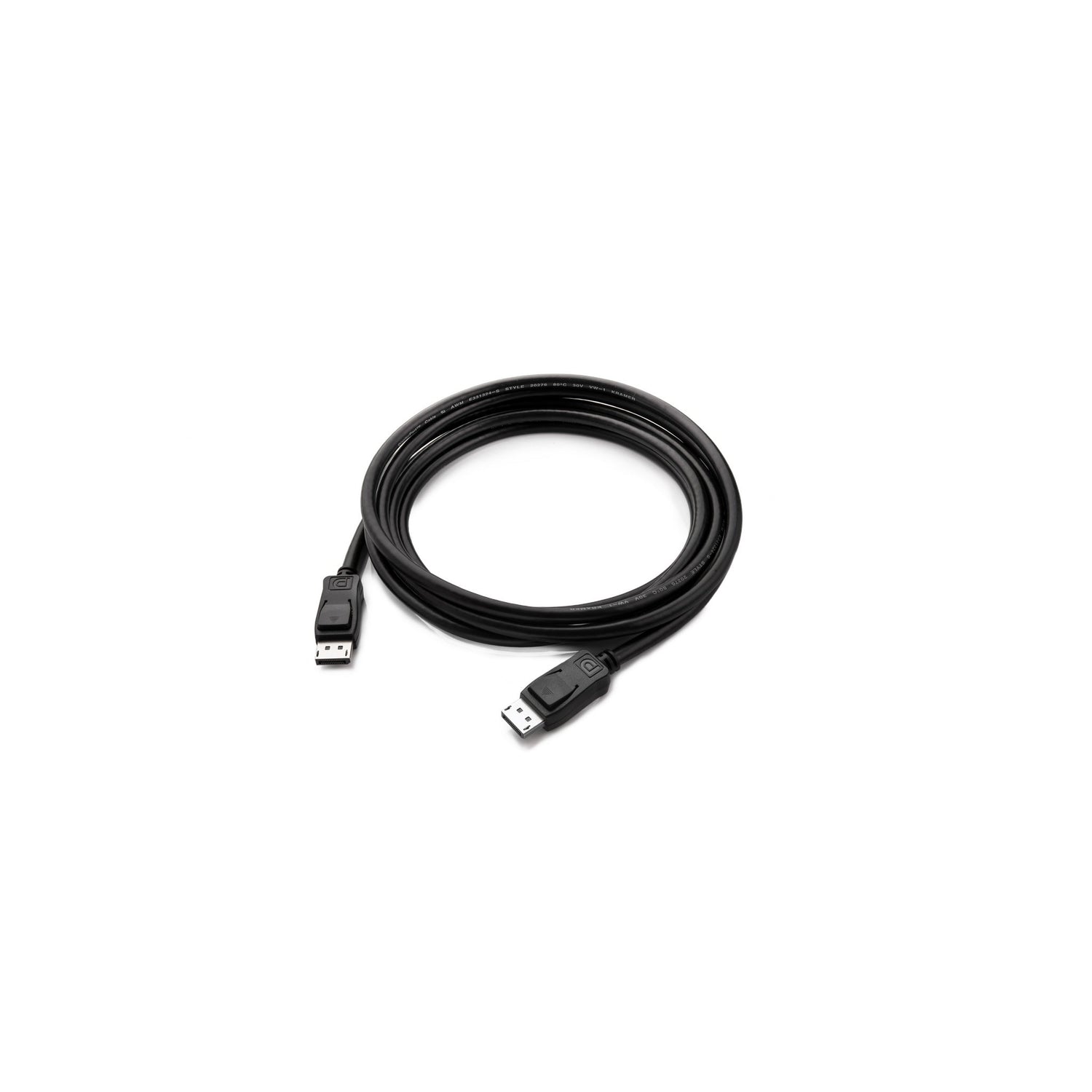

Kramer C-DPU 8K DisplayPort Cable
The Kramer C-DPU is a professional-grade DisplayPort cable engineered for ultra-high-definition video transmission. It supports the DisplayPort 1.4 standard and delivers crystal-clear visuals up to 8K@60 Hz (4:4:4), making it ideal for demanding Pro AV installations.
With HBR3 (High Bit Rate 3) bandwidth of up to 32.4 Gbps, this cable ensures seamless, high-fidelity signal delivery. Its triple-shielded construction eliminates RF and EM interference, while molded latching connectors provide secure, long-term reliability.
Designed for flexibility, the C-DPU supports MST daisy-chaining, DPCP & HDCP 2.2 content protection, and is backward compatible with DisplayPort 1.2 and 1.1. Available in three lengths to suit any setup.
Key Features
- Resolution Support: Up to 8K@60 Hz (4:4:4)
- Bandwidth: HBR3 up to 32.4 Gbps (8.1 Gbps per lane)
- Content Protection: DPCP & HDCP 2.2 compliant
- Daisy Chain: MST (Multi-Stream Transport) support
- Compression: Display Stream Compression 1.2 (DSC)
- Connectors: Molded latching DisplayPort (M) with gold-plated pins & nickel shell
- Construction: Triple shielding for superior noise immunity
- Compatibility: Backward compatible with DisplayPort 1.2 & 1.1
- Lengths Available: 0.90 m, 1.80 m, 3.00 m
Technical Specifications
- Supported Resolutions: All VESA resolutions up to 8K@60 Hz (4:4:4)
- Max. Data Rate: 32.4 Gbps (8.1 Gbps per channel)
- Connector Type: DisplayPort (M) male
- Shielding: Triple shielded
- Conductor Gauge: 28 AWG
- Jacket: PVC, Black; à 7.3 ± 0.19 mm; 0.77 mm avg. thickness
- Voltage Rating: 30 V
- Temperature Rating: 80 °C
- Dielectric Strength: AC 750 V/1 sec min
- Insulation Resistance: ℠100 MΩ/km at 20 °C
- Conductor Resistance: ⤠237.3 Ω/km at 20 °C
- Differential Impedance: 100 ± 5 Ω
- Skew: Intra-pair 50 ps/4 m; Inter-pair 2 ns/4 m
- Standards Compliance: VW-1, RoHS 2
Available Variations
- C-DPU-3: 0.90 m (3 ft) ā 8K@60 Hz
- C-DPU-6: 1.80 m (6 ft) ā 8K@60 Hz
- C-DPU-10: 3.00 m (10 ft) ā 8K@60 Hz
Whatās Included
- Kramer C-DPU 8K DisplayPort Cable (selected length)
