Kramer AAD-OUT2-F16/STANDALONE 2-Channel Analog and Digital Audio Output Card

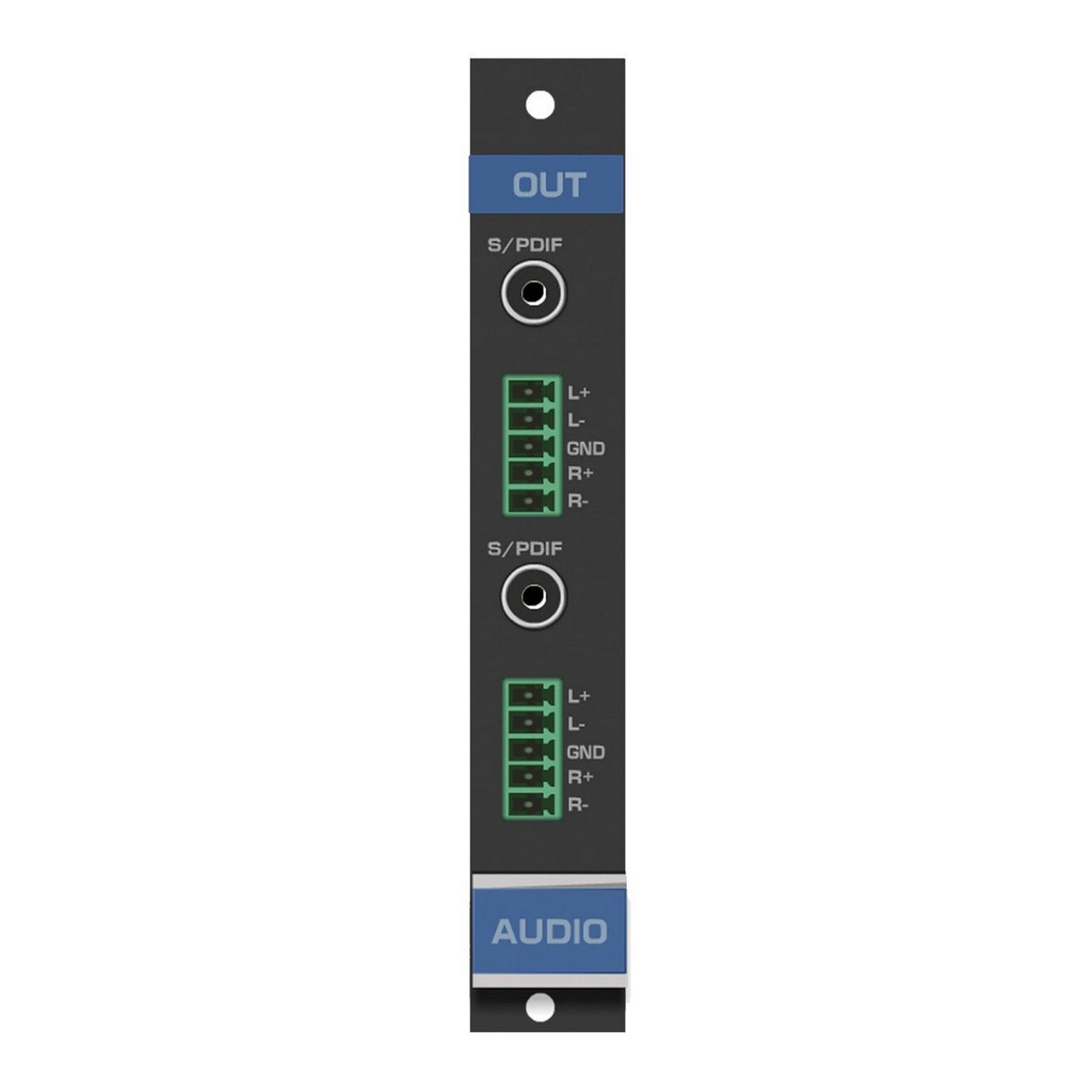

AAD-OUT2-F16 is a two-channel analog and digital output card for the VS-1616 Series Modular Multi-Format Digital Matrix Switchers. The AAD-OUT2-F16 outputs two analog and digital signals from the chassis.
Key Features
- Balanced Analog Audio over Terminal Block Connector
- S/PDIF Digital Audio over RCA Connector
Technical Specifications
PORTS
2 S/PDIF (digital audio) on RCA connectors, 2 balanced audio stereo (analog audio) on 5-pin terminal blocks
TOTAL BANDWIDTH
Analog (-3db): >100kHz, Digital: 32kHz - 192kHz sample frequency
POWER CONSUMPTION
5.8W
OPERATING TEMPERATURE
0 to +40C (32 to 104F)
STORAGE TEMPERATURE
-40 to +70C (-40 to 158F)
HUMIDITY
10% to 90%, RHL non-condensing
SAFETY REGULATORY COMPLIANCE
CE
ENVIRONMENTAL REGULATORY COMPLIANCE
Complies with appropriate requirements of RoHs and WEEE
PRODUCT DIMENSIONS
19.00cm x 13.00cm x 2.00cm (7.48" x 5.12" x 0.79" ) W, D, H
PRODUCT WEIGHT
0.2kg (0.4lbs) approx.
SHIPPING DIMENSIONS
34.50cm x 16.50cm x 5.20cm (13.58" x 6.50" x 2.05" ) W, D, H
SHIPPING WEIGHT
0.3kg (0.6lbs) approx.
