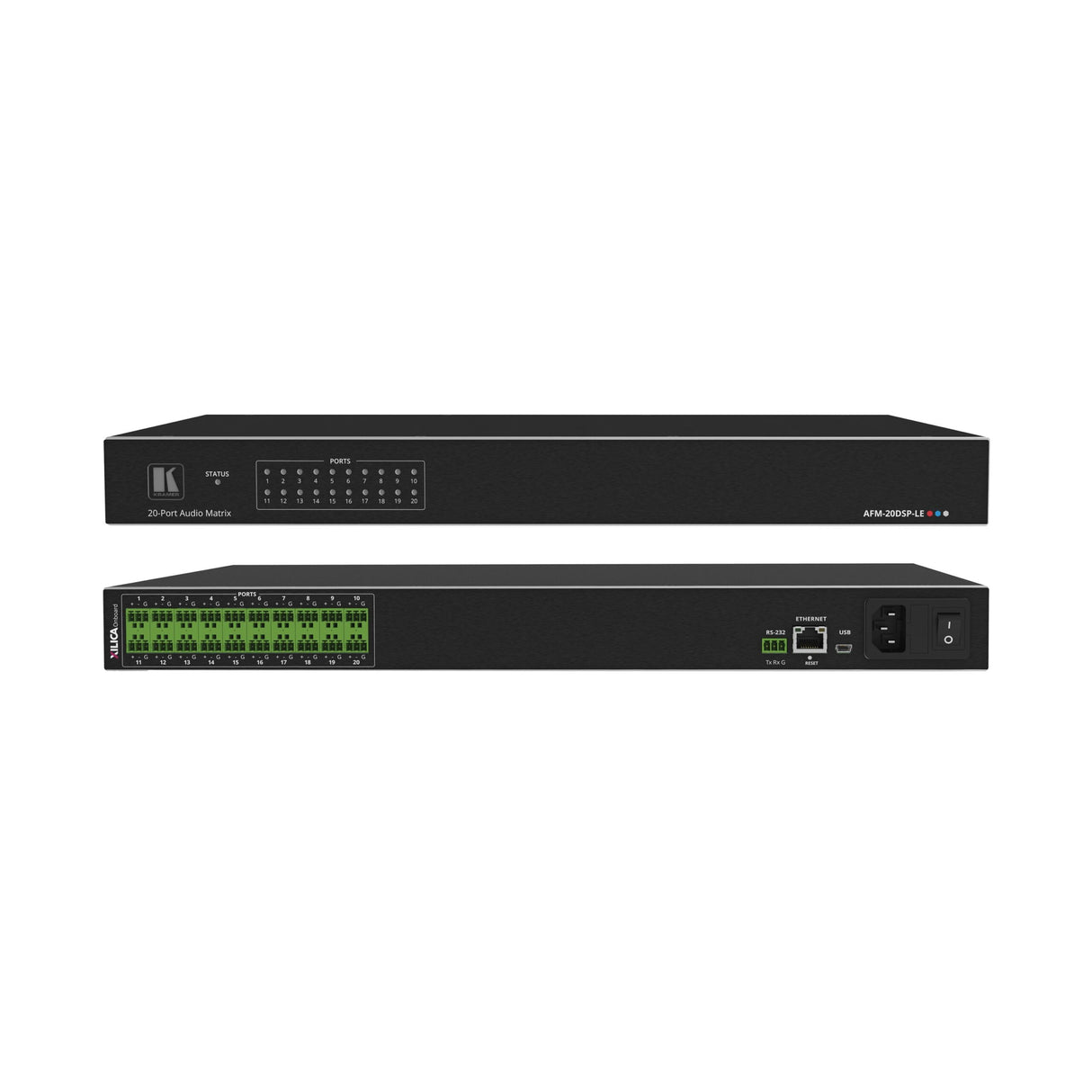

Kramer AFM-20DSP-LE 20-Port Audio Matrix with DSP
AFM-20DSP-LE is a member of the Kramer XSPerience family of DSP products. AFM-20DSP-LE is an advanced, professional audio matrix switcher with 20 analog ports that can be configured as inputs or outputs according to preset I/O configurations. AFM-20DSP-LE includes multi-channel DSP and a comprehensive and user-friendly graphic interface that makes configuring every detail of your audio system intuitive and easy.
Key Features
- Multi-Channel DSP
- Intuitive and Comprehensive Configuration and Control
Technical Specifications
I/O
20 Balanced Mono Audio: On 3-pin terminal blocks
PORTS
1 USB
On a female mini USB-A connector
1 RS-232
On a 3-pin terminal block
1 Ethernet
On an RJ-45 female connector
USER INTERFACE
Front Panel LEDs
1 status, 20 analog audio ports
CONTROL RS-232
Baud Rate
115200
SUPPORTED WEB BROWSERS
Windows
Chrome
POWER
Consumption
340mA
Source
100-240V AC 50/60Hz
ENVIRONMENTAL CONDITIONS
Operating Temperature
0 to +40C (32 to 104F)
Storage Temperature
-40 to +70C (-40 to 158F)
Humidity
10% to 90%, RHL non-condensing
REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
Safety
CE
Environmental
RoHs, WEEE
ENCLOSURE
Size
19ā 1U
Type
Aluminum
Cooling
Fans
ACCESSORIES
Included
Power cord
PRODUCT DIMENSIONS
43.64cm x 23.72cm x 4.36cm (17.18" x 9.34" x 1.72" ) W, D, H
PRODUCT WEIGHT
1.6kg (3.4lbs) approx.
SHIPPING DIMENSIONS
52.50cm x 33.00cm x 10.70cm (20.67" x 12.99" x 4.21" ) W, D, H
SHIPPING WEIGHT
2.7kg (6.0lbs) approx.
