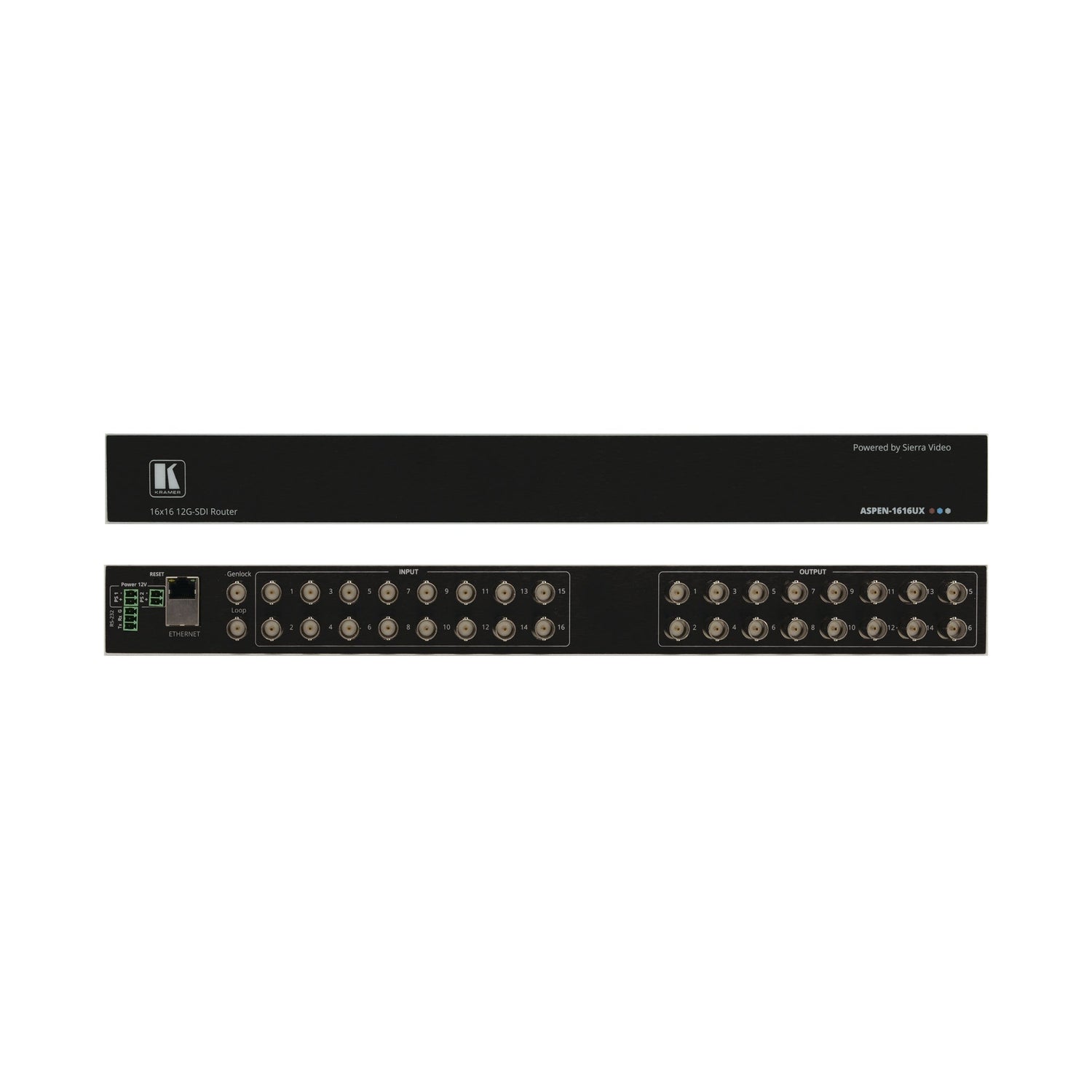

Kramer Aspen 1616UX 16x16 12G‑SDI Matrix Switcher
Kramer | SKU: KRMR-ASPEN1616UX-2000018490
1
of
2
Loading...
$2,68800
Free Shipping
Unit price
/
Unavailable
More finance options:
Estimated Shipping Widget will be displayed here!
Enjoy free standard shipping on all orders over $99. Please note that this offer excludes oversized, overweight, special orders, custom products, and items with minimal profitability.
Most orders placed before 10:00am PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Most orders placed before 10:00am PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Kramer ASPEN‑1616UX 16×16 12G‑SDI Matrix Switcher
The Kramer ASPEN‑1616UX is a high‑performance 16×16 SDI matrix switcher featuring full 12G support, allowing seamless switching of SD, HD, 3G, 6G, and 12G SDI signals up to 4K@60 Hz. Ideal for broadcast, AV distribution, and production environments, it ensures long‑distance transmission through Kramer’s Equalization & reKlocking™ technology.
Control the unit via Ethernet/web interface or RS‑232, store up to 8 presets, and enjoy clean genlock switching with dedicated analog genlock support. Its compact 1U rack form factor houses an aluminum chassis with efficient fan cooling.
Key Features
- SDI I/O: 16 × 12G‑SDI inputs and outputs (BNC, 75 Ω)
- Genlock: Dedicated BNC input + loop, with clean switching
- Signal Standards: 270 Mbps-12 Gbps (SD-12G SDI)
- Max Resolution: 4K@60 Hz (4:2:2, 30 bpp)
- Equalization & reKlocking™ extends cable reach up to 300 m (SD), 80 m (12G)
- Control: Ethernet/web UI, RS‑232, API, firmware updates
- Presets: 8 programmable switch configurations
- Power: 12 V DC, 1.35 A (included adapter)
- Cooling: Aluminum 1U rack chassis, fan‑cooled
- Compliance: CE, RoHS, WEEE
Technical Specifications
- Dimensions: 17.18″ × 3.94″ × 1.72″ (43.64 × 10.00 × 4.36 cm)
- Net Weight: 2.1 lb (1.0 kg); Shipping: 4.1 lb (1.9 kg)
- Power: 12 V DC @ 1.35 A
- Environment: 0-40 °C; -40-70 °C storage; 10-90% RH non‑condensing
- Rack Size: 1U (1.72″ H)
What’s Included
- 1 × Kramer ASPEN‑1616UX unit
- 1 × 12 V DC power adapter
- Rack mounting ears
