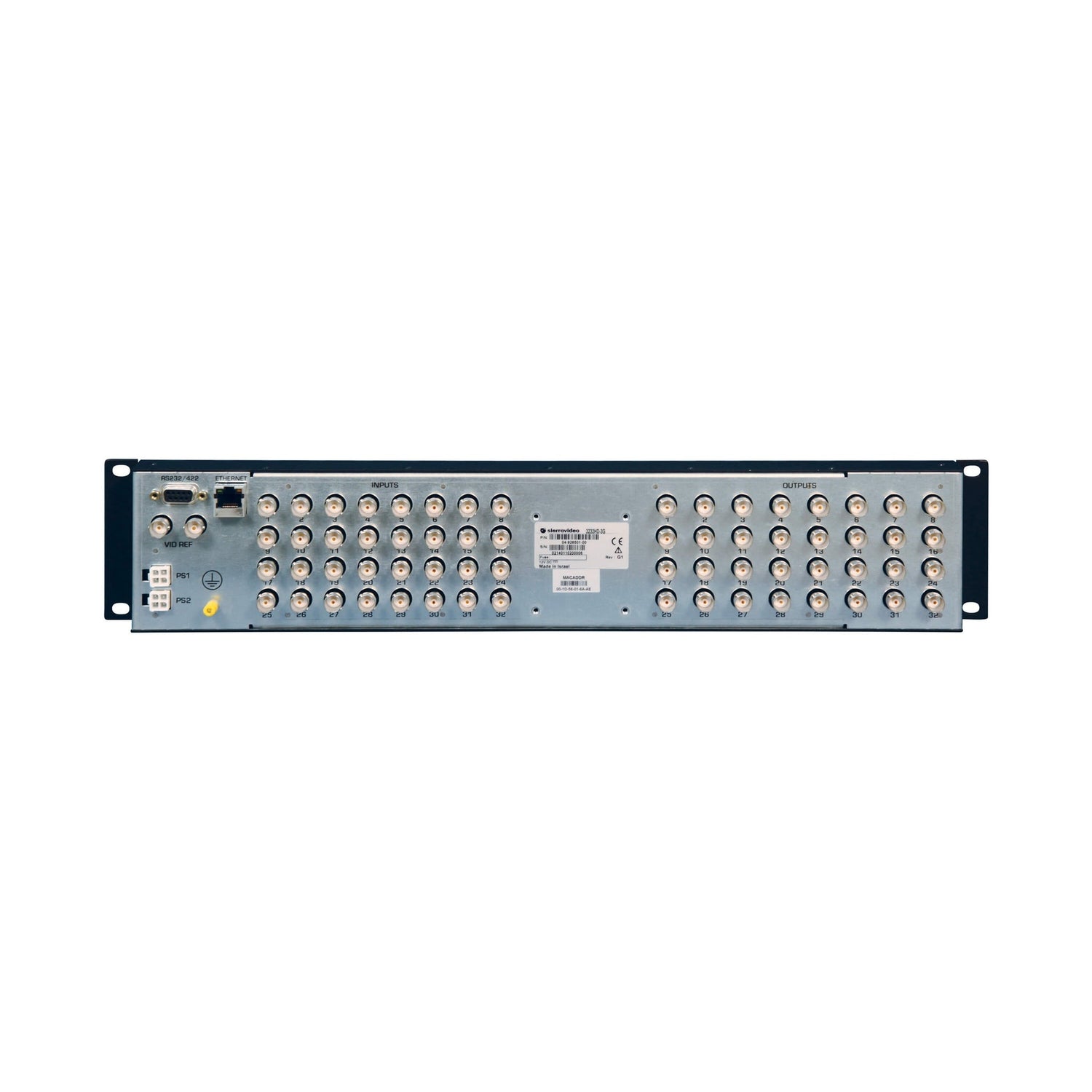

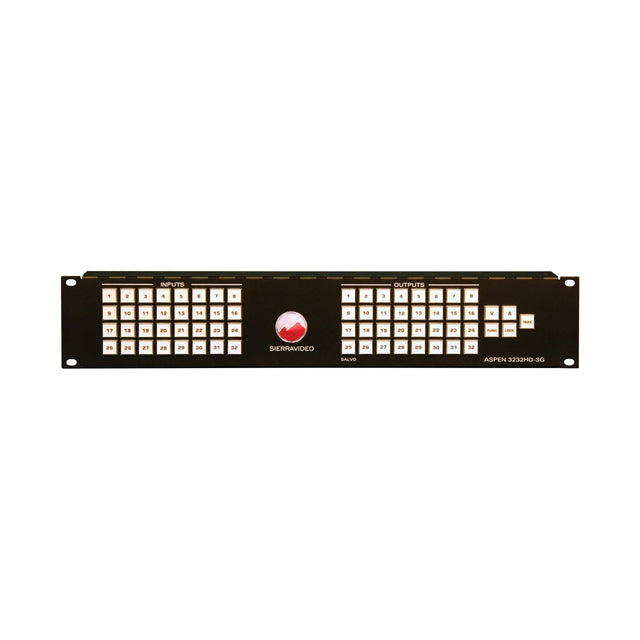

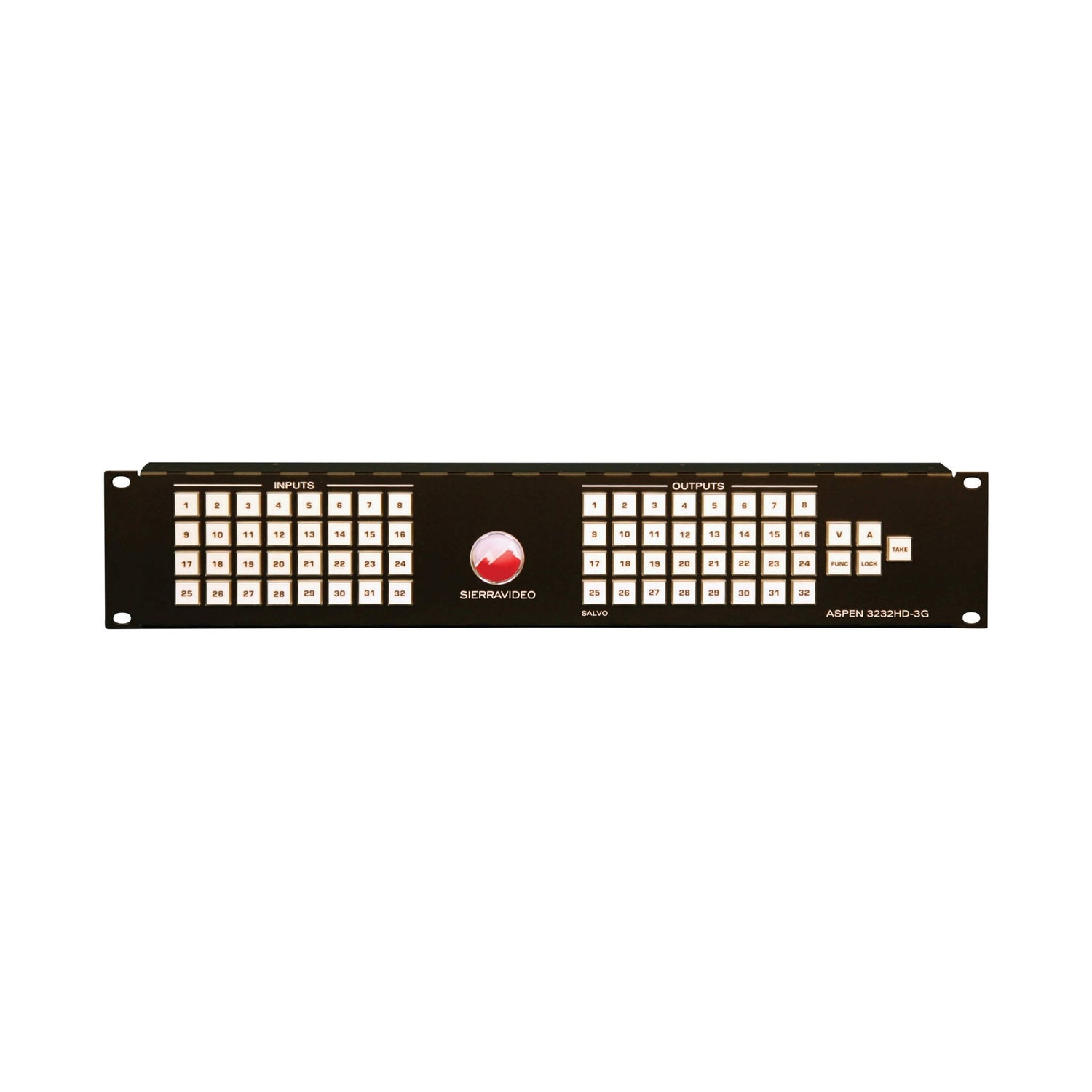

Kramer Aspen 3232HD‑3G 32×32 3G‑SDI Matrix Switcher
The Aspen 3232HD‑3G is a compact 2‑RU SDI matrix router supporting 32 input/output channels across SD‑SDI, HD‑SDI, and 3G‑SDI formats. It provides reliable routing for broadcast, AV, and production environments.
Featuring Kramer’s Equalization & Re‑clocking technology, it ensures clean signal transmission up to 155 m at 3G speeds. Control options include front-panel buttons, Ethernet/web interface, and RS‑232/422, with support for presets and remote automation.
Key Features
- I/O: 32 × 3G‑SDI BNC ports
- Formats: SD-SDI, HD-SDI, 3G-SDI, DVB-ASI
- Max Data Rate: 2.97 Gbps
- Equalization & Re-clocking: Extends cable runs—up to 155 m at 3G
- Genlock: Loop-through analog input, clean switching
- Latency: <1 frame
- Control: Front-panel, Ethernet/web GUI, RS‑232/422, presets/salvos
- Power: 100-240VAC to 12VDC, ~18 W consumption
- Operating Range: 0-40 °C, non-condensing
- Warranty: 7 years
Technical Specifications
- Dimensions (W×D×H): 19″ × 2.5″ × 3.5″ (48.3 × 6.4 × 8.9 cm)
- Net Weight: 4 lb (1.8 kg)
- Power: External 12 V DC, ~18 W
- Warranty: 7 years (parts & labor)
- Compliance: SMPTE standards, DVB-ASI
- Connectivity: BNC, RJ‑45, DB‑9
What's Included
- 1 × Kramer Aspen 3232HD‑3G unit
- 1 × External 12 V DC power supply
- Rack-mount ears
