Kramer BC-1T-300M 985ft 1 Shielded Pair 20 AWG Mono Audio Control Bluk Cable

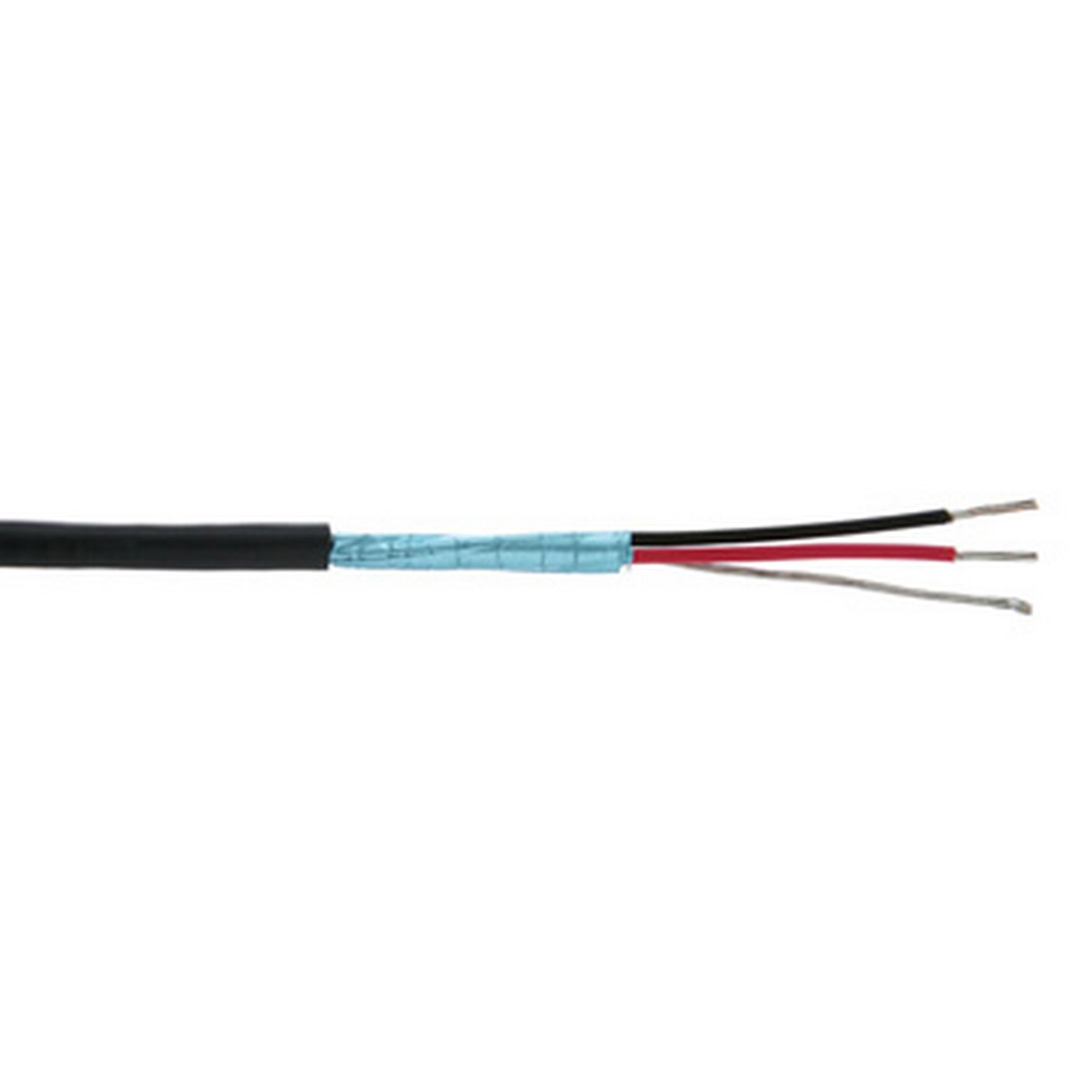

Kramer’s BC−1T is a high−quality shielded pair cable designed for routing balanced mono or unbalanced stereo mic or line level audio signals in commercial or residential AV systems.
Key Features
- Quality Construction - Conductors and drain wire are stranded 20AWG tinned copper
- Rugged and Flexible Jacket - With sequential markings every meter
- Easy Stripping - Exceptionally easy to strip because the foil shield is bonded to the inside of the jacket
- Length - Available in reels of 300m (985ft)
Technical Specifications
Conductors
20AWG, (10/30) tinned copper conductors
Insulation
PVC color coded: red, black
Drain Wire
20AWG (10/30) tinned copper (in contact with shield)
Shield
Aluminum Mylar foil 25% overlap rate
Outer Jacket Color
Dark gray with blue lettering
Conductor
0.916mm (0.036in)
PVC Insulation
0.44mm (0.071in) nominal thickness, 1.8mm diameter
Outer Jacket
5.4mm (0.213in)
Impedance
40 to 100 ohm
DC Resistance
34.6/km (10.5 ohm/1000ft)
Mutual Capacitance Conductor-Conductor
89pF/m (27pF/ft)
Mutual Capacitance Connected To Shield
161pF/m (49pF/ft)
Temperature
−20 deg to 75 deg C (−4 deg to 167 deg F)
Regulatory
UL: CL−2
CSA: C(UL) FT4
ROHS: In compliance with European directive 2002/95/IEC
