Condition: New

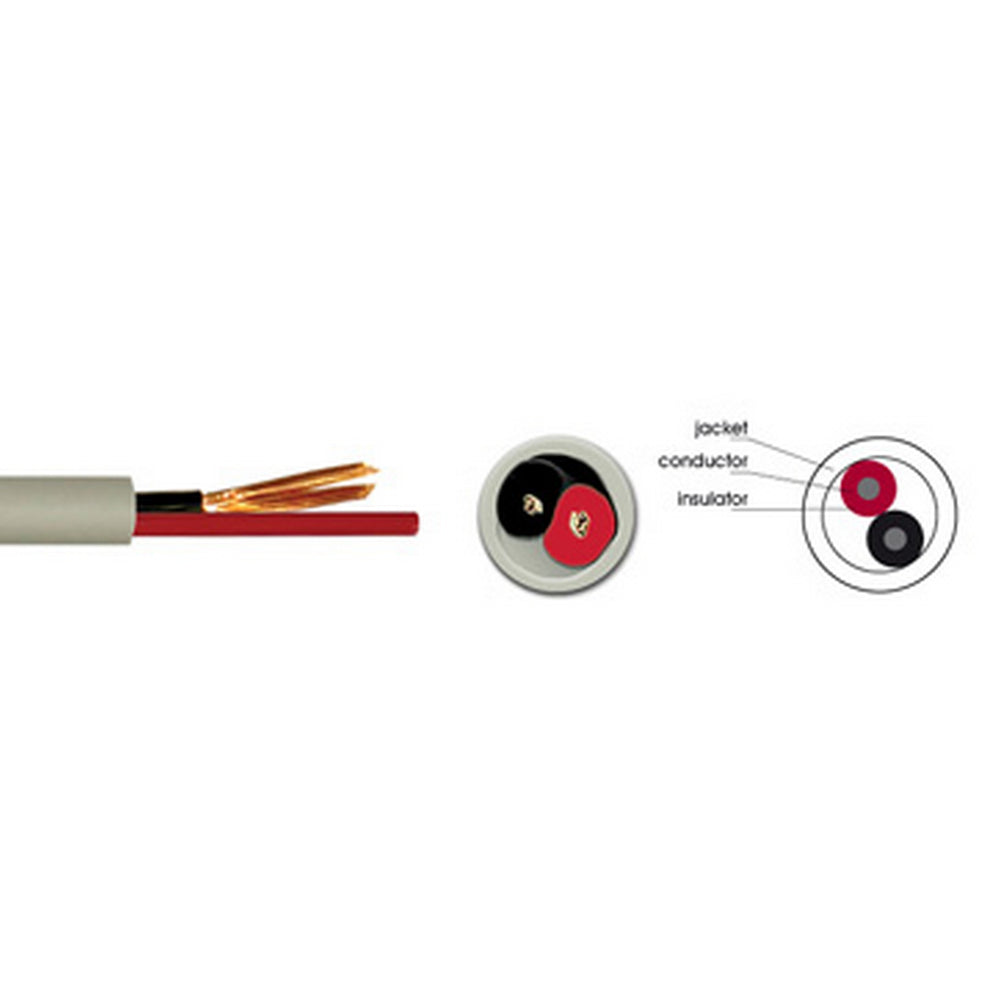

Kramer BC-2S 16 AWG Speaker Cable, 300 Meters Reel
The Kramer BC‑2S is a premium twisted-pair speaker cable reel, ideal for commercial or home AV installations. It features stranded 16 AWG bare copper conductors with color-coded jackets, flexible PVC insulation, and sequential meter markings—designed for long runs and reliable sound delivery.
Constructed with low-capacitance high strand-count design (26/30), and rated for up to 75 °C operation, this cable ensures clear, distortion-free audio with UL CM and RoHS compliance.
Key Features
- Conductor: 2‑conductor stranded 16 AWG bare copper (26/30)
- Insulation: PVC, color-coded red/black, ~0.261 mm thickness
- Jacket: Rugged PVC, sequential markings every meter
- Low capacitance: High strand count design (26/30)
- Length: 300 m (985 ft) reel
- Temperature Rating: −20 °C to 75 °C (−4 °F to 167 °F)
- Compliance: UL CM, RoHS (EU 2011/65)
- Warranty: 7 years limited (per retailers)
Technical Specifications
- Length: 300 m (985 ft)
- Center conductor diameter: 1.478 mm (0.058 in)
- Insulation diameter: 2.0 ± 0.09 mm (0.079 in), thickness ~0.261 mm
- Jacket diameter: 5.6 ± 0.19 mm (0.22 in)
- DC resistance: Max 13.7 Ω/km (4.17 Ω/1000 ft) at 20 °C
- Insulation resistance: ≥10 MΩ/km at 500 V DC, 20 °C
- Temperature range: −20 °C to 75 °C
- UL Rating: CM
- RoHS: Compliant with EU 2011/65 directive
What's Included
- One 300 m (985 ft) reel of BC‑2S 16 AWG speaker cable
