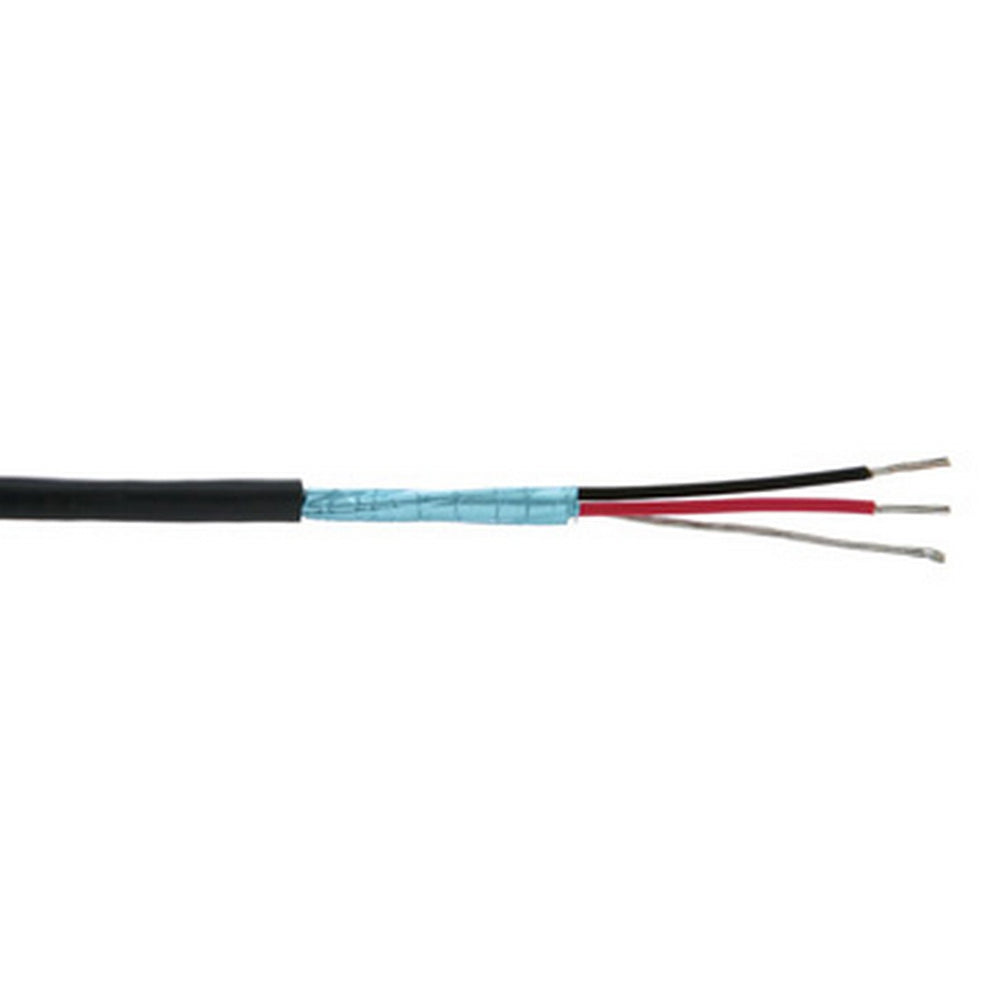

Kramer BC-2T Stereo Audio/Control Cable, 300 Meters
The Kramer BC‑2T is a premium dual-shielded bulk cable containing two balanced 20 AWG pairs—ideal for stereo mic/line audio and control applications in commercial and residential AV systems. Its bonded foil shield allows easy stripping, with a durable PVC jacket featuring sequential meter markings.
Sized for flexibility yet robust performance, this cable includes tinned copper conductors with low capacitance, rated to 75 °C, and meets UL CM, CSA FT4, and RoHS standards.
Key Features
- Conductors: 4× 20 AWG stranded tinned copper (10/30)
- Drain wire: 20 AWG tinned copper in contact with shield
- Shielding: Aluminum/Mylar foil (≥25% overlap)
- Insulation: PP/PVC color-coded red/black and green/white
- Jacket: Rugged PVC, dark gray with white meter markings
- Sequential Markings: Every meter on the jacket
- Easy Stripping: Bonded foil shield simplifies removal
- Low Mutual Capacitance: 89 pF/m (27 pF/ft) between conductors
- Temperature Rating: −20 °C to 75 °C (−4 °F to 167 °F)
- Compliance: UL CM/CL2, CSA FT4, RoHS EU 2011/65
Technical Specifications
- Length: 300 m (984 ft)
- Center Conductor Diameter: 0.916 mm (0.036 in)
- Insulation Diameter: 1.8 ± 0.09 mm (0.071 in), thickness 0.44 mm
- Jacket Diameter: 6.2 ± 0.19 mm (0.244 in)
- DC Resistance: ≤34.6 Ω/km (10.5 Ω/1000 ft)
- Mutual Capacitance: 89 pF/m (conductor-to-conductor), 161 pF/m (to shield)
- Impedance: 40–100 Ω
- Insulation Resistance: ≥100 MΩ/km at 500 VDC
- Temperature Range: −20 °C to 75 °C (−4 °F to 167 °F)
What's Included
- One 300 m (984 ft) reel of Kramer BC‑2T cable
