Kramer BC-3X2T7S 14‑Conductor Presentation/VGA Cable, 100 Meters

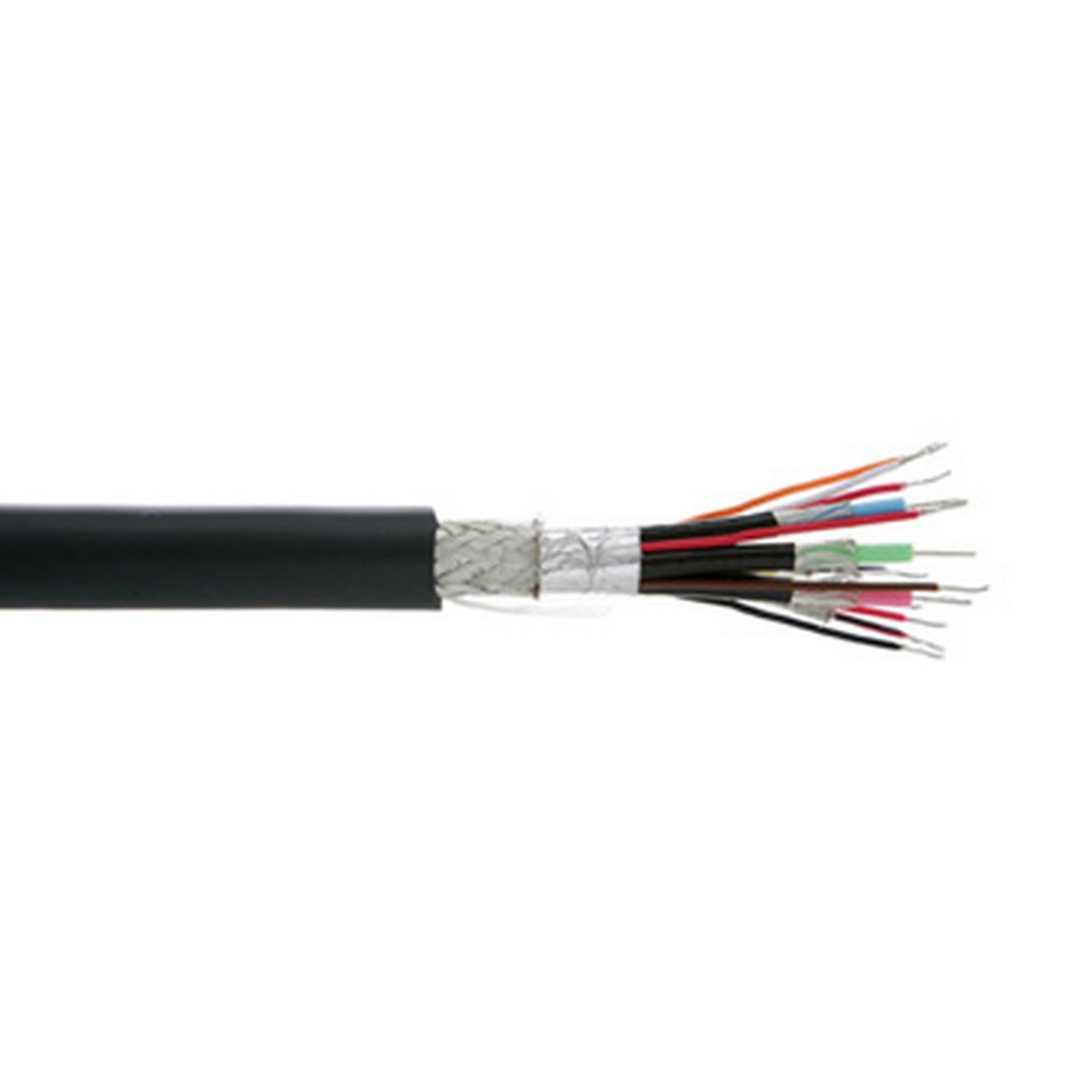

The Kramer BC‑3X2T7S is a professional-grade bulk cable designed for custom 15-pin HD (VGA/UXGA) assembly. It includes three mini-coaxes, two shielded pairs, and seven single-core strands—all in one rugged, meter-marked jacket for easy integration in AV installations.
Built with 26 AWG tinned-copper conductors and dual-layer shielding, this cable ensures steadfast signal integrity while supporting higher resolutions and longer distances than thinner-gauge alternatives. Sequential markings, a ripcord, and flexible PVC jacket make it installer-friendly.
Key Features
- Conductors: 3 mini-coax (26 AWG tinned copper), 2 shielded pairs (26 AWG), 7 single strands (26 AWG)
- Shielding: Coax – 90% spiral copper braid + aluminum Mylar; shielded pairs – 85% spiral + aluminum Mylar
- Dielectric: Foam polyethylene, color-coded (red, green, blue)
- Jacket: Black PVC with sequential meter markings and internal ripcord
- Impedance: 75 Ω
- Attenuation: –0.5 dB @ 1 MHz to –14.0 dB @ 400 MHz
- Temperature Rating: –20 °C to 75 °C (–4 °F to 167 °F)
- Certifications: UL, RoHS, CSA FT4
Technical Specifications
- Length: 100 m (328 ft)
- Center Conductor (Coax): 0.48 mm (26 AWG)
- Dielectric Diameter: 1.95 mm
- Coax Outer Diameter: 2.6 mm
- Overall Jacket Diameter: ~10 mm
- Impedance: 75 Ω
- DC Resistance: 148 Ω/km
- Capacitance: 57 pF/m
- Attenuation: –0.5 dB @1 MHz → –8 dB @180 MHz → –14 dB @400 MHz
- Temperature Range: –20 °C to 75 °C
What's Included
- One 100 m (328 ft) reel of BC‑3X2T7S bulk presentation/VGA cable
