Condition: New

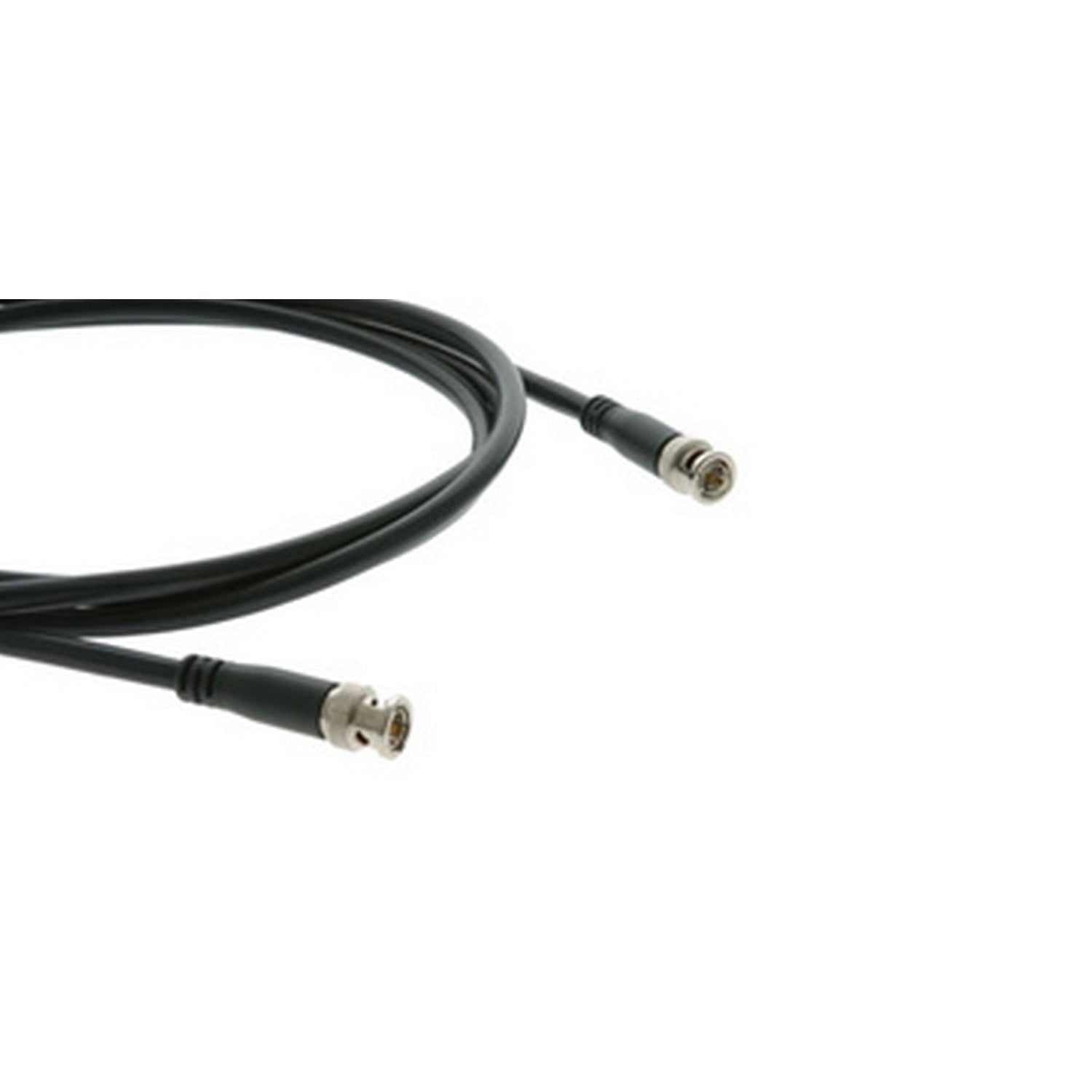

Kramer C‑BM/BM BNC Coax Male-to-Male Video Cable
The Kramer C‑BM/BM is a robust RG‑6 coaxial cable featuring precision-engineered 75 Ω BNC male connectors on both ends. It’s built to maintain signal integrity for SDI, composite video, RF, and broadcast applications, with tested compatibility up to 3G‑SDI.
Available in lengths from 1.5 to 150 ft, this cable offers a high-performance solution for professional AV installations, featuring dual shield protection and a durable PVC jacket rated for in-wall use.
Key Features
- Connectors: BNC Male ↔ BNC Male, 75 Ω
- Cable Type: RG‑6 solid 18 AWG copper core
- Shielding: Dual-layer braid + foil for EMI protection
- Performance: Rated for 3G‑SDI signals
- Cable Jacket: Dark gray PVC with labeling
- Available Lengths: 1.5, 3, 6, 10, 15, 25, 35, 50, 75, 100, 150 ft
- Electrical Specs: 21.8 Ω/km, 53.1 pF/m, 82% velocity
- Temp Range: –20 °C to +75 °C
- Regulatory: UL CL2, CSA C(UL) CL2
Technical Specifications
- Center Conductor: 1.02 mm (0.040 in)
- Dielectric Diameter: 4.57 mm (0.179 in)
- Overall OD: 6.95 mm (0.391 in)
- Attenuation: –0.3dB to –6.7dB/100 ft (1–1000 MHz)
- Impedance: 75 Ω
- Connector Pull: Standard BNC termination
- Cable Jacket: PVC, dark gray
What’s Included
- One Kramer C‑BM/BM cable (chosen length)
