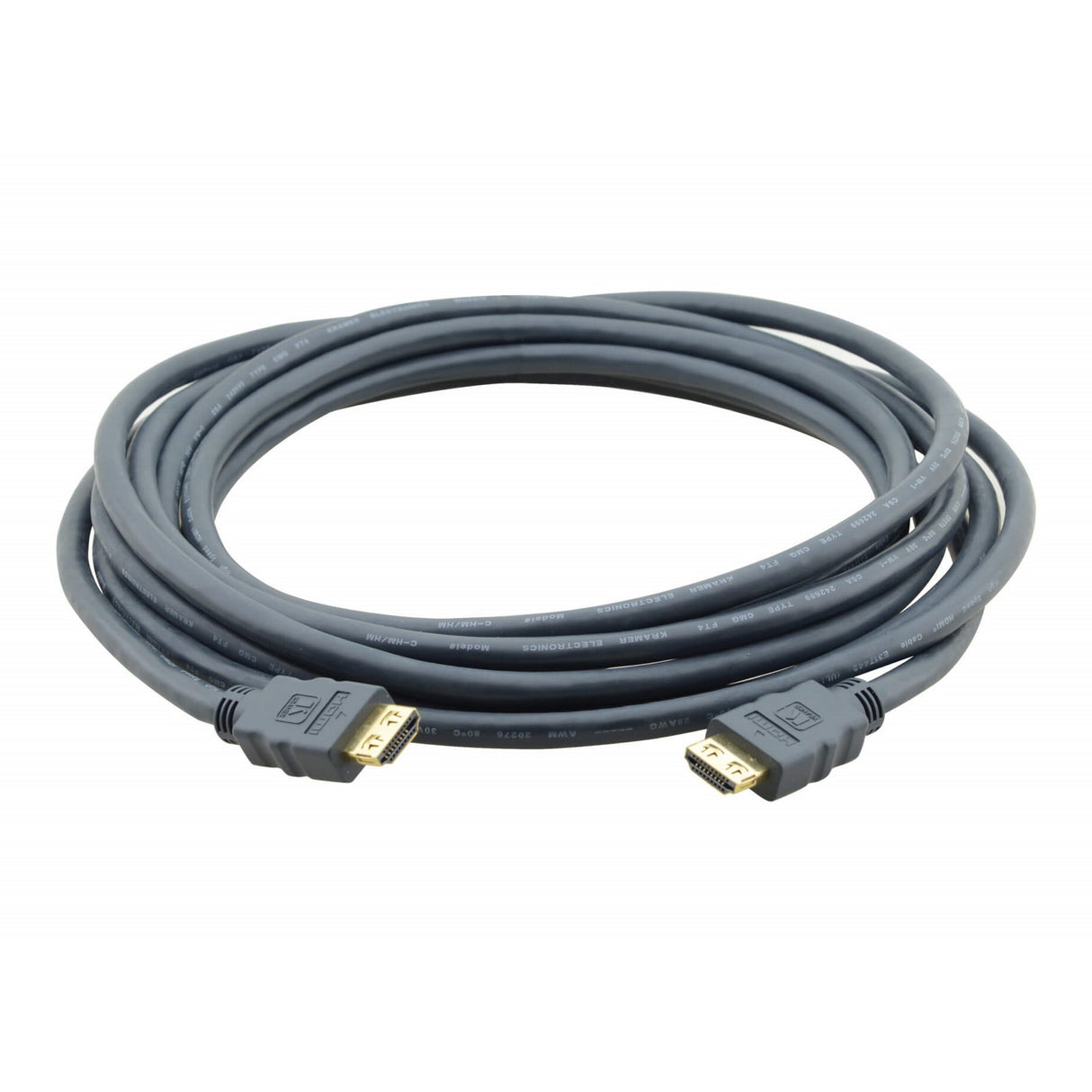

Kramer C-HM/HM-15 High-Speed HDMI Cable, 15-Feet
Kramer C-HM/HM-15 High-Speed HDMI Cable, 15-Feet
Kramer C-HM/HM-15 High-Speed HDMI Cable, 15-Feet
Kramer’s C-HM/HM cable is your default choice for high-performance, HDMI cable.
It'supports signals up to 4K@60Hz (4:4:4), Deep Color, x.v.Color, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS-HD, CEC.
Key Features
- Quality Performance - Kramer’s HDMI cables provide an uncompressed digital link between consumer electronics equipment such as DVD players, set-top boxes and audio/video monitors such as LCD or OLED display screens for high-definition TVs.
- Max. Resolution - 4K@60Hz (4:4:4).
- High-Quality Connectors - 24K gold-plated connectors resist corrosion, and offer the best possible connectivity.
- K-Lock Pull-Resistant Connectors - Provides 15lbs of restraining force for a non-slip connection.
Technical Specifications
VIDEO
Max Resolution for 3-15ft (.9-4.6m) lengths: 4K@60Hz (4:4:4)
Max Resolution for 25-35ft (7.6-10.7m) lengths: 1080p-12bit
Max Resolution for 50ft (15.2m) lengths: 1080p
Max Data Rate for 3-15ft (.9-4.6m) lengths: 18 Gbps
Max Data Rate for 25-35ft (7.6-10.7m) lengths: 7.65 Gbps
Max Data Rate for 50ft (15.2m) lengths: 4.95Gbps
Supported Color Spaces: RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, BT.2020
HDMI Compliance: HDR,HDCP 2.2, EDID and CEC
AUDIO
Supported Audio Formats: Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DVD Audio, SA-CD
PHYSICAL
HDMI Source: On a male HDMI type A, 24K gold-plated K-Lock connector
HDMI Display: On a male HDMI type A, 24K gold-plated K-Lock connector
CONDUCTORS
Material: Tinned Copper/Bare Copper
3-35ft (.9-10.7m) lengths: 28AWG (7/0.127)
50ft (15.2m) lengths: 26AWG (7/0.160)
SCREENING
Type: Triple shielding
JACKET
Material: PVC
Color: Gray
Diameter for 3-35ft (.9-10.7m) lengths: 6.50 +/- 0.15mm
Diameter for 50ft (15.2m) lengths: 9 +/- 0.25
MECHANICAL
Cable Bending Radius for 3-35ft (.9-10.7m) lengths: 60mm
Cable Bending Radius for 50ft (15.2m) lengths: 90mm
ELECTRICAL
Temperature Rating: 80-deg C
Voltage Rating: 30V
Conductor Resistance - 28AWG: 237.25 OHM/km
Conductor Resistance - 26AWG: 148 OHM/km MAX. at 20-deg C (68-deg F)
STANDARDS COMPLIANCE
Safety: Flammability Rating - CL3/FT4
Environmental: RoHS 2011/65/ EU
