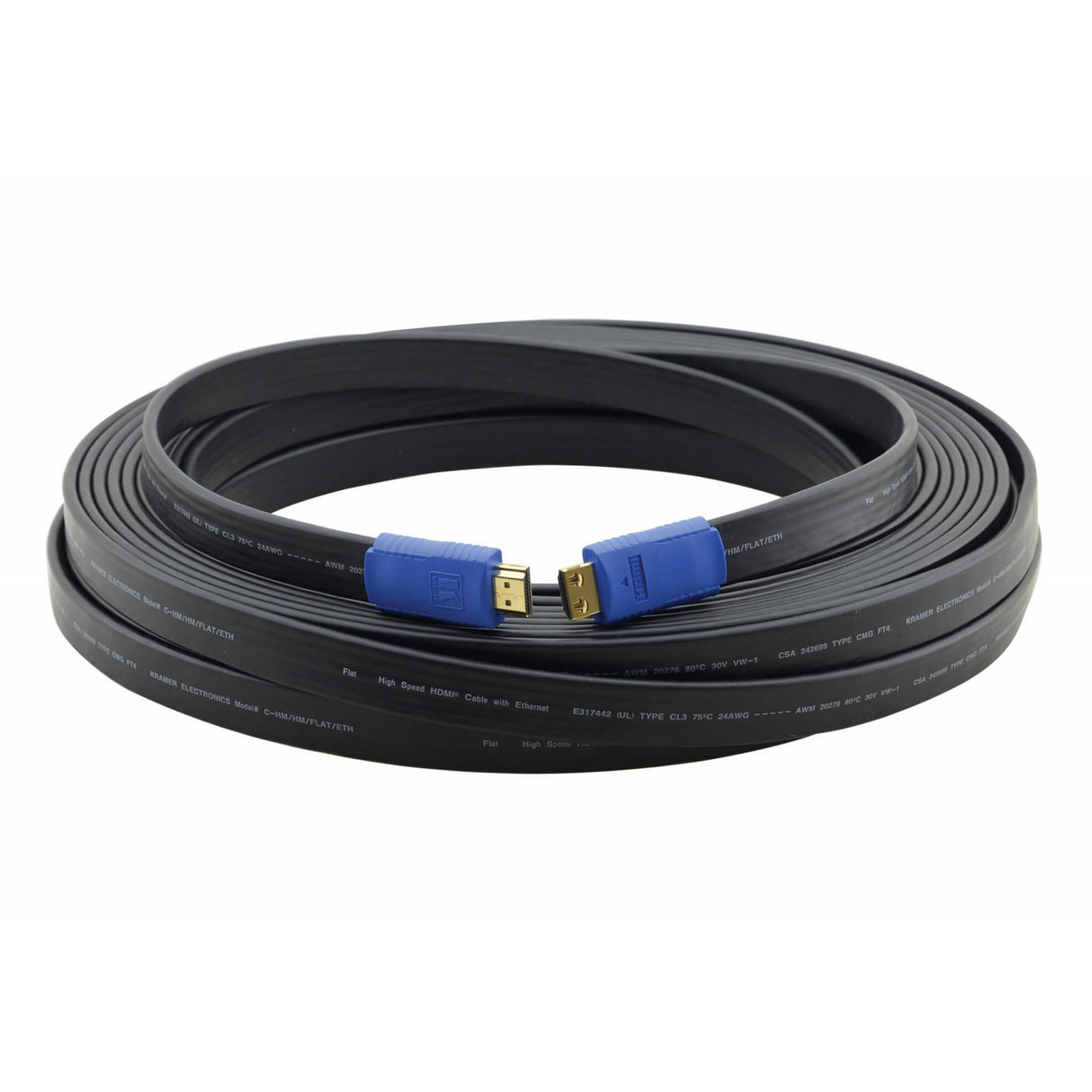

Kramer C-HM/HM/FLAT/ETH-75 Flat High-Speed HDMI Cable with Ethernet, 75-Feet

Kramer’s C-HM/HM/FLAT/ETH flat high-speed HDMI cable with Ethernet is designed for “invisible” and long distance installations. It routes through the wall, under the carpet, around corners and behind the entertainment system with ease. The flat design of the cable renders it unobtrusive. It'supports resolutions up to 4K@60Hz (4:4:4).

Key Features

• Quality Construction - Constructed from flexible flat cable structured to have less crosstalk and interference than with traditional round HDMI cables.
• Max. Resolution - 4K@60Hz (4:4:4).
• High-Quality Connectors - 24K gold-plated connectors resist corrosion, cut down on impedance and offer the best possible connectivity.
• K-Lock Pull-Resistant Connectors - Provides 15lbs of restraining force for a non-slip connection.

Technical Specifications

VIDEO
Max Resolution for 3-10ft (0.9-3.0m) lengths: 4K60 (4:4:4)
Max Resolution for 15-35ft (4.6-10.6m) lengths: 4K60 (4:2:0)
Max Resolution for 50ft (15.2m) lengths: 1080p60Hz 12-bit
Max Resolution for 75ft (22.9m) lengths: 1080p
Max Data Rate for 3-10ft (0.9-3.0m) lengths: 18Gbps
Max Data Rate for 15-35ft (4.6-10.6m) lengths: 10.2Gbps (3.4Gbps per channel)
Max Data Rate for 50ft (15.2m) lengths: 7.78Gbps (2.6Gbps per channel)
Max Data Rate for 75ft (22.9m) lengths: 4.95Gbps (1.65Gbps per channel)
HDMI Compliance: HDCP 2.2, EDID, CEC, HDR-10, HLG, Dolby Vision
AUDIO
Supported Audio Formats: Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DVD Audio, SA-CD
PHYSICAL
Connectors: 2 Male HDMI Type A, 24K gold-plated K-Lock connector
Bending radius for 3-10ft (0.9-3.0m) lengths: 126mm
Bending radius for 15-35ft(4.6-10.6m) lengths: 168mm
Bending radius for 50-75ft(15.2-22.9m) lengths: 183mm
CONDUCTORS
Diameter for 3-10ft (0.9-3.0m) lengths: 28AWG(1/0.32)
Diameter for 15-35ft(4.6-10.6m) lengths: 26AWG(1/0.42)
Diameter for 50-75ft(15.2-22.9m) lengths: 24AWG (1/0.52)
Material: Bare Copper
JACKET
Material: PVC
Color: Black
Diameter for 3-10ft (0.9-3.0m) lengths: 3.0+/-0.13x12.6+/-0.25mm
Diameter for 15-35ft(4.6-10.6m) lengths: 3.8+/-0.15x16.8+/-0.25mm
Diameter for 50-75ft(15.2-22.9m) lengths: 4.2+/-0.15x18.3+/-0.25
ELECTRICAL
Temperature Rating: 80-deg C
Voltage Rating: 30V
Conductor Resistancefor 28AWG: 237 OHM/KM MAX. at 20-deg C
Conductor Resistancefor 26AWG: 148 OHM/KM MAX. at 20-deg C
Conductor Resistancefor 24AWG: 93.2 OHM/KM MAX. at 20-deg C
REGULATORY
Rating (NEC/UL/CSA): CL3/CMG-FT4
RoHS: 2011/65/ EU
