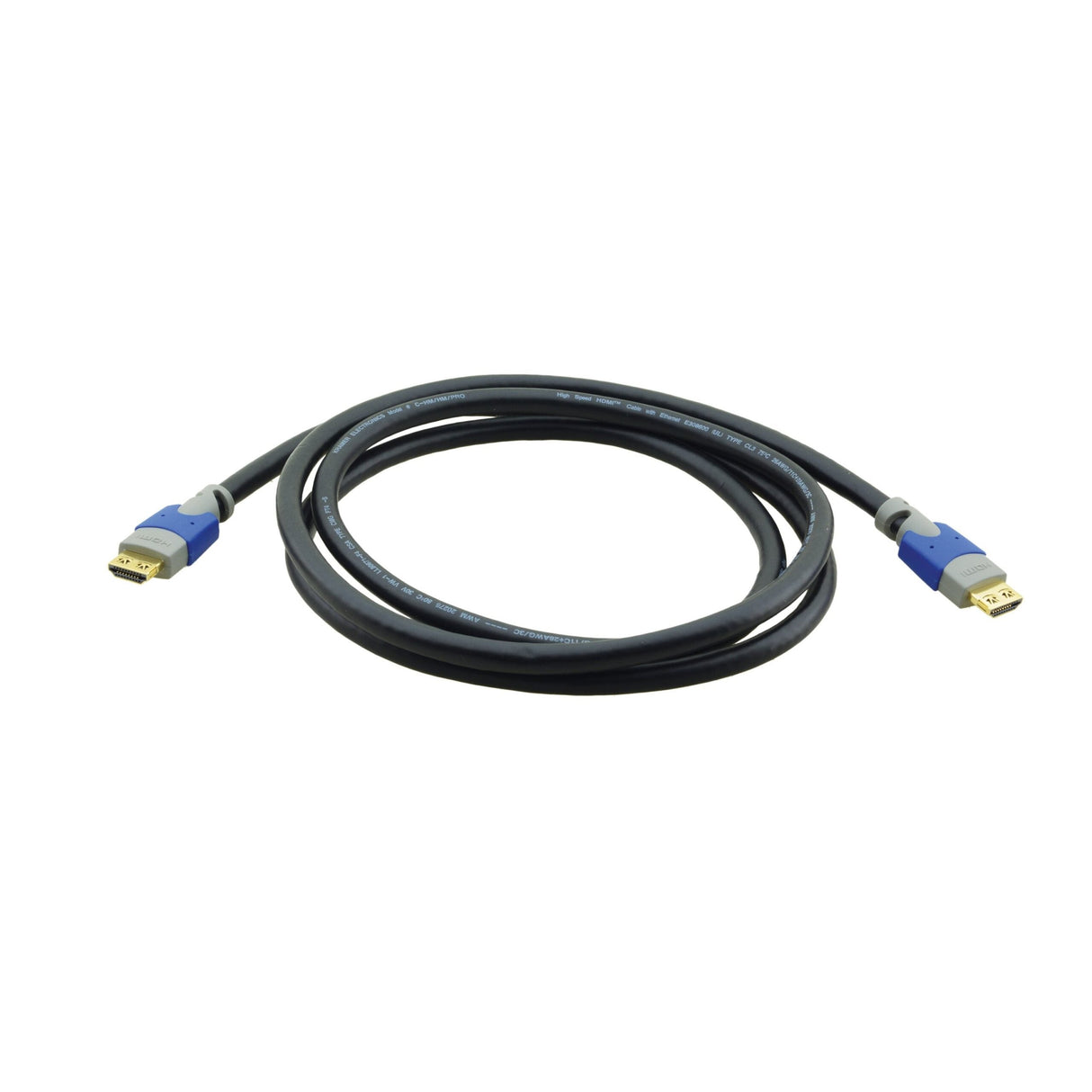

Kramer C-HM/HM/PRO-3 Premium/High-Speed HDMI Cable with Ethernet, 3-Feet

Kramer’s C-HM/HM/PRO HDMI cable delivers high-speed, high-performance digital video and audio with impeccable impedance stability, low skew, high signal integrity, and noise immunity for up to 4K@60Hz (4:4:4). With pro-grade heavy-duty construction, triple-shield bonded pairs and K-Lock connectors, PRO series cables are robust and reliable for the most demanding applications.

Key Features

• Max. Data Rate - 18Gbps.
• Max. Resolution - 4K@60Hz (4:4:4).
• Deep Color - Supports 24-bit, 30-bit, 36-bit and 48-bit (RGB or YCbCr) color depths. Best for multimedia applications or home cinema and surround systems.
• Multi-Channel Audio Support - Supports audio stream for external decoding by AV receivers and automatic audio syncing capabilities.
• High Quality Connectors - 24K gold-plated, corrosion-resistant and best possible connectivity.
• K-Lock Pull-Resistant Connectors - Provides 15lbs of restraining force for a non-slip connection.
• Shield - Triple overall shield against EMI/RFI interference

Technical Specifications

VIDEO
Max Resolution for 3-20ft (.9-6.1m) lengths: 4K@60Hz (4:4:4)
Max Resolution for 25-35ft (7.6-10.7m) lengths: 4K@30Hz (4:4:4)
Max Resolution for 50ft (15.2m) lengths: 1080p
Max Data Rate for 3-15ft (.9-4.6m) lengths: 18 Gbps (6Gbps per channel)
Max Data Rate for 25-35ft (7.6-10.7m) : 10.2 Gbps (3.4Gbps per channel)
Max Data Rate for 50ft (15.2m) lengths: 4.95Gbps (.99Gbps per channel)
Supported Color Spaces: RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, BT.2020
HDMI Compliance: HDR, HDCP 2.2, EDID and CEC, ARC and ETH
AUDIO
Supported Audio Formats: Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DVD Audio, SA-CD
PHYSICAL
HDMI Source: On a male HDMI type A, 24K gold-plated K-Lock connector
HDMI Display: On a male HDMI type A, 24K gold-plated K-Lock connector
CONDUCTORS
Material: Bare Copper
3-35ft (.9-10.7m) lengths: 26AWG (7/0.160)
50ft (15.2m) lengths: 24AWG (7/0.20)
SCREENING
Type: Triple shielding
JACKET
Material: PVC
Color: Black
Diameter for 3-35ft (.9-10.7m) lengths: 8 +/- 0.19mm
Diameter for 50ft (15.2m) lengths: 9.50 +/- 0.25mm
MECHANICAL
Cable Bending Radius for 3-35ft (.9-10.7m) lengths: 80mm
Cable Bending Radius for 50ft (15.2m) lengths: 95mm
ELECTRICAL
Temperature Rating: 80C
Voltage Rating: 30V
Conductor Resistance - 26AWG: 148 OHM/km
Conductor Resistance - 24AWG: 63.2 OHM/km MAX. at 20 OHM
STANDARDS COMPLIANCE
Safety: Flammability Rating - CL3/FT4
Environmental: RoHS 2011/65/ EU
