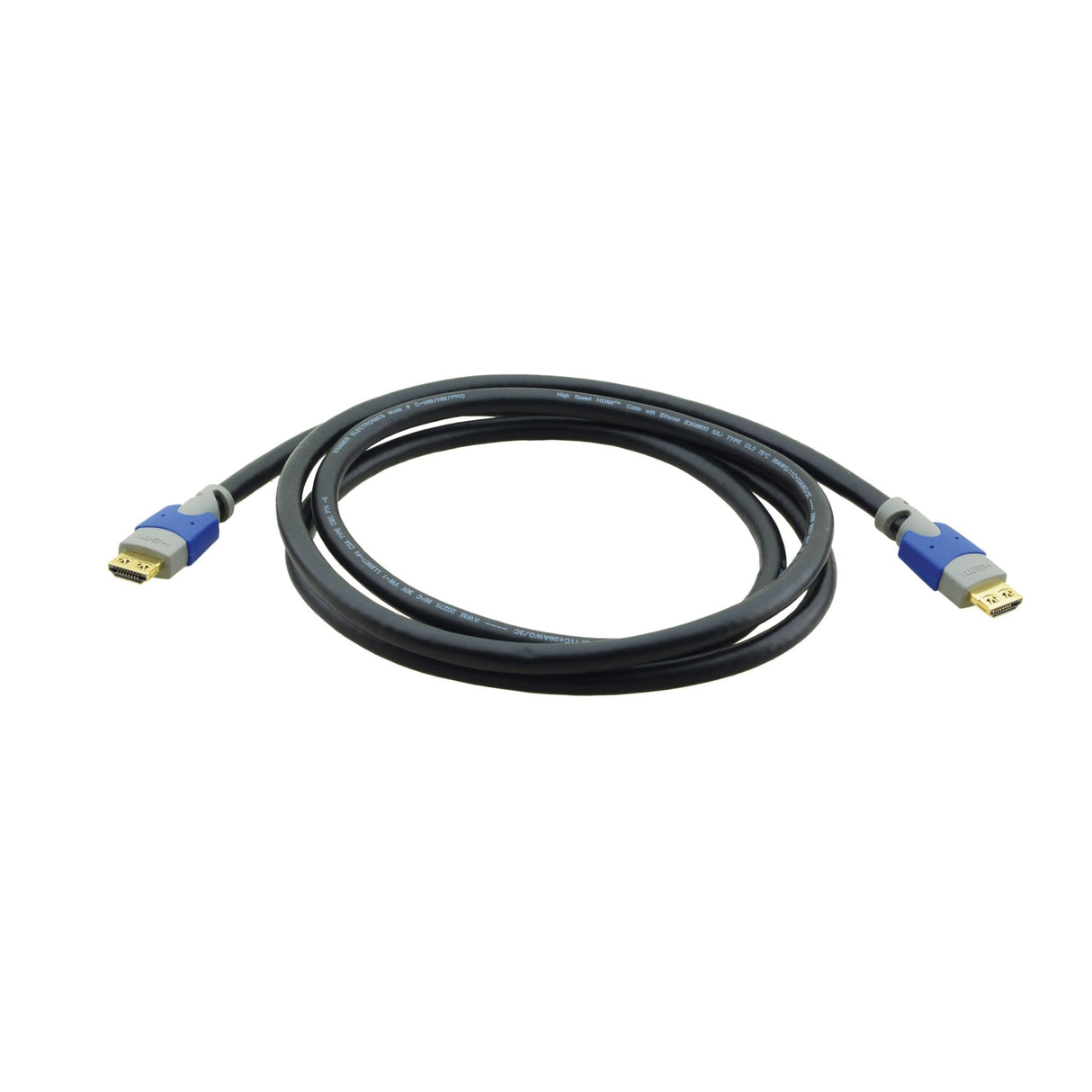

Kramer C-HM/HM/PRO-40 Premium/High-Speed HDMI Cable with Ethernet, 40 Foot

Kramer's C-HM/HM/PRO HDMI cable delivers high-speed, high-performance digital video and audio with impeccable impedance stability, low skew, high signal integrity, and noise immunity for up to 4K@60Hz (4:4:4). With pro-grade heavy-duty construction, triple-shield bonded pairs and K-Lock connectors, PRO series cables are robust and reliable for the most demanding applications.

Key Features

• Max. Data Rate - 18Gbps
• Max. Resolution - 4K@60Hz (4:4:4)
• Deep Color - Supports 24-bit, 30-bit, 36-bit and 48-bit (RGB or YCbCr) color depths. Best for multimedia applications or home cinema and surround systems
• Multi-Channel Audio Support - Supports audio stream for external decoding by AV receivers and automatic audio syncing capabilities
• High Quality Connectors - 24K gold-plated, corrosion-resistant and best possible connectivity
• K-Lock Pull-Resistant Connectors - Provides 15lbs of restraining force for a non-slip connection
• Premium certified
• Shield - Triple overall shield against EMI/RFI interference
• Varied Selection of Lengths - Available in versions of 0.9 to 19.8m (3, 6, 10, 15, 25, 35, 50 and 65ft)

Technical Specifications

VIDEO
Max Resolution for 3-20ft (.9-6.1m) lengths
4K@60Hz (4:4:4)
Max Resolution for 25-35ft (7.6-10.7m) lengths
4K@30Hz (4:4:4)
Max Resolution for 50ft (15.2m) lengths
1080p
Max Data Rate for 3-15ft (.9-4.6m) lengths
18 Gbps (6Gbps per channel)
Max Data Rate for 25-35ft (7.6-10.7m)
10.2 Gbps (3.4Gbps per channel)
Max Data Rate for 50ft (15.2m) lengths
4.95Gbps (.99Gbps per channel)
Supported Color Spaces
RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, BT.2020
HDMI Compliance
HDR, HDCP 2.2, EDID and CEC, ARC and ETH
AUDIO
Supported Audio Formats
Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DVD Audio, SA-CD
PHYSICAL
HDMI Source
On a male HDMI type A, 24K gold-plated K-Lock connector
HDMI Display
On a male HDMI type A, 24K gold-plated K-Lock connector
CONDUCTORS
Material
Bare Copper
3-35ft (.9-10.7m) lengths
26AWG (7/0.160)
50ft (15.2m) lengths
24AWG (7/0.20)
SCREENING
Type
Triple shielding
JACKET
Material
PVC
Color
Black
Diameter for 3-35ft (.9-10.7m) lengths
8 - 0.19mm
Diameter for 50ft (15.2m) lengths
9.50 - 0.25mm
MECHANICAL
Cable Bending Radius for 3-35ft (.9-10.7m) lengths
80mm
Cable Bending Radius for 50ft (15.2m) lengths
95mm
ELECTRICAL
Temperature Rating
80C
Voltage Rating
30V
Conductor Resistance - 26AWG
148/km
Conductor Resistance - 24AWG
63.2/km MAX. at 20
STANDARDS COMPLIANCE
Safety
Flammability Rating - CL3/FT4
Environmental
RoHS 2011/65/ EU
