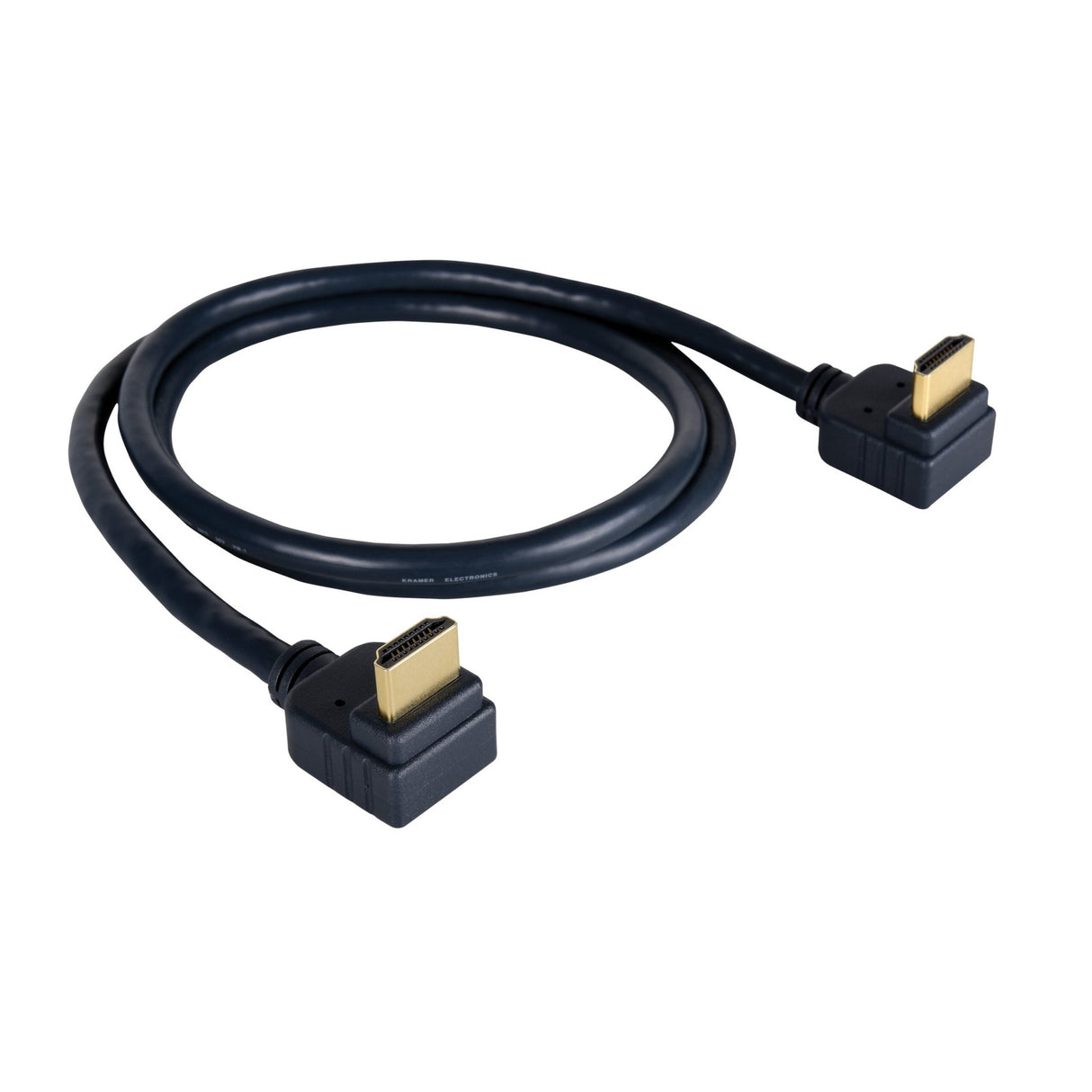

Kramer C-HM/RA2-3 High-Speed HDMI Right Angle Cable with Ethernet, 3-Feet

C-HM/RA2 is a high-speed, 4K@60Hz (4:4:4) HDMI, cable that supports Ethernet over the HDMI line. Both ends of the cable are right angle connectors.

Key Features

• Max. Resolution - 4K@60Hz (4:4:4).
• High-Quality Connectors - 24K gold-plated connectors resist corrosion, and offer the best possible connectivity.
• Minimizes Installation Depth - The right angle design makes it the perfect cable for connecting a flat panel display to a
• Kramer low profile wall-plate extender when the extender is installed behind the display.
• Supports HDCP 2.2, HDR, deep color, x.v.Color, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS-HD, and CEC.

Technical Specifications

VIDEO
Max Resolution: 4K@60Hz (4:4:4)
Max Data Rate: 18 Gbps
Supported Color Spaces: RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, BT.2020
HDMI Compliance: HDR,HDCP 2.2, EDID and CEC
AUDIO
Supported Audio Formats: Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DVD Audio, SA-CD
PHYSICAL
HDMI Source: On a male HDMI type A, 24K gold-plated K-Lock connector
HDMI Display: On a male HDMI type A, 24K gold-plated K-Lock connector
CONDUCTORS
Material: Tinned Copper/Bare Copper
Size: 30AWG (7/0.100)
SCREENING
Type: Triple shielding
JACKET
Material: PVC
Color: Gray
Diameter: 7 +/- 0.15mm
MECHANICAL
Cable Bending Radius: 60mm
ELECTRICAL
Temperature Rating: 80-deg C
Voltage Rating: 30V
Conductor Resistance: 381 OHM/km MAX. at 20-deg C (68-deg F)
STANDARDS COMPLIANCE
Safety: Flammability Rating - VW-1
Environmental: RoHS 2.0
