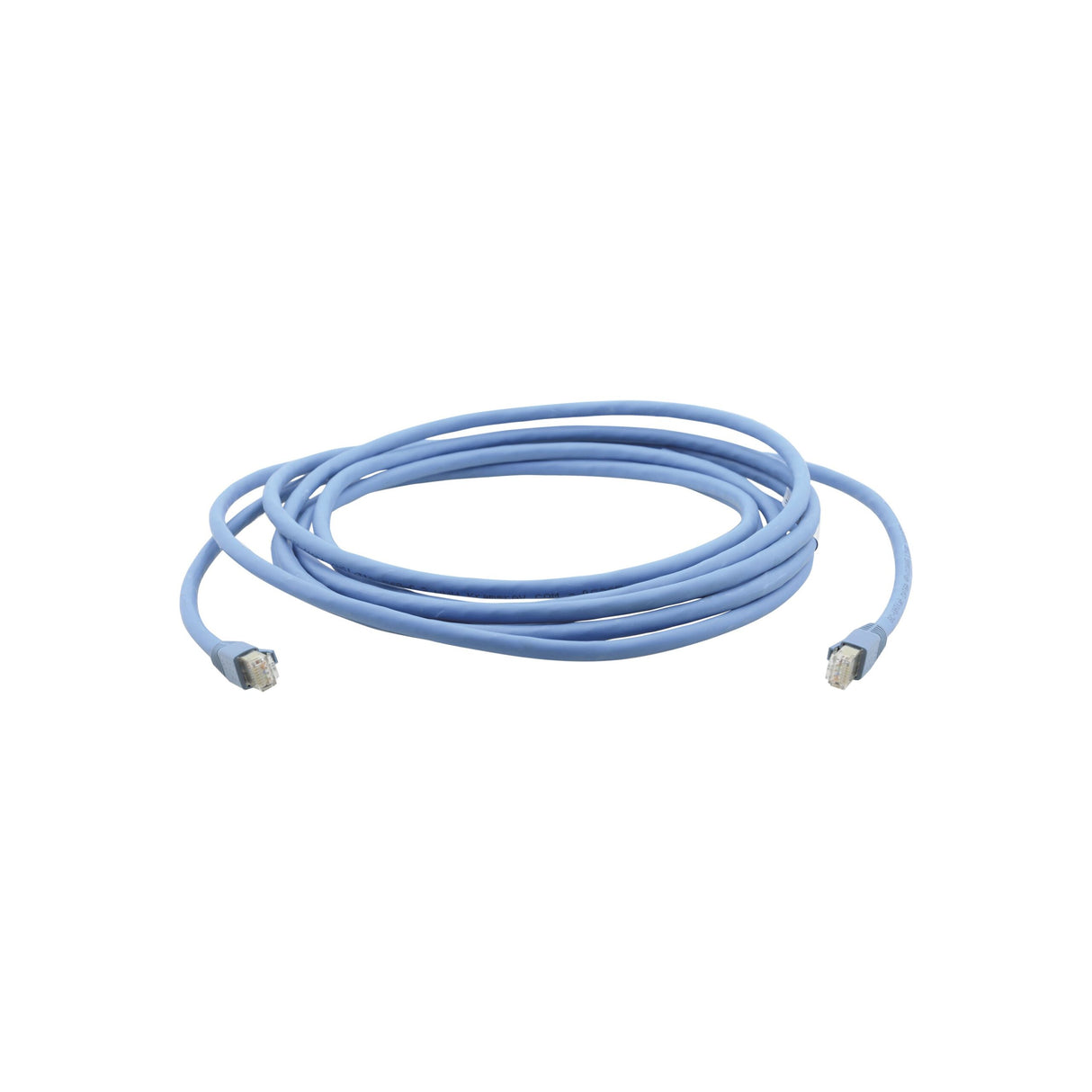

Kramer C-UNIKat-328 Four-Pair CAT6A U/FTP 4x2x23AWG Cable, 328 Foot

Kramer's C-UNIKAT cable is a unified CAT6a cable that handles all the latest technology signals. Over four individually screened twisted pairs, this U/FTP CAT6a cable runs Kramer’s DGKat technology, 4K HDBaseT technology or LAN applications and ensures optimum signal performance.

Key Features

• Quality Construction - 4 shielded twisted pairs (U/FTP) of 23AWG solid copper conductors are cabled together in an unshielded outer jacket
• Optimized for Kramer Hardware - Use with any of Kramer’s wide range of twisted pair digital transmitter-receiver sets (DGKat and HDBaseT)
• High-Quality Shielded RJ-45 Connectors - 50u gold plated contacts

Technical Specifications

CONSTRUCTION
Conductors
4 x 2 x 23AWG, annealed copper
Outer Diameter
0.56- 0.01mm (0.022in)
Insulation Material
Skin/foam/skin HDPE
Outer diameter
1.33 0.10mm (0.052in)
Color
Per TIA/EIA 568B
Screening
Alu/PET per pair (Alu side out)
Drain Wire
90% tinned copper, outer diameter: 0.4 - 0.01mm (0.016in)
Jacket
LSHF, blue RAL5012
THICKNESS
0.5mm (0.020in)
DIAMETER
7.2 - 0.2mm (0.284in)
PHYSICAL
Maximum Pulling Tension
100N
Bending Radius
Installation 60mm (2.36in), installed 50mm (1.97in)
Thermal Characteristics
Storage/transport/installation 0 to 50C (32 to 122F), operation - 20to 60C (-4 to 140F)
REGULATORY
Electrical
EIA/TIA 568A, ISO/IEC 11801
Fire Performance
IEC 60332-1
Smoke Density
IEC 61034
Halogen Free
IEC 60754
ELECTRICAL
Impedance
1-100MHz : 100 - 15
Impedance
100-250MHz : 100 - 20
Impedance
250-500MHz : 100 - 50
Propagation Velocity
76%
Mutual Pair Capacitance
42pF/m
Capacitance Unbalanced Pair/Ground
1500pF/km
Max. Conductor DC Resistance
<79.8/km
Pair Resistance Unbalance
DC <1.5%
Dielectric Strength
2.5kV DC (2s)
Insulation Resistance
>5000M?/km
Voltage Rating
30V
