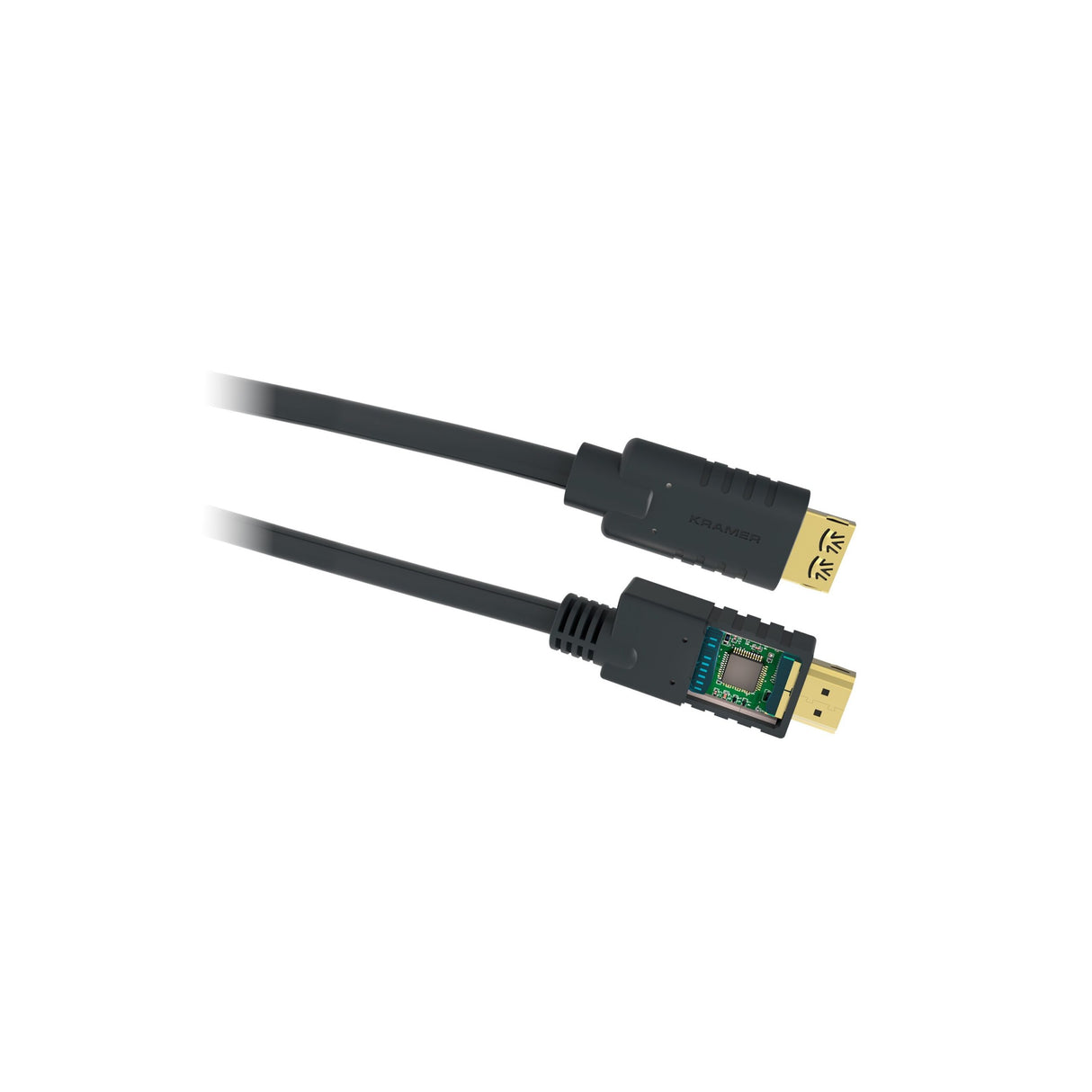

Kramer CA-HM-25 Active 4K High Speed HDMI Cable with Ethernet, 25-Foot

CA-HM active HDMI copper cable provides a perfect cable solution for delivering HDMI signals over long distances: 18Gbps up to 20m (66ft) and 10.2 Gbps up to 30m (98ft). The innovative technology utilized in the cable’s connector features superior equalizing and signal compensation to meet the most demanding challenges in Pro AV installations.

This unique solution simplifies long distance installations by using a true plug & play cable that draws power from the HDMI source. There is no need for an external power source.

CA-HM features the Kramer exclusive K-Lock HDMI connector, that prevents cables in your installation from unintentionally disconnecting, eliminating cable-related service calls. Additionally, an LED on the connector indicates when the signal is transmitted successfully.

Key Features

• Video Resolution - Up to 4K@60Hz (4:4:4).
• High Data Transfer Rate - Up to 18Gbps.
• HDMI Support - HDCP 2.2, HDR, EDID, ARC and CEC.
• Deep Color, x.v.Color, 5.1/7.1 lossless Dolby TrueHD and DTS-HD surround sound.
• High-quality Connectors - 24K gold-plated, corrosion-resistant connectors offer the best possible connectivity.
• Pull-resistant - K-Lock connectors with 15 lbs. of restraining force.
• Triple Shielded - For maximum EMI protection.
• UL Listed - CL3/FT4 rated for in-wall installations.
• Varied Selection of Lengths - Available in versions of 15 to 98ft (4.6 to 30m).

Technical Specifications

VIDEO
Max Resolution for 15-66ft (4.6-20m) lengths: 4K@60Hz (4:4:4)
Max Resolution for 82ft (25m) length: 4K@60Hz (4:2:0)
Max Resolution for 98ft (30m) length: 1080p@60Hz 12-Bit
Max Data Rate for 15-66ft (4.6-20m) lengths: 18 Gbps (6Gbps per channel)
Max Data Rate for 82-98ft (25-30m) length: 10.2 Gbps (3.4Gbps per channel)
HDMI Compliance: HDCP 2.2, HDR, EDID and CEC
AUDIO
Supported Formats: Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DVD Audio, SA-CD
PHYSICAL
HDMI Source: On a male type A, 24K gold-plated K-Lock connector
HDMI Display: On a male Type A, 24K gold-plated K-Lock connector (optional external power input via micro USB connector)
CONDUCTORS
15ft (4.6m) length: 32AWG
25-35ft (7.6-10.7m) lengths: 28AWG
50ft (15.2m) length: 26AWG
66-98ft (20-30m) lengths: 24AWG
SCREENING
TMDS pairs: Aluminum/mylar
Overall: Aluminum/mylar + aluminum braid
JACKET
Material: PVC
Color: Black
Diameter - 15ft (4.6m) length: 5.5+/-0.15mm
Diameter - 25-35ft (7.6-10.7m) lengths: 7.10+/-0.15mm
Diameter - 50ft (15.2m) length: 8.5+/-0.20mm
Diameter - 66-98ft (20-30m) lengths: 9.5+/-0.25mm
MECHANICAL
Cable Bending radius - 15ft (4.6m) length: 27.5mm
Cable Bending radius - 25-35ft (7.6-10.7m) lengths: 35.5mm
Cable Bending radius - 50ft (15.2m) length: 42.5mm
Cable Bending radius - 66-98ft (20-30m) lengths: 47.5mm
Connector Max. Pulling Strength: 15lbs/6.8kg
ELECTRICAL
Power Consumption: Up to 90mA / 1mA (standby mode)
Temperature Rating: 80C
Voltage Rating: 30V
Conductor Resistance - 32AWG: 588 OHM/km
Conductor Resistance - 28AWG: 237.25588 OHM/km
Conductor Resistance - 26AWG: 148.94 OHM/km
Conductor Resistance - 24AWG: 381 OHM/km
REGULATORY
Electrical: UL listed, CL3/FT4
Environmental: RoHS 2011/65/EU
