Condition: New

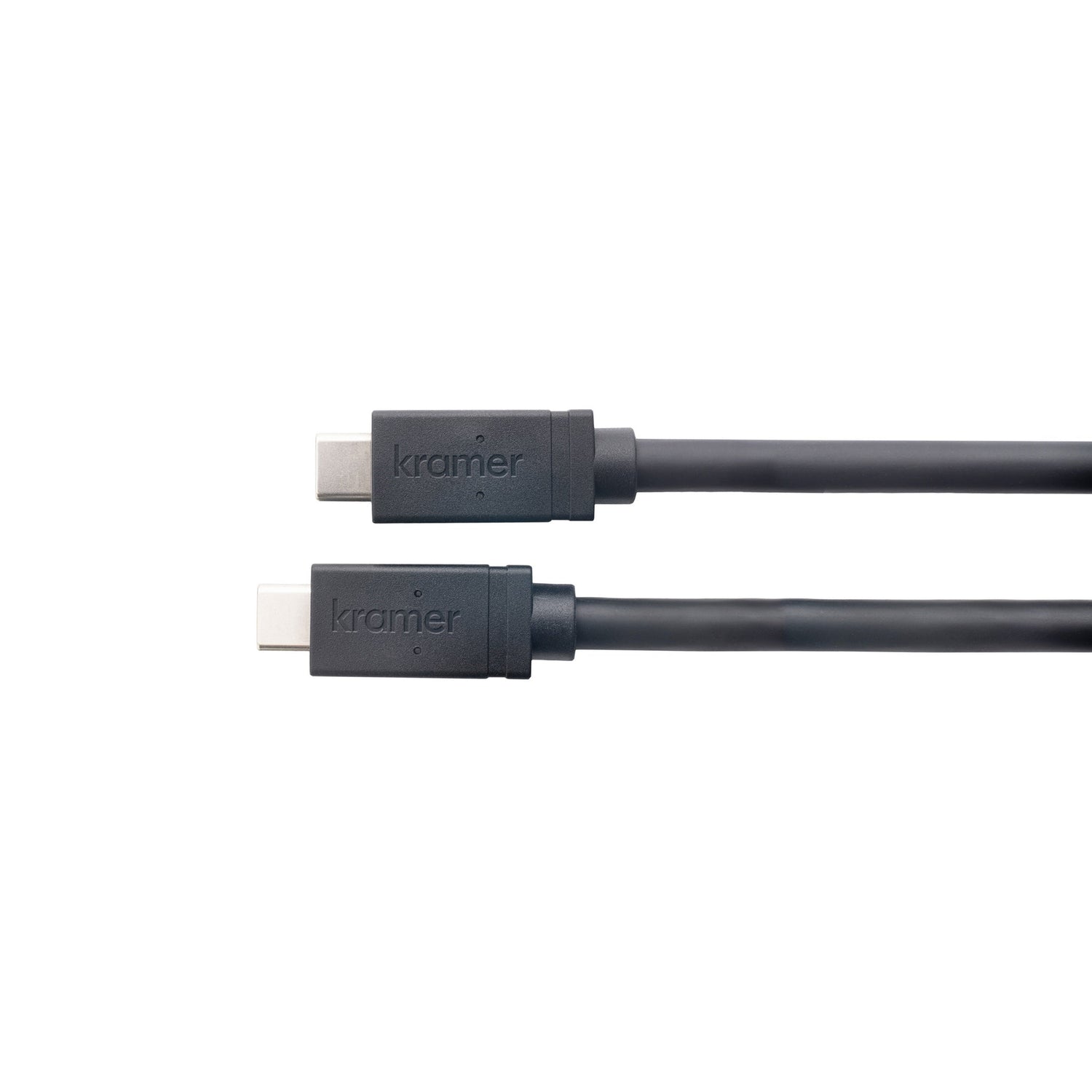

Kramer CA‑U32/FF USB 3.2 Gen‑2 Full‑Featured Active USB‑C Cable
The Kramer CA‑U32/FF is a high-performance active USB‑C cable delivering up to 10 Gbps data, 4K@60 video, 100 W PD charging, and Gigabit Ethernet over a single cable. Its Kramer K‑Lock reversible connectors ensure secure, reliable connections ideal for professional AV and computing setups.
Available in 10 ft and 15 ft lengths, this cable blends robust PVC-shielded construction with nickel-plated, gold-pinned connectors. It supports full USB backward compatibility and passes CE, FCC, RoHS, REACH, and VW‑1 safety standards.
Key Features
- USB Standard: US 3.2 Gen‑2 SuperSpeed+ (10 Gbps)
- Video: 4K@60 Hz (4:4:4) via DisplayPort Alt‑Mode
- Power Delivery: Up to 100 W (5 A, 20 V)
- Ethernet: Gigabit (10/100/1000 Mbps)
- Connector: USB‑C male, reversible K‑Lock, nickel with gold pins
- Cable: Shielded twisted-pair, PVC jacket, 6 mm diameter
- Bend Radius: 36 mm
- Durability: 80 °C, 30 V; VW‑1 rated; CE/FCC certified; RoHS/REACH compliant
- Backward Compatibility: USB 2.0, 3.0
Technical Specifications
- Lengths: 10 ft (3 m), 15 ft (4.6 m)
- Connector Size: 26 × 13.2 × 9 mm
- Cable Diameter: 6 mm ± 0.2 mm
- Bending Radius: 36 mm
- Max Data Rate: 10 Gbps
- Max Video: 4K@60 Hz
- Power Delivery: 100 W (5 A at 20 V)
- Ethernet: 10/100/1000 Mbps
- Temperature Rating: 80 °C; Voltage Rating: 30 V
- Conductor Resistances: 32AWG: 588 Ω/km; 30AWG: 376 Ω/km; 24AWG: 94.2 Ω/km
- Standards Compliance: CE, FCC, RoHS, REACH; VW‑1
What’s Included
- One CA‑U32/FF active USB‑C cable (10 ft or 15 ft model)
