Condition: New

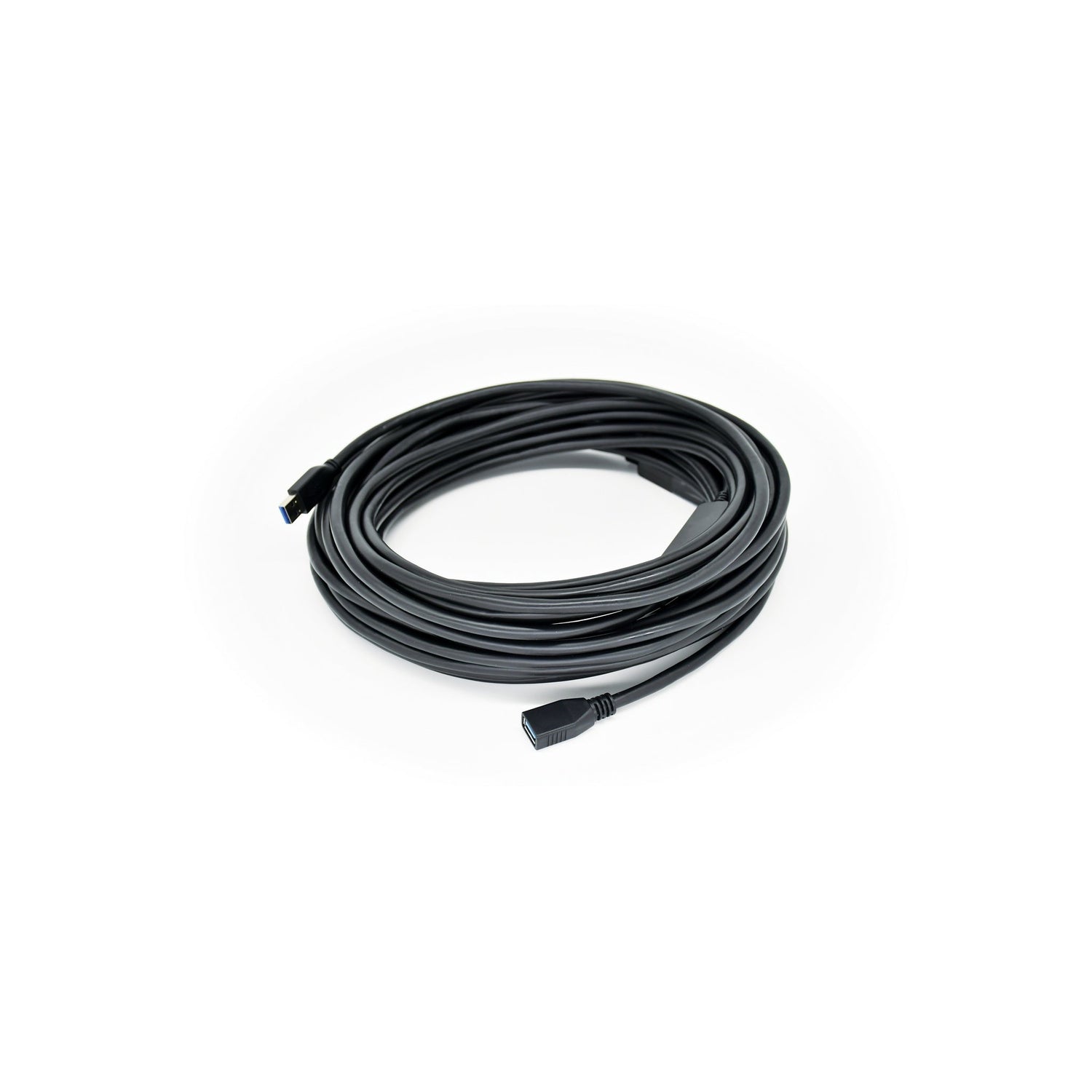

Kramer CA‑USB3/AAE USB 3.0 Active Extender Cable
The Kramer CA‑USB3/AAE is a bus-powered active USB 3.0 extender cable that preserves full SuperSpeed performance (up to 5 Gbps) over distances up to 50 ft. It features durable STP construction, ETL CM‑c rating, and reliable A‑male to A‑female connectivity—ideal for extending USB peripherals like cameras, printers, and keyboards without hub or driver.
Key Features
- USB Standard: USB 3.0 SuperSpeed (5 Gbps), backward compatible with USB 2.0/1.1
- Active Extension: Built-in signal boosters for up to 50 ft length
- Plug‑and‑Play: No additional drivers needed
- Construction: STP 7 mm PVC cable with 2×24 AWG + 1×26 AWG + 2×22 AWG + drains
- Shielding: Foil + braid for EMI/RFI protection
- Bend Radius: 70 mm
- Power Draw: ~3.5–4.4 W from USB source
- Operating Temp: –10 to +55 °C
- Rating: CM‑c (ETL) for in-wall installation
Technical Specifications
- Lengths: 10, 15, 25, 35, 50 ft
- Connectors: USB 3.0 Type‑A male → Type‑A female
- Cable OD: ~7 mm
- Max Data Rate: 5 Gbps
- Power Consumption: 10–15 ft: 4.4 W; 35 ft: 4 W; 50 ft: 3.5 W
- Operating Temperature: –10 to +55 °C
- Cable Composition: 2×24AWG + 1×26AWG + 2×22AWG + 2 drain wires (24AWG)
- Shielding: STP (foil + braid)
- Bending Radius: 70 mm
What’s Included
- One CA‑USB3/AAE active USB 3.0 extender cable (selected length)
