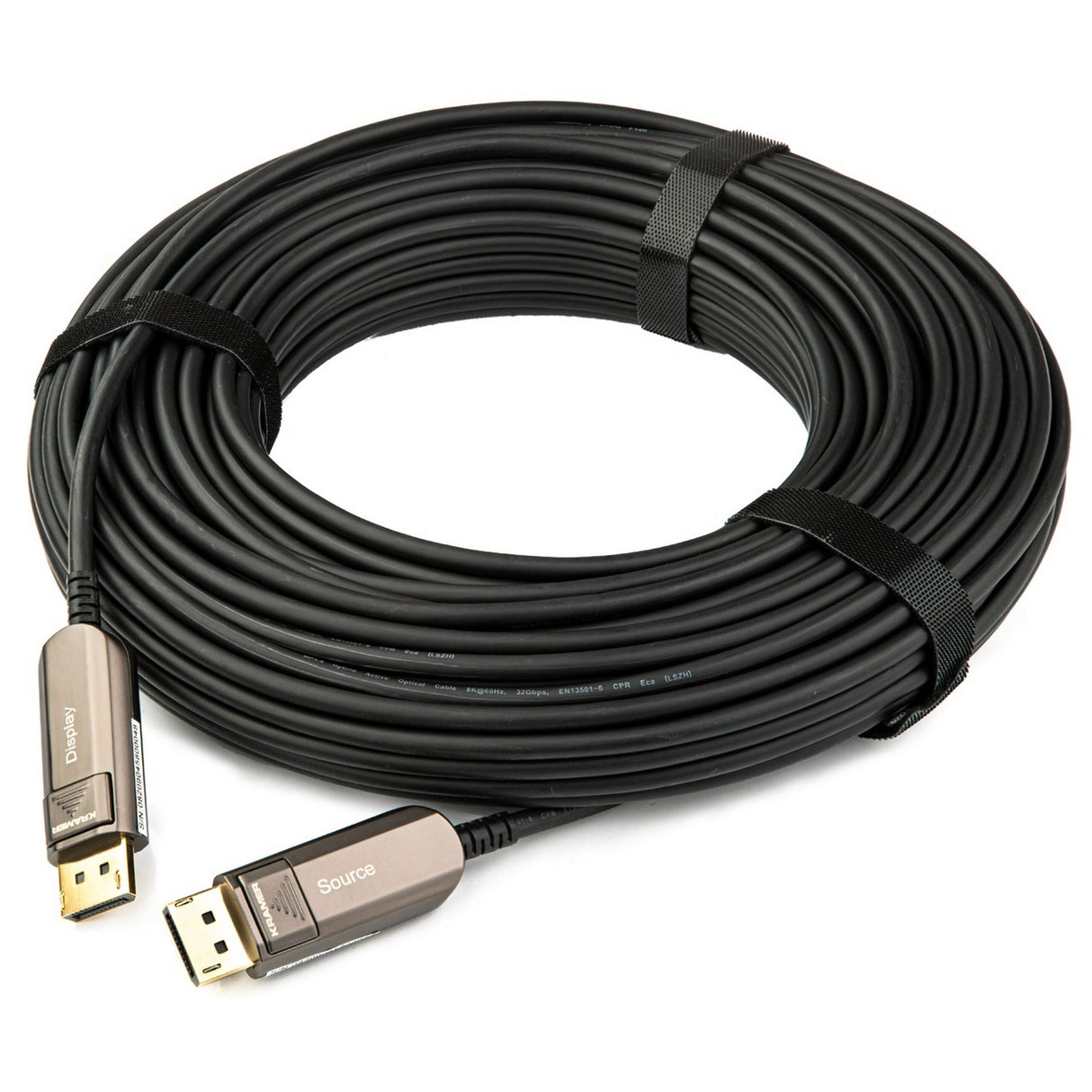

Kramer CP-AOCDP/UF-197 Active Optical DisplayPort Cable, 197 Foot

CP-AOCDP/UF is a DisplayPort 1.4, 8K active optical cable (AOC) that features high resolution and data transfer rate. CP-AOCDP/UF is thin and flexible and requires no external power. User experience is maximized with integrator-oriented features and the latest advances in DisplayPort1.4 technology.

Key Features

• Latest DisplayPort Technology - Supports 3D, HDCP, EDID, HBR3, DSC, and 8K@60Hz resolution
• Streamlines Installations - Supports up to 8K@60Hz over long cable runs of up to 100 meters without the need for an external power supply or additional extenders
• High Data Transfer Rate - Up to 32.4Gbps data rate with 8.1Gbps/lane (HBR3) link rate
• Supports up to 8 channels of 16 or 24bits linear PCM & 32 to 192KHz sampling rate
• No External Power Needed - Powers the active units via the DisplayPort connector
• Thin Construction - 4.8mm diameter
• Safe Construction - Low smoke & halogen free
• Compliance - RoHS 2011/65/EU compliant, CE/FCC

Technical Specifications

VIDEO
Max. Resolution
8K@60Hz (7680-4320)
Max. Data Rate
32.4 Gbps (HBR3)
Max Color Depth
48bit
DisplayPort Support
HDCP 2.2, EDID and DPCP
AUDIO
Channels
Up to 8 of 16 or 24bits linear PCM
Sampling Rate
32 to 192KHz
CONSTRUCTION
Connectors
Male DisplayPort gold plated
Cable Structure
Hybrid Optical Fiber Cable
Fiber Optic
4X850nm Multi-mode fiber
Fiber Cable Type
Hybrid cable - 4 x fiber and 8 x copper wires
Conductors
2px26AWG + 4cx28AWG + 2cx24AWG
JACKET
Outer Sheath Material
Plenum
Outer Sheath Color
PVC Black
Outer Sheath Diameter
4.8mm
PHYSICAL
Minimum Cable Bending Radius
48mm
Connector Max. Pulling Strength
25.173Kg
Max. Compression Load Resistance
300N
ENVIRONMENTAL CONDITIONS
Operating Temperature
0 to +50C
Storage Temperature
-20 to +85C
Operating Humidity
5 to 85%
POWER
Consumption
<0.5W for each end
REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
LSHF
EN 60332-1-2, EN 50399
RoHS
2011/65/ EU
Certified
CE/FCC
