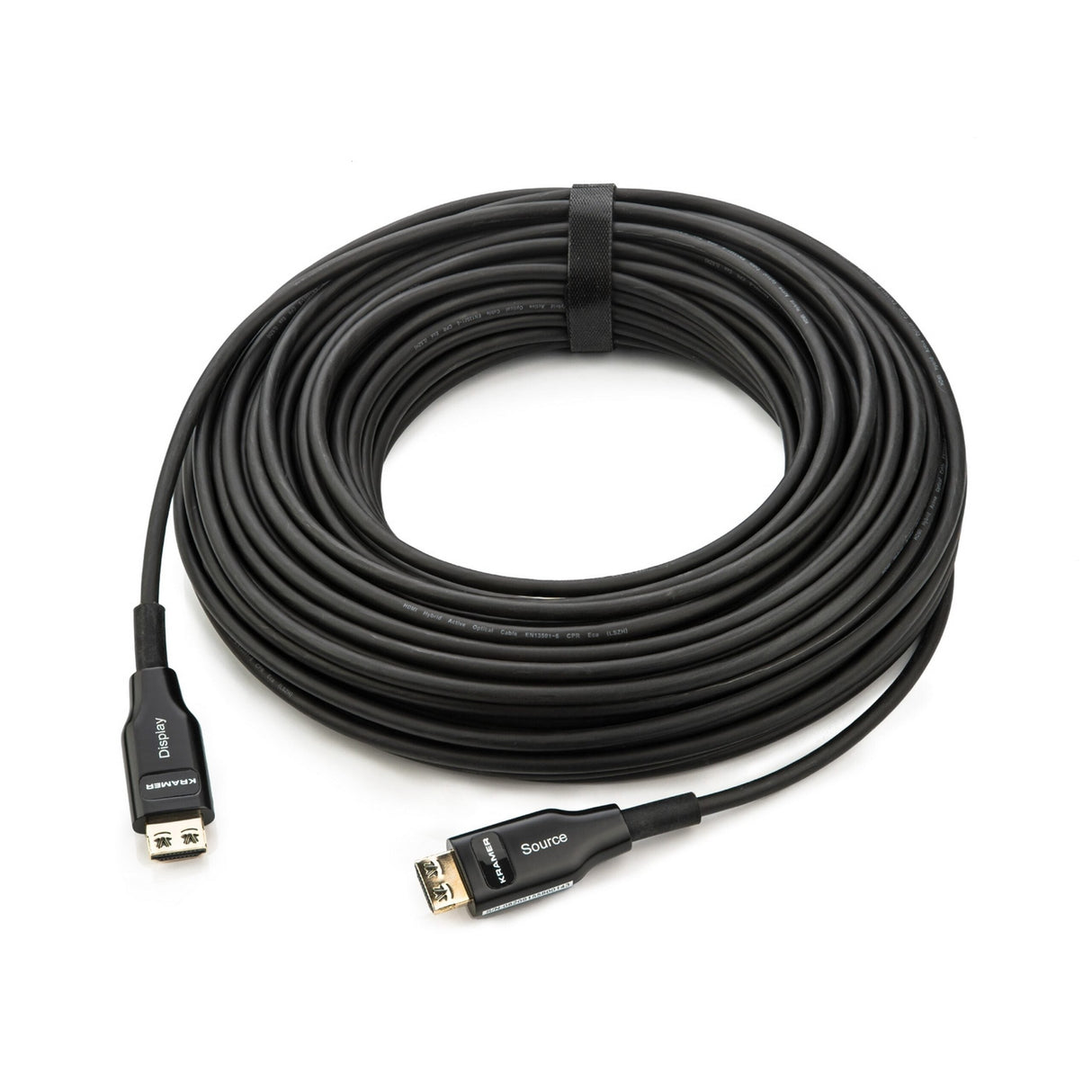

Kramer CP-AOCH/60F-262 High-Speed HDMI Active Optical Hybrid Cable, Plenum Rated, 262-Feet

CP-AOCH/60F is an innovative active optical HDMI cable for 4K signals up to 90 meters (295ft).

CP-AOCH/60F cables are thinner, lighter, and more flexible than copper or even standard optical cables. They offer transparent EDID and HDCP support with no signal attenuation and reduced risk of EMI and RFI interference. CP-AOCH/60F cables are an ideal solution for maximizing signal integrity in critical AV installations.

Key Features

• Video Resolution - Up to 4K@60Hz (4:4:4).
• High Data Transfer Rate - Up to 18Gbps.
• Embedded Audio - PCM 8-channel, Dolby Digital True HD and DTS-HD Master Audio.
• HDMI Support - HDCP 2.2/1.4, HDR, EDID, ARC and CEC.
• High-Quality Connectors - 24K gold-plated, corrosion-resistant and best possible connectivity.
• Reduced EMI & RFI.
• Thin Construction - 4.5mm diameter.
• Jacket Construction - Plenum rated.
• RoHS 2011/65/EU CE,FCC Compliant.
• Varied Selection of Lengths - Available in versions from 10 to 90m (33 to 295ft).

Technical Specifications

VIDEO
Max Resolution: 4K@60Hz
Supported Color Spaces: RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, BT.2020
HDMI Support: HDR, HDCP 2.2/1.4, EDID and CEC, ARC
AUDIO
Supported Audio Formats: Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DVD Audio, SA-CD
PHYSICAL
HDMI Source: On a male HDMI type A, 24K gold-plated K-Lock connector
HDMI Display: On a male HDMI type A, 24K gold-plated K-Lock connector
GENERAL
Cable Type: Hybrid with OM3 fiber and copper wire
O/E Converter: 4 channel 850 nm VCSEL array
Material: Bare Copper
MECHANICAL
Cable Bending Radius: 20mm
JACKET
Color: Black
Diameter : 4.5mm
POWER
Consumption: 250mW (max)
ENVIRONMENTAL CONDITIONS
Operating Temperature: 50C
Storage Temperature: -40-70C
STANDARDS COMPLIANCE - EC VERIFIED
Safety: CE/FCC
REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
Environmental: REACH,RoHS 2011/65/ EU
