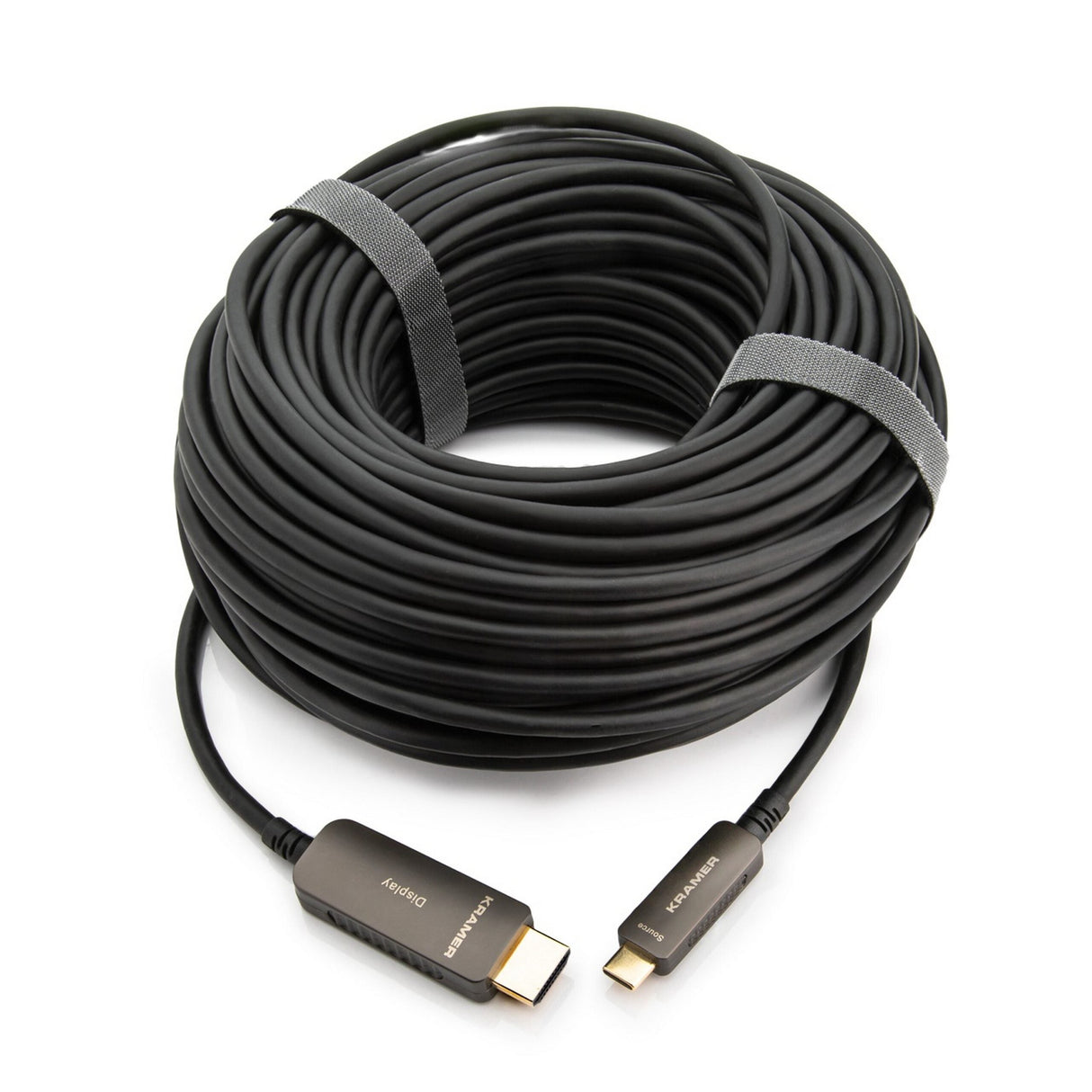

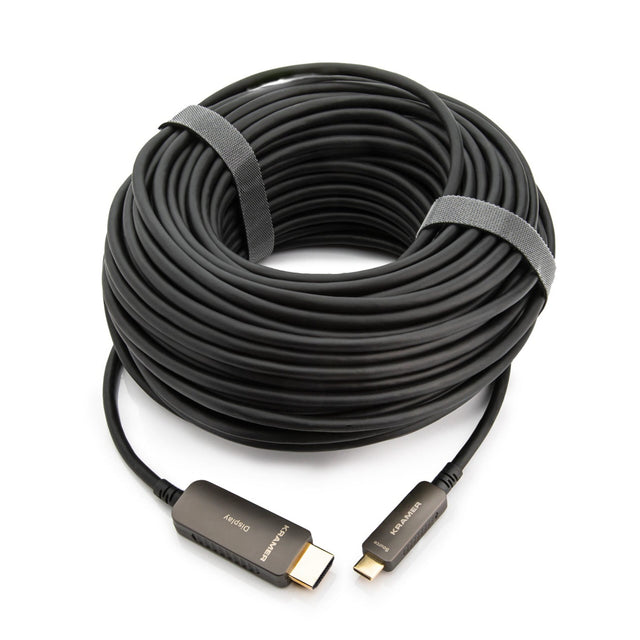

Kramer CP-AOCU/CH-15 Active Optical 4K USB Type C Male to HDMI Male, 15 Foot

CLS-AOCU/CH is an innovative active optical USB C to HDMI cable for 4K signals up to 30 meters (98ft). CLS-AOCU/CH cables are thinner, lighter, and more flexible than copper or even standard optical cables. They offer transparent EDID and HDCP support with no signal attenuation and reduced risk of EMI and RFI interference. CLS-AOCU/CH cables are an ideal solution for maximizing signal integrity in critical AV installations.

Key Features

• Video Resolution - Up to 4K@60Hz (4:4:4)
• High Data Transfer Rate - Up to 18Gbps
• Embedded Audio - PCM 8-channel, Dolby Digital True HD and DTS-HD Master Audio
• HDMI Support - HDCP 2.2/1.4, HDR, EDID
• High-Quality Connectors - 24K gold-plated, corrosion-resistant and best possible connectivity
• Reduced EMI & RFI
• Thin Construction - 4.7mm diameter
• Jacket Construction - Plenum rated
• RoHS 2011/65/EU, CE, FCC Compliant
• Varied Selection of Lengths - Available in versions from 5 to 30m (15 to 98ft)

Technical Specifications

VIDEO
Max Resolution
4K@60Hz
Supported Color Spaces
RGB, YCbCr, xvYCC, BT.2020
HDMI Support
HDR, HDCP 2.2/1.4, EDID
AUDIO
Supported Audio Formats
DTS HD 7.1, Dolby TrueHD
PHYSICAL
USB-C Source
On a male HDMI type A, 24K gold-plated
HDMI Display
On a male HDMI type A, 24K gold-plated
GENERAL
Cable Type
Hybrid with 4x polymer insulated glass fibers
Copper Type
30-20 AWG tinned copper wire
Flammability
Plenum Rated
MECHANICAL
Cable Bending Radius
20mm
JACKET
Color
Black
Diameter
4.7 +/ - 0.2mm
POWER
Consumption
< 1.5W
ENVIRONMENTAL CONDITIONS
Operating Temperature
0-50C
Storage Temperature
-20-70C
STANDARDS COMPLIANCE - EC VERIFIED
Safety
CE/FCC
REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
Environmental
REACH, RoHS 2011/65/ EU
