Condition: New

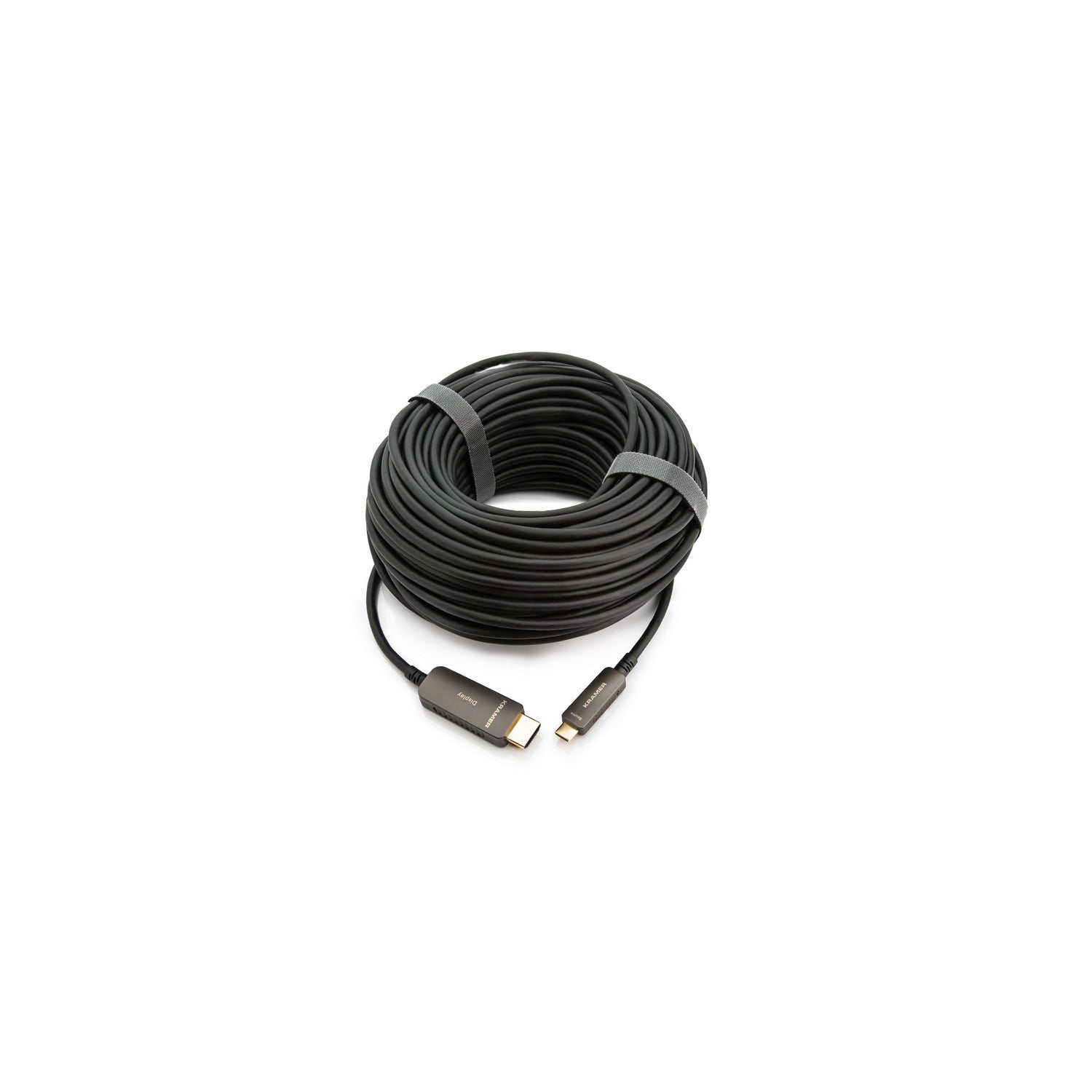

Kramer CP‑AOCU/CH Active Optical 4K USB‑C Male to HDMI Male Cable, Plenum Rated
The Kramer CP‑AOCU/CH is a high-performance hybrid active optical cable that extends USB‑C to HDMI with full 4K@60 Hz (4:4:4) signal integrity up to 98 ft. Its thin 4.7 mm plenum-rated jacket allows flexible routing in professional AV and building infrastructure while ensuring compliance with fire safety standards.
Supporting HDMI features like HDCP 2.2/1.4, HDR, embedded audio, EDID pass-through, and low EMI/RFI interference, this cable is ideal for modern USB‑C laptops, tablets, or docking stations to high-resolution HDMI displays. No external power is required.
Key Features
- Connector: USB‑C Male → HDMI Type‑A Male (24 K gold‑plated)
- Max Resolution: 4K@60 Hz (4:4:4)
- Data Rate: 18 Gbps
- Audio: PCM 8‑channel, Dolby TrueHD, DTS‑HD MA
- HDMI Support: HDCP 2.2/1.4, HDR, EDID
- Cable OD: 4.7 mm, bend radius 20 mm
- Type: Active optical with polymer fibers + copper conductors
- Jacket: Plenum rated, low smoke & halogen free
- Power: <1.5 W, bus-powered
- Certifications: CE, FCC, RoHS, REACH
Technical Specifications
- Lengths: 15 ft, 33 ft, 50 ft, 66 ft, 98 ft
- Bend Radius: 20 mm
- Cable Construction: 4 polymer fibers + 30–20 AWG copper conductors
- Diameter: 4.7 mm ±0.2 mm
- Temperature Range: 0–50 °C operating, –20–70 °C storage
- Power Consumption: <1.5 W
What’s Included
- One CP‑AOCU/CH active cable, selected length
