Condition: New

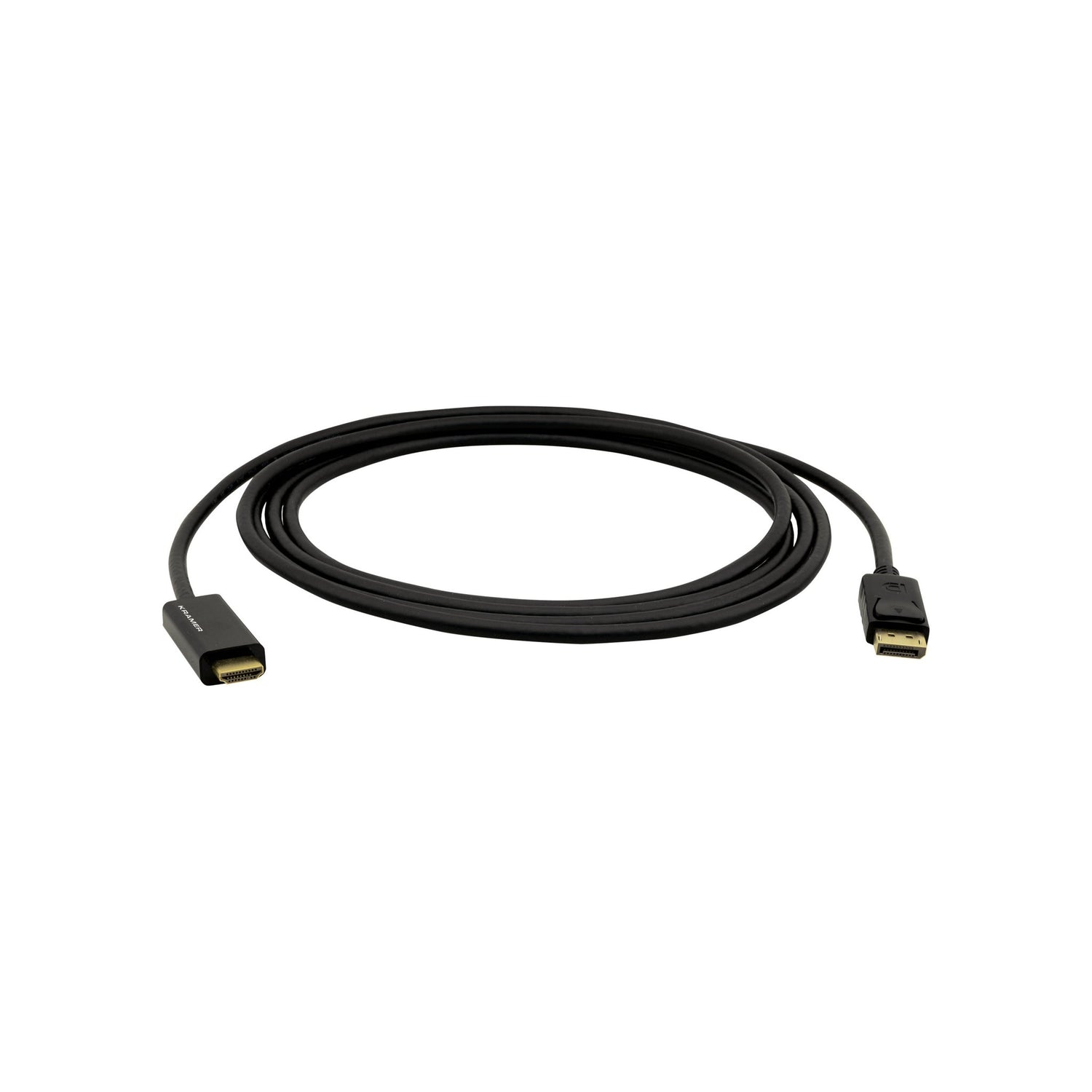

Kramer DisplayPort Male to HDMI Male Active Cable
The Kramer C-DPM/HM/UHD enables connection of DisplayPort™-equipped PCs or laptops directly to HDMI displays without additional adapters. This active cable performs true DP-to-HDMI conversion even on non-DP++ sources and works in both single-mode and dual-mode DisplayPort outputs.
Supporting up to 4K@60 Hz with 4:4:4 chroma and HDCP 2.2 protection, it delivers high-bandwidth video conversion (18 Gbps total) in a compact, plug-and-play format. Available in three lengths to suit various installation requirements.
Key Features
- Resolution Support: Up to 4K@60 Hz (4:4:4)
- Plug and Play: No driver required
- Active Conversion: True DP-to-HDMI conversion for non-DP++ sources
- Content Protection: HDCP 2.2 compliant
- Connector Type: DisplayPort (M) to HDMI (M)
- Bandwidth: 18 Gbps total (6 Gbps per lane)
- Lengths Available: 0.90 m, 1.80 m, 3.00 m
Technical Specifications
- Supported Resolutions: All VESA up to 4K@60 Hz (4:4:4)
- HDCP Support: HDCP 2.2
- Data Rate: 18 Gbps total
- Modes: DisplayPort single-mode & dual-mode
- Jacket: PVC, black (no shielding details published)
Available Variations
- C-DPM/HM/UHD-3: 0.90 m (3 ft) – 4K@60 Hz (4:4:4)
- C-DPM/HM/UHD-6: 1.80 m (6 ft) – 4K@60 Hz (4:4:4)
- C-DPM/HM/UHD-10: 3.00 m (10 ft) – 4K@60 Hz (4:4:4)
What’s Included
- Kramer C-DPM/HM/UHD active DisplayPort to HDMI cable (selected length)
