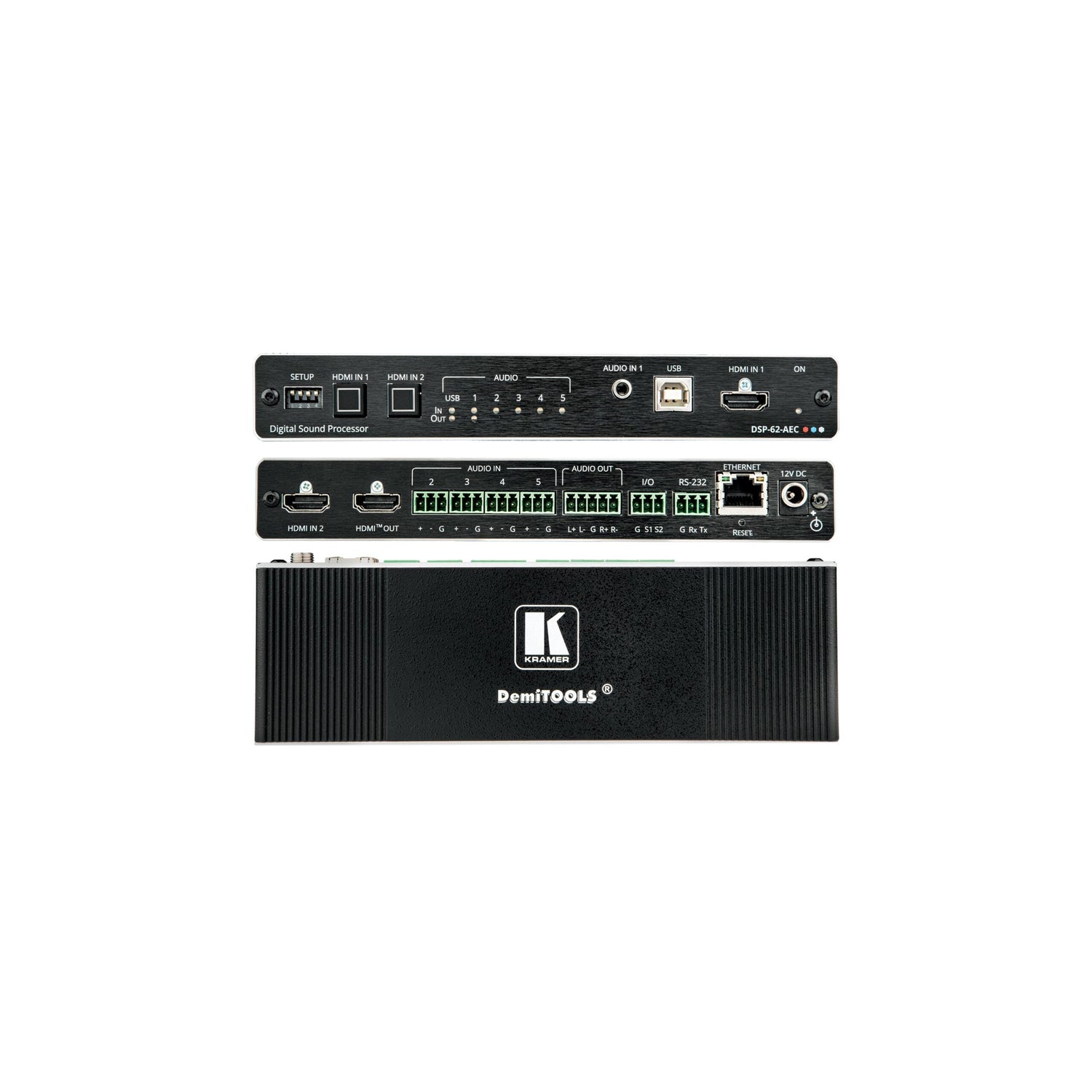

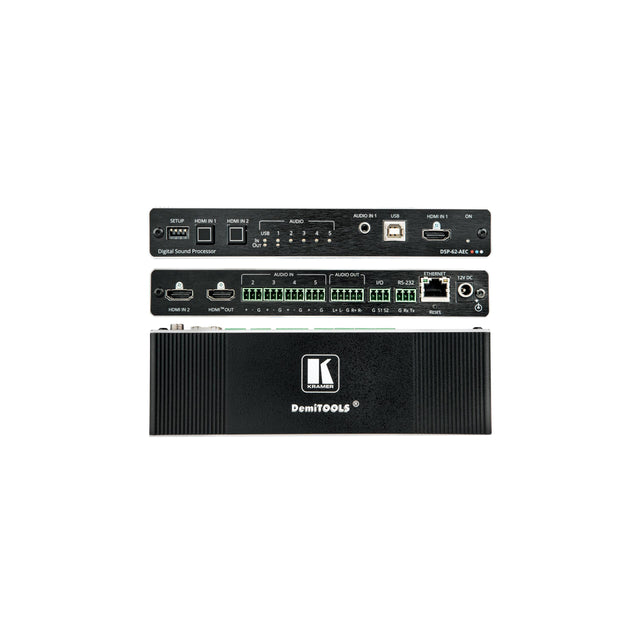

Kramer DSP-62-AEC 6 x 2 PoE Audio Matrix with DSP and AEC
DSP-62-AEC is a member of the Kramer XSPerience family of DSP products. DSP-62-AEC is an advanced, professional 6 x 2 audio matrix switcher that includes multi-channel DSP, AEC (Acoustic Echo Cancellation), HDMI de-embedding, and class compliant USB audio interface. The comprehensive and user-friendly graphic interface makes configuring every detail of your audio system intuitive and easy.
Key Features
- Multi-Channel DSP
- AEC (Acoustic Echo Cancellation)
- Intuitive and Comprehensive Configuration and Control
- HDMI audio de-embedding
- Class compliant USB audio interface
Technical Specifications
INPUTS
2 HDMI
On female HDMI connectors
4 Balanced Mono Audio
On 3-pin terminal blocks
1 Unbalanced Stereo Audio
On a 3.5mm mini jack
OUTPUTS
1 Balanced Stereo Audio
On a 5-pin terminal block connector
1 HDMI
On a female HDMI connector
PORTS
1 USB Audio
On a female mini USB-B connector
1 RS-232
On a 3-pin terminal block
1 Ethernet
On an RJ-45 female connector
LINE/MIC LEVEL INPUT
Impedance Unbalanced
7.6k
Impedance Balanced
3.8k
Impedance Microphone
3.8k
Nominal level Unbalanced
0dBV (0.77Vrms)
Nominal level Balanced
+6.8dBu (1.54Vrms)
Maximum level (Balanced)
+8dBu (2Vrms)
Sensitivity Unbalanced
Full power @ 0dBV (0.77Vrms)
Sensitivity Balanced
Full power @ +6dBu (1.54Vrms)
Phantom Power
48 VDC on/off per input
LINE LEVEL OUTPUT
Impedance Unbalanced / Balanced
500
Frequency Response
20Hz - 20kHz @ +/-1dB
S/N Ratio
>85dB, 20Hz - 20kHz, at unity gain (unweighted)
Audio THD + Noise
<0.01%, 20 Hz - 20kHz, at unity gain
Crosstalk
<-85dB, 20Hz to 20kHz
VIDEO
Max Bandwidth
18Gbps (6Gbps per graphic channel)
Max Resolution
4K@60Hz (4:4:4)
Compliance
HDMI and HDCP 2.2
USER INTERFACE
Indicators
Power and audio port status LEDs
Controls
Input selection buttons
CONTROL RS-232
Baud Rate
115200
SUPPORTED PC WEB BROWSERS
Windows
Chrome
POWER
Source
PoE or 12V DC 5A adapter
Consumption
630mA
ENVIRONMENTAL CONDITIONS
Operating Temperature
0 to +40C (32 to 104F)
Storage Temperature
-40 to +70C (-40 to 158F)
Humidity
10% to 90%, RHL non-condensing
REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
Safety
CE, FCC
ENCLOSURE
Size
DemiTOOLS
Type
Aluminum
Cooling
Convection
ACCESSORIES
Included
One 2 meter USB 2.0 type-A male to type-B male cable, power adapter, bracket set, rubber feet
PRODUCT DIMENSIONS
19.05cm x 5.96cm x 2.74cm (7.50” x 2.35” x 1.08”) W, D, H
PRODUCT WEIGHT
0.2kg (0.4lbs) approx.
SHIPPING DIMENSIONS
34.50cm x 16.50cm x 5.20cm (13.58” x 6.50” x 2.05”) W, D, H
SHIPPING WEIGHT
0.6kg (1.3lbs) approx.
