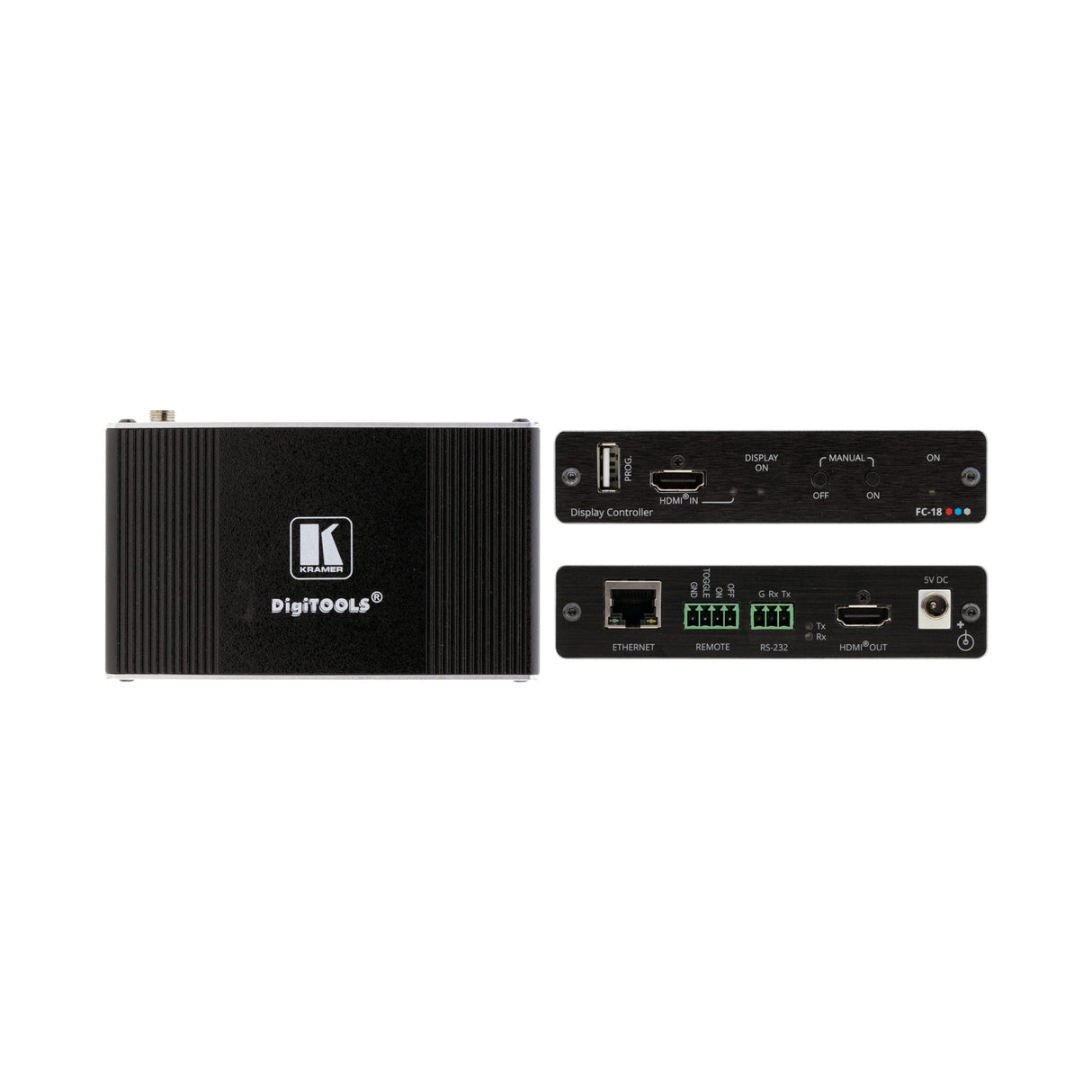

Kramer FC-18 4K HDR Display On/Off Controller
Kramer FC-18 4K HDR Display On/Off Controller
Free Shipping
Kramer FC-18 4K HDR Display On/Off Controller
FC-18 is a display ON/OFF controller for 4K@60Hz (4:4:4) HDR HDMI signals. It accepts and outputs an HDMI signal after reclocking and equalizing. On detection of the onset of an input signal FC-18 sends an ON command to the display or projector and on detection of the loss of the input signal FC-18 sends an OFF command. FC-18 can also be used to control a display device manually via front panel buttons, Ethernet or contact closure switches.
Key Features
- Save on Power Costs - Shut down display devices automatically when not in use.
- Facilitate Meeting Setups - Just plug in the AV source and the display screen or projector automatically turn on. No more searching for the power button.
- high-performance HDMI Acceptor - Supports 4K@60Hz (4:4:4) HDR10, HDCP 2.2/1.4 signals at 18G (6G per channel) data rate, CEC (by-pass), Dolby Vision (by-pass) as specified in HDMI 2.0.
- Variety of Automatic Control Formats - Commands are sent to the display device via CEC, RS-232, or Ethernet.
- Variety of Manual Control Formats - Manually turn the display device ON and OFF via front panel button and RS-232/CEC commands, Ethernet, contact closure switches.
- Data Tunneling - Supports data tunneling between the RS-232 port and the Ethernet ports.
- Easy Installation - Compact DigiTOOLS fan-less enclosure for surface mounting or side-by-side mounting of 3 units in a 1U rack space with the recommended rack adapter.
Technical Specifications
INPUTS
1 HDMI: On a female HDMI connector
OUTPUTS
1 HDMI: On a female HDMI connector
PORTS
1 Ethernet: On an RJ-45 connector
1 RS-232: On a 3-pin terminal block
1 USB: On a female USB type-A connector
VIDEO
Max. Resolution: 4K@60Hz (4:4:4)
Content Protection: HDCP 1.4 / 2.2
HDMI Support: CEC (by-pass), Dolby Vision (by-pass) as specified in HDMI 2.0
USER INTERFACE
Control: Manual ON and OFF buttons
Indicators: Display ON/OFF status, RS-232 communication and power LEDs
POWER
Source: 5V DC
Consumption: 580mA
ENVIRONMENTAL CONDITIONS
Operating Temperature: 0 to +40C (32 to 104F)
Storage Temperature: -40 to +70C (-40 to 158F)
Humidity: 10% to 90%, RHL non-condensing
ACCESSORIES
Included: Power adapter, bracket set
PRODUCT DIMENSION
12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT
0.3kg (0.6lbs) approx.
