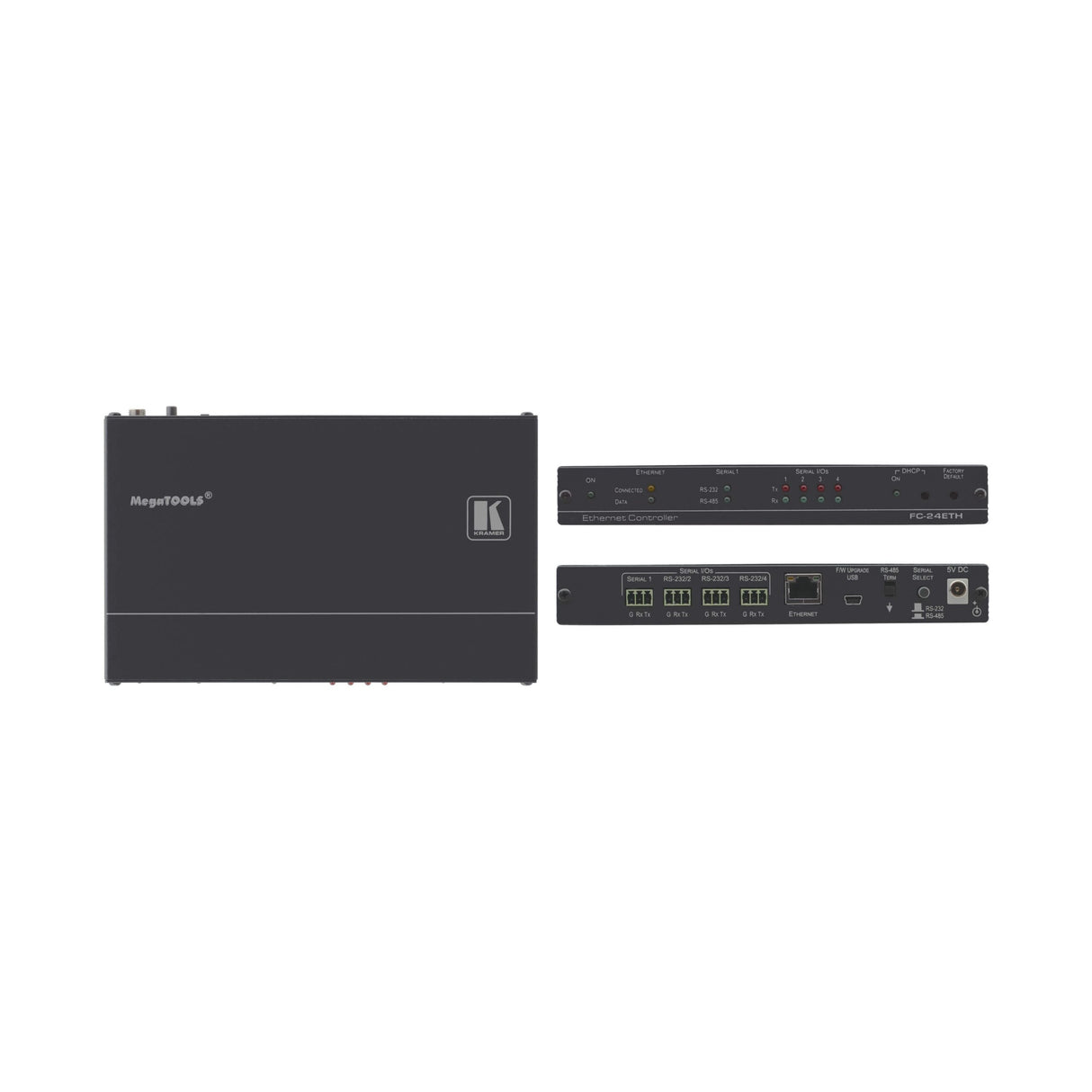

Kramer FC-24ETH 4-Port Serial Control Gateway
The FC-24ETH is an Ethernet control gateway, capable of plug and play deployment over a customer Ethernet LAN for remote control of customer controlled devices via bidirectional RS-232 or RS-485 serial control connections. Multiple control clients can be IP-connected to the FC-24ETH control gateway for concurrent control of two RS-232 or RS-485 controllable devices, such as AV scalers, video displays, and audio amplifiers.
Key Features
- 1 RS-485 or RS-232 Selectable Bidirectional Control Port - Controls a device via bidirectional serial control protocols
- 3 RS-232 Bidirectional Control Ports - Control devices via bidirectional RS-232 serial control protocols
- 1 Ethernet Control Port - Remote protocol-based control port
- Built-in Web Pages - Remote browser-based control and support
- Simultaneous IP Control Communication - With up to 40 IP control clients
- Mini USB Port - For firmware upgrades and local technical services
- Easy Installation - Plug & play IP auto-setup deployment for simple and cost-reducing installation
Technical Specifications
PORTS
1 RS-232/RS-485 selectable and 3 RS-232 serial on 3-pin terminal blocks, 1 Ethernet on an RJ-45 connector, 1 mini USB connector for local services
SUPPORTED SERIAL PORT BAUD RATES
1200, 2400, 4800, 9600, 19200, 38400, 57600, 15200bps
RS-232 COMMUNICATION
Transparent up to 115200bps
MAXIMUM DATA HANDLING OF DEVICE
Up to 150kbps summed on all ports
CONTROLS
Serial Select button, RS-485 terminator switch, DHCP and Factory Default buttons
INDICATORS
Power, Ethernet, Serial 1, Serial I/O, and DHCP status LEDs
POWER CONSUMPTION
5V DC, 250mA
OPERATING TEMPERATURE
0 to +40C (32 to 104F)
STORAGE TEMPERATURE
-40 to +70C (-40 to 158F)
HUMIDITY
10% to 90%, RHL non-condensing
COOLING
Convection
ENCLOSURE TYPE
Aluminum
INCLUDED ACCESSORIES
Power adapter
VIBRATION
ISTA 1A in carton (International Safe Transit Association)
SAFETY REGULATORY COMPLIANCE
CE
ENVIRONMENTAL REGULATORY COMPLIANCE
Complies with appropriate requirements of RoHs and WEEE
PRODUCT DIMENSION
18.75cm x 11.50cm x 2.54cm (7.38" x 4.53" x 1.00" ) W, D, H
PRODUCT WEIGHT
0.4kg (1.0lbs) approx.
SHIPPING DIMENSION
34.50cm x 16.50cm x 5.20cm (13.58" x 6.50" x 2.05" ) W, D, H
SHIPPING WEIGHT
0.7kg (1.5lbs) approx.
