Kramer Galil 2-C 2.5 Inch 8 Ohm Ceiling Speaker Single Unit White
Kramer Galil 2-C 2.5 Inch 8 Ohm Ceiling Speaker Single Unit White
Kramer Galil 2-C 2.5 Inch 8 Ohm Ceiling Speaker Single Unit White

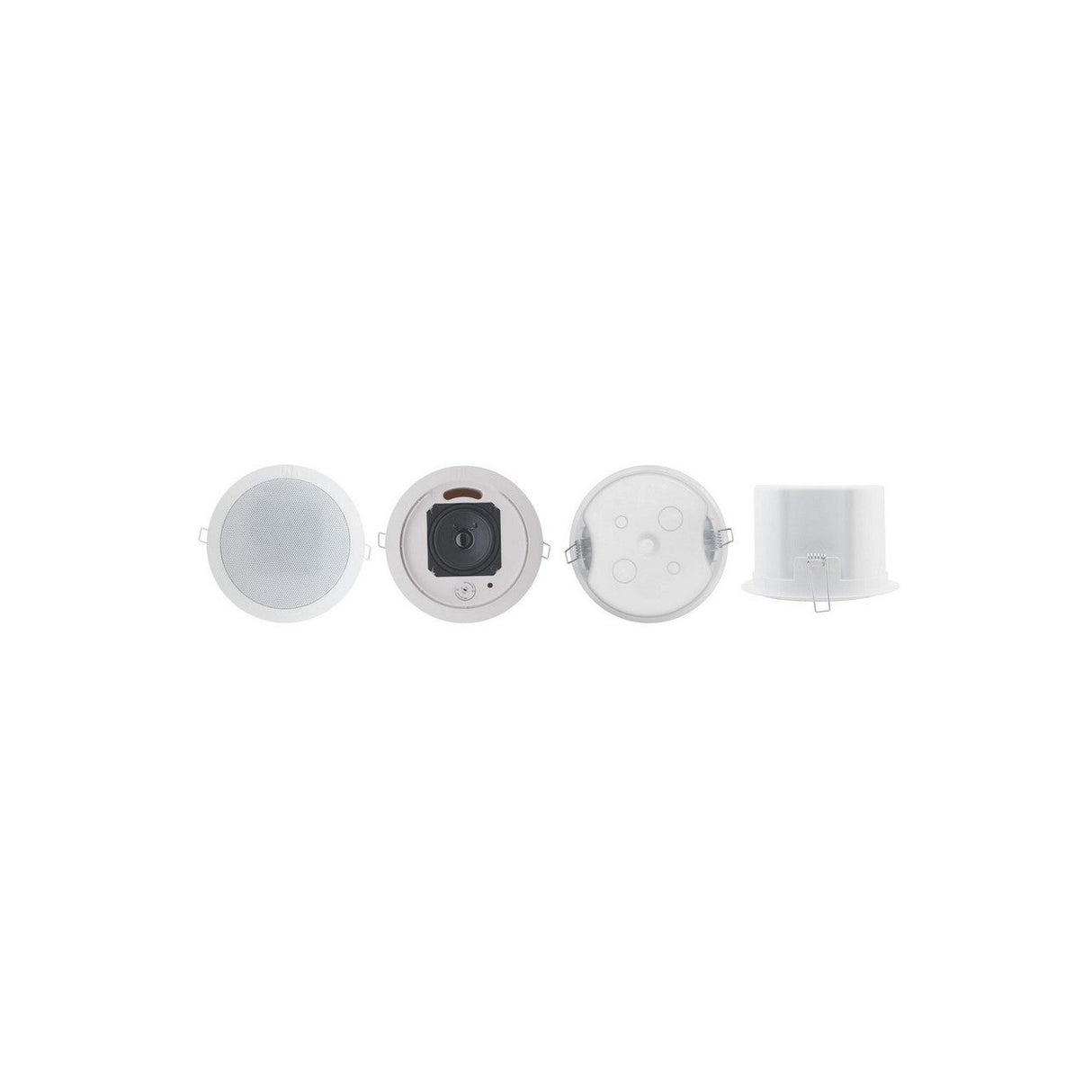

The Galil 2C is a 2.5” full?range closed?back speaker with ceramic terminals and a plastic self?extinguishing backcan. It is especially designed to meet the requirements of fire alarm systems in public spaces and is EN 5424 certified.
Key Features
- Type Closedback ceiling speaker.
- Woofer - 2.5” paper cone.
- Impedance - 8 (transformer tap in off position).
- Power Handling - 10W RMS, 30W continuous program.
- Transformer Taps - 70V - 3W/1.5W/0.75W/8/10W/Off (LoZ); 100V - 6W/3W/1.5W/8/10W, Off (LoZ).
- Packaging Priced individually but sold in cartons of 18
Technical Specifications
DESCRIPTION
Fullrange closedback ceiling speaker
FREQUENCY RESPONSE
90Hz to 20kHz @-15dB, 150Hz to 20kHz @-3dB
WOOFER
2.5” (68mm) paper cone with rubber surround
IMPEDANCE
8 (transformr tap in off position)
TRANSFORMER TAPS
70V - 3W/1.5W/0.75W/8/10W/Off (LoZ)
100V - 6W/3W/1.5W/8/10W, Off (LoZ)
SENSITIVITY
69dB SPL, 10W@4m
MAX SPL
Continuous: 79.3dB SPL, 10W@4m
POWER HANDLING
10W RMS, 30W continuous program
DIRECTIVITY FACTOR (Q)
3.7, averaged 1kHz to 10kHz
DIRECTIVITY INDEX (DI)
5.7dB averaged 1kHz to 10kHz
COVERAGE ANGLE
@-6DB
500Hz-240°, 1kHz-160°, 2kHz-110°, 4kHz-105°
INPUT CONNECTOR
Ceramic terminals
ENCLOSURE PROTECTION DEGREE
IP21C
MATERIALS
Frame, aluminum grille, safety cord attached to grille, plastic backcan (selfextinguishing ABS according to UL94 V-0)
OPERATING TEMPERATURE
-10° to +55°C (14° to 131°F)
STORAGE TEMPERATURE
-40° to +70°C (-40° to 158°F)
HUMIDITY
10% to 90%, RHL noncondensing
WEIGHT PER SINGLE SPEAKER
0.5kg (1.1bs)
INSTALLATION CLEARANCE
Mounting depth: 9.5cm (3.74")
ACCESSORIES
Cutout template (on the Web)
COLORS
White
