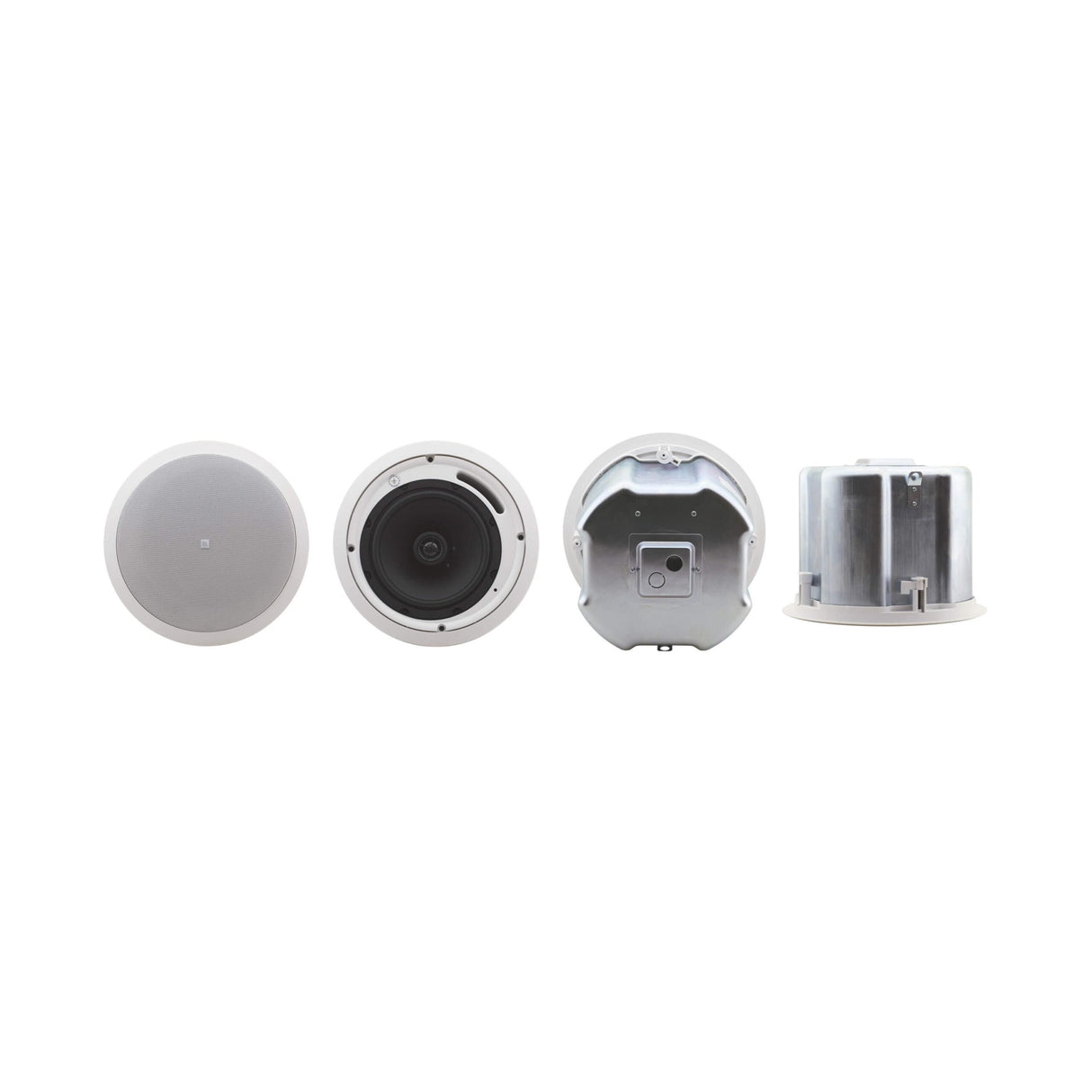

Kramer Galil 8-C 8 Inch 2-Way Close-Back Ceiling Speakers, White Pair
Kramer Galil 8-C 8 Inch 2-Way Close-Back Ceiling Speakers, White Pair
Free Shipping
Kramer Galil 8-C 8 Inch 2-Way Close-Back Ceiling Speakers, White Pair
The Galil 8-C Closed-back Ceiling Speaker features a multi-tap power transformer for selecting 8ohms (bypassing the transformer) or 70V/100V power settings that are suitable for an array installation.
Key Features
- Type - 2-way coaxial speaker
- Woofer - 8ā polypropylene cone
- Tweeter - 1ā silk dome
- Impedance - 8ohms
- Power Handling - 64W RMS, 180W continuous program
- Transformer Taps - 70V: 64W/32W/16W/8W/4W/Off (Lo-Z); 100V: 64W/32W/16W/8W/Off (Lo-Z)
- UL 1480 and 2043 Listed
- Package Includes - 2 speakers (1 pair), ceiling mounting kit, template and user manual
Technical Specifications
DESCRIPTION
2-way closed-back ceiling speakers
FREQUENCY RESPONSE
65Hz to 20kHz @-10dB, 85Hz to 20kHz @-3dB
WOOFER
8ā (200mm) polypropylene with rubber surround
TWEETER
1ā (25.4mm) silk dome
IMPEDANCE
8ohms (transformer tap in off position)
TRANSFORMER TAPS
70V - 64W/32W/16W/8W/4W/Off (Lo-Z), 100V - 64W/32W/16W/8W/Off (Lo-Z)
SENSITIVITY
89dB SPL, 1W@1m
MAX SPL
Continuous: 104dB, peak: 107dB
POWER HANDLING
64W RMS, 180W continuous program
CROSSOVER FREQUENCY
6.3kHz
COVERAGE ANGLE
110
DIRECTIVITY FACTOR (Q)
4.6 averaged 1kHz to 10kHz
DIRECTIVITY INDEX (DI)
6.5dB averaged 1kHz to 10kHz
INPUT CONNECTOR
Terminal block
MATERIALS
ABS bezel, aluminum grill, metal back can
OPERATING TEMPERATURE
0 to +40C (32 to 104F)
STORAGE TEMPERATURE
-40 to +70C (-40 to 158F)
HUMIDITY
10% to 90%, RHL non-condensing
WEIGHT PER SINGLE SPEAKER
4.9kg (10.8lbs) approx
SHIPPING WEIGHT (FOR PAIR)
13.6kg (30lbs) approx
INSTALLATION CLEARANCE
Mounting depth: 22.6cm (8.9ā)
CUTOUT DIAMETER
27.3cm (10.75")
ACCESSORIES
Installation bracket, safety cord attached to grill, ceiling mounting kit
COLOR
White
