Condition: New

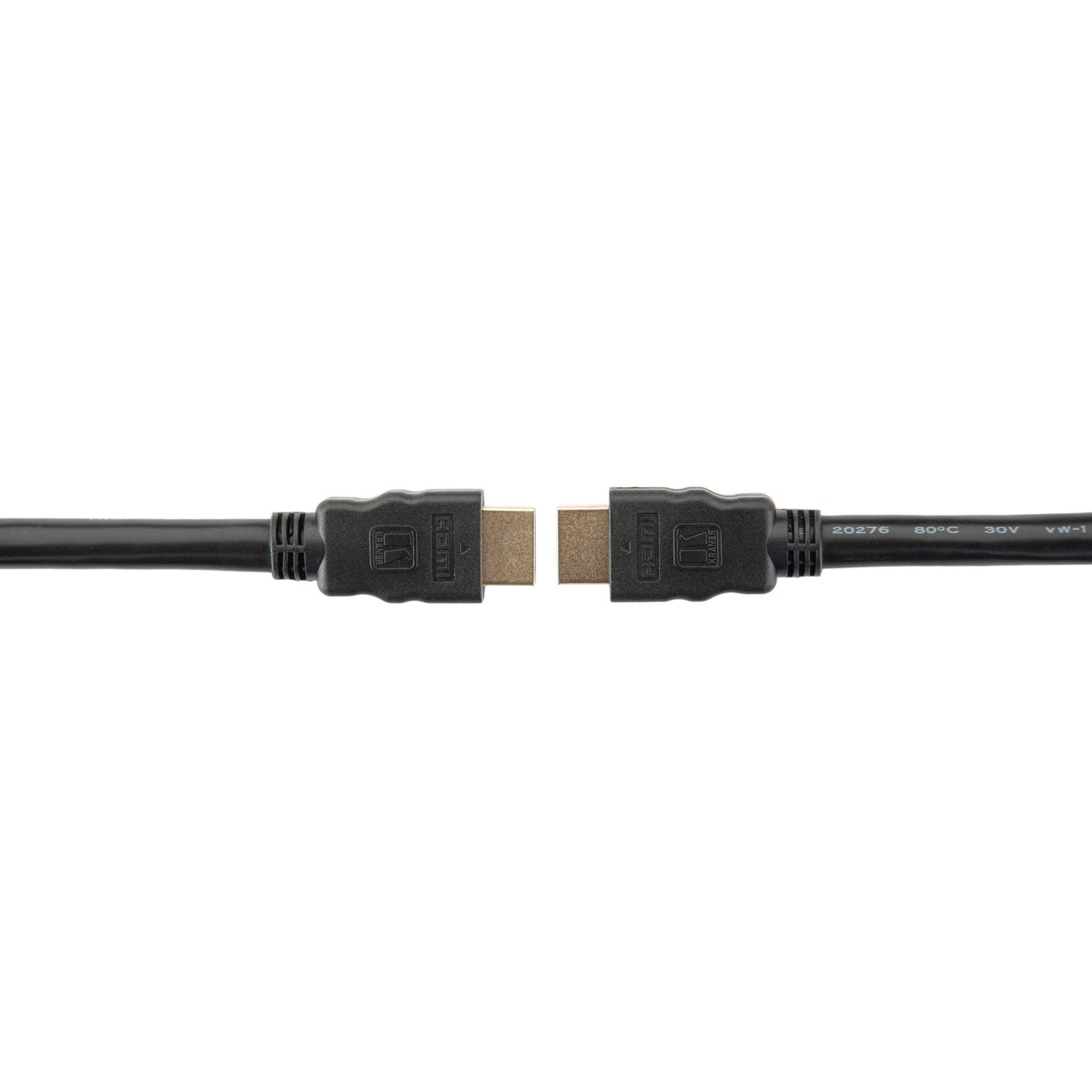

Kramer High Speed HDMI Cable with Ethernet
The Kramer C–HM/ETH is a high-speed HDMI cable featuring an Ethernet channel, designed for reliable digital video, audio, and network connectivity in professional AV installations. Its triple-shielded PVC jacket and 24 K gold-plated HDMI Type A connectors ensure minimal signal loss and maximum corrosion resistance.
Supporting resolutions up to 4K@60 Hz with full 4:4:4 color on shorter runs, the C–HM/ETH series is perfect for conference rooms, digital signage, and residential home theaters requiring HDMI Ethernet Channel, Audio Return Channel (ARC), and advanced audio formats.
Key Features
- Connector Type: HDMI Type A (M) to HDMI Type A (M), 24 K gold-plated
- Ethernet Channel: HDMI Ethernet Channel (HEC) for networked AV devices
- Deep Color & x.v.Color™: Up to 48-bit color depth, enhanced gamut support
- Lip Sync & ARC: Audio Return Channel and synchronized lip-sync processing
- Audio Formats: 7.1 PCM, Dolby TrueHD™, DTS-HD Master Audio™
- CEC: Consumer Electronics Control for device interoperability
-
Max. Data Rate:
- 3–15 ft: 18 Gbps (4K@60 Hz, 4:4:4)
- 25–35 ft: 10.2 Gbps (4K@60 Hz, 4:2:0)
- 50 ft: 4.95 Gbps (1080p@60 Hz)
-
Length & Resolution Options:
- C–HM/ETH–3: 0.90 m (3 ft) — 4K@60 Hz (4:4:4)
- C–HM/ETH–6: 1.80 m (6 ft) — 4K@60 Hz (4:4:4)
- C–HM/ETH–10: 3.00 m (10 ft) — 4K@60 Hz (4:4:4)
- C–HM/ETH–15: 4.60 m (15 ft) — 4K@60 Hz (4:4:4)
- C–HM/ETH–25: 7.60 m (25 ft) — 4K@60 Hz (4:2:0)
- C–HM/ETH–35: 10.70 m (35 ft) — 4K@60 Hz (4:2:0)
- C–HM/ETH–50: 15.20 m (50 ft) — 1080p@60 Hz
- Operating Temperature: –20 °C to +80 °C
- Flammability Rating: CL3/FT4, RoHS compliant
Technical Specifications
- Impedance: 100 Ω nominal
- Voltage Rating: 30 V
- Conductor Resistance: 239 Ω/km (28 AWG), 150 Ω/km (26 AWG) @ 20 °C
What's Included
- 1x Kramer C–HM/ETH cable, model & length per selection
