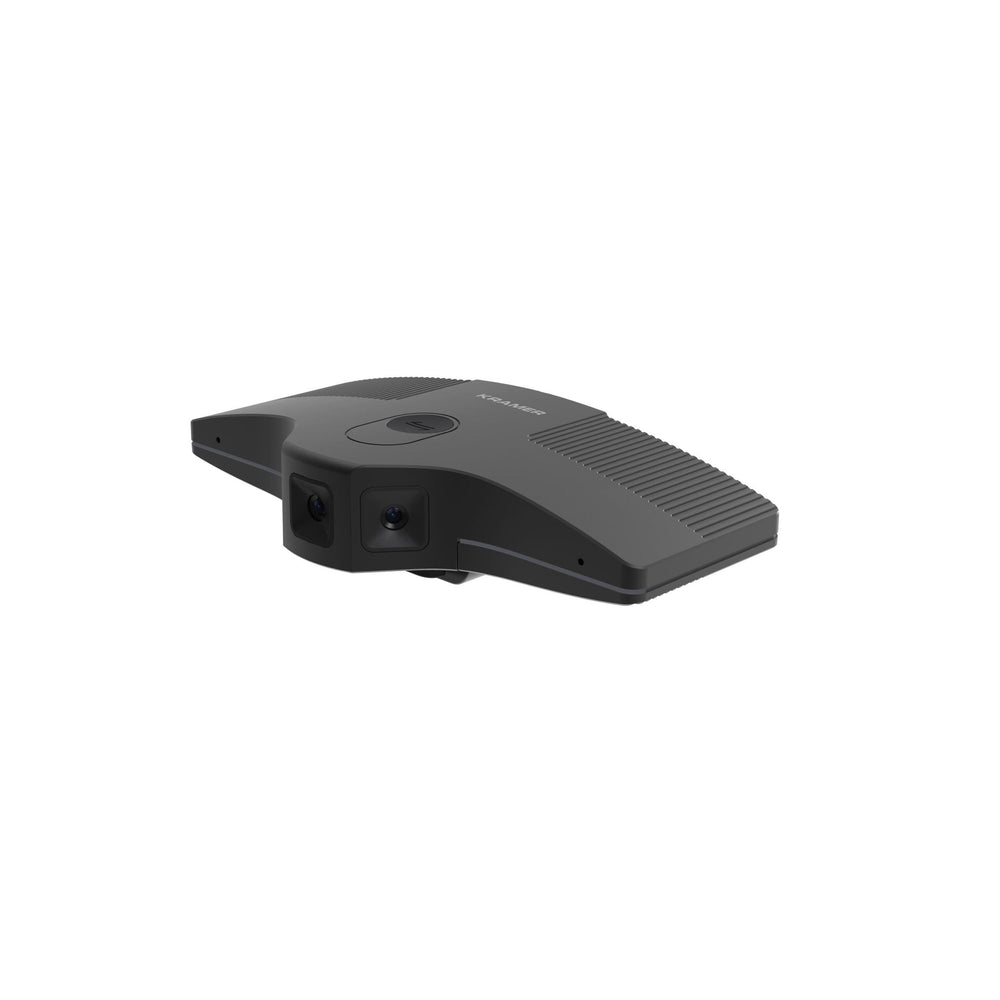

Kramer K-180Mini 180 Degree 4K Panocam
Kramer K-180Mini 180 Degree 4K Panocam
Free Shipping
Kramer K-180Mini 180 Degree 4K Panocam
Get the full picture even in the smallest meeting room. This 4K wall-mount camera captures clear video across a full 180 Degrees field of view, ensuring even people sitting close to the camera and on the far sides of the room are clearly seen. It automatically recognizes and zooms in on meeting participants, follows speakers as they move around, and auto-adjusts when attendee numbers change.
Key Features
- 12 MP cameras and 4K definition provide clear, sharp video
- Auto-stitching of split frames eliminates distortion
Technical Specifications
PORTS
1 USB 2.0 type A
On a USB connector
1 USB-C 2.0
On a USB-C connector
VIDEO
Output Formats
MJPG
Output Formats
H.264
Output Formats
YUY2
Resolutions
YUY2 (30fps): 640x480, 640x360, 480x270, 352x288, 320x240
Resolutions
MJPG (30fps): 3840x2160(24fps), 3840x1376, 3840x962, 2560x1440, 1920x1080, 1280x720, 1024x576, 960x544, 640x480, 640x360
Resolutions
H264 (30fps): 1280x720, 1024x576, 960x544, 640x480, 640x360
FOCUS
Method
Fixed
Distance
1.5 meters
CAMERA
Max. Field of View (FOV)
180
Depth of Field (DOF)
0.5 to 5 meters
Aperture
2.2
Minimum Illumination
10Lux
MICROPHONE
Quantity
2
Pickup Distance
Up to 4 meters
CONTROLS
Top Button
Selectable layouts
App
Layout configuration via PC
POWER
Consumption
5V/950mA 4.7W
ENVIRONMENTAL CONDITIONS
Operating Temperature
0 Degrees to +40 Degrees C (32 Degrees to 104 Degrees F)
Storage Temperature
-20 Degrees to +60 Degrees C (-4 Degrees to 140 Degrees F)
Humidity
10% to 90%, RHL non-condensing
Altitude
Below 5000 meters
REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
Safety
CE, FCC
Environmental
RoHS, WEEE
ENCLOSURE
Type
Aluminum
GENERAL
Net Dimensions (W, D, H)
14.7cm x 7.4cm x 3.5cm (5.8” x 2.9” x 1.4”)
Shipping Dimensions (W, D, H)
17.6cm x 17.6cm x 4.6cm (6.9” x 6.9” x 1.8”)
Net Weight
0.24kg (0.53lbs) approx
Shipping Weight
0.59kg (1.3lbs) approx
ACCESSORIES
Included
1 USB-C cable, wall bracket, and screws set
PRODUCT WEIGHT
0.2kg (0.5lbs) approx.
SHIPPING DIMENSIONS
17.60cm x 17.60cm x 4.60cm (6.93” x 6.93” x 1.81”) W, D, H
SHIPPING WEIGHT
0.6kg (1.3lbs) approx.
PRODUCT DIMENSIONS
14.70cm x 7.40cm x 3.50cm (5.79” x 2.91” x 1.38”) W, D, H
