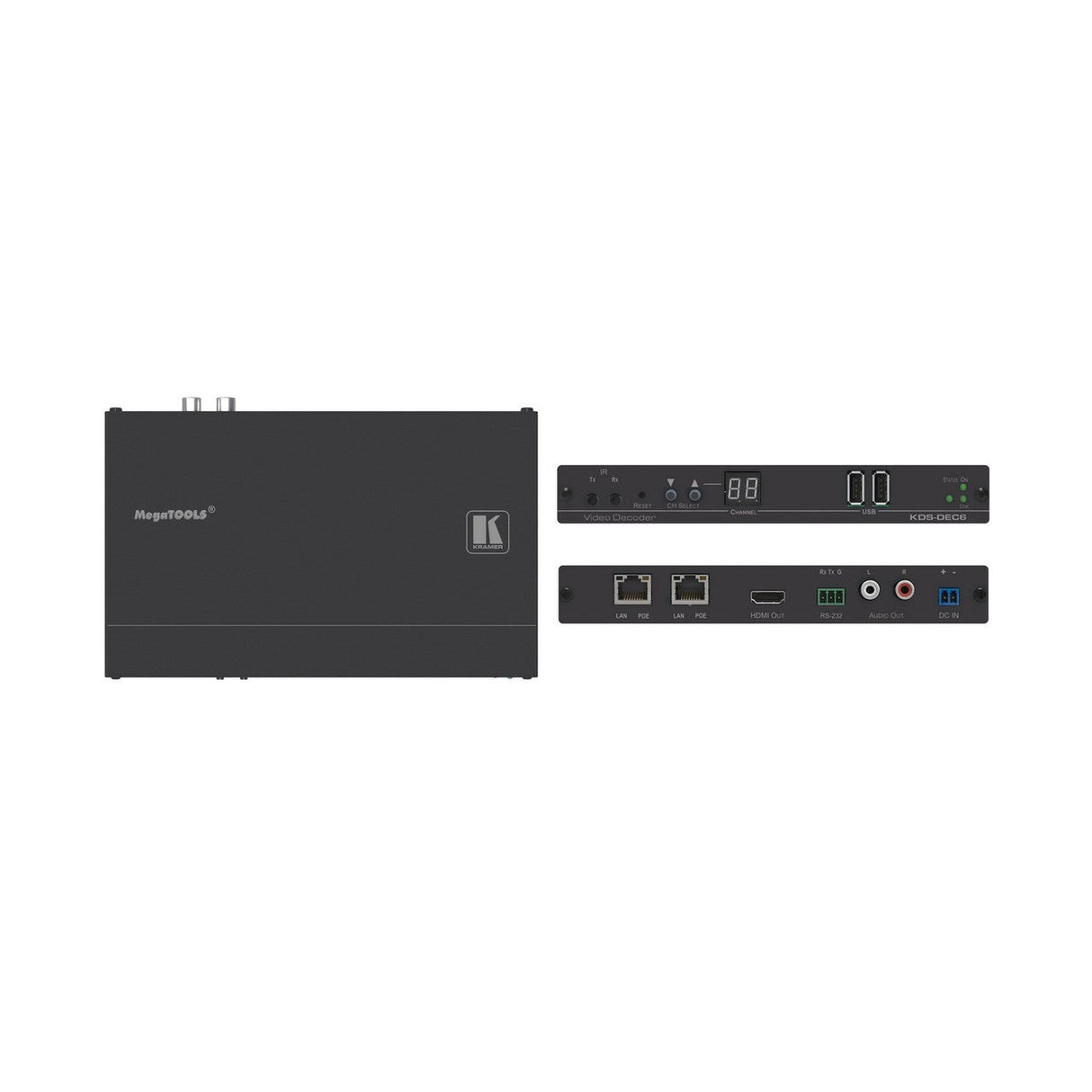

Kramer KDS-DEC6 4K60 HDCP 2.2 Video Decoder

The KDS?DEC6 decoder provides streaming over an IP network that carries 4K@60Hz (4:2:0) video, audio, IR, RS?232, USB over IP with HDCP 2.2 in unicast (one?to?one) or multicast (many?to?many) configurations.

Key Features

• Highperformance, realtime 4K60 4:2:0 video/audio/RS-232/IR/USB over standard 1G network
• Supports HDCP 2.2
• Scalable enterprise grade one to many/many to many/video wall/KVMover IP media distribution
• Managed via Open API/Kramer AV services/Kramer Control
• Size MegaTOOLS Mount 2 units sidebyside in a 1U rack space with the optional RKT2B rack adapter
• Audio U/E

Technical Specifications

INPUTS
1 Ethernet (LAN/PoE) on an RJ-45 connector, 1 IR on 3.5mm mini jacks (Rx)
OUTPUTS
1 HDMI connector, 2 left and right unbalanced stereo audio on RCA connectors, 1 RS-232 on terminal block connectors, 2 USB (type A) ports, 1 IR on 3.5mm mini jacks (Tx), 1 Ethernet on an RJ-45 connector (daisychain LAN)
NETWORK
10M/100M/1000M
NETWORK SWITCH
1G multicast, IMGP snooping nonblocking, Layer 2
STREAMING
Unicast and multicast through RTSP (Real Time Streaming Protocol)
CONTROLS
Reset button, up and down channel buttons, channel 7segment display, STATUS, LINK and ON LEDs
IR
Wideband 20kHz~60kHz bidirectional IR transmission
MANAGEMENT
API, Kramer Control, Kramer AV services (powered by Kramer Network)
VIDEO ENCODING/DECODING
Compression standard MJPEG
HDCP
HDCP 2.2
SCALING AND CROPPING
Built in scaling and cropping for flexible display of source content on the decoder output
BIT RATES
4K peak: 850Mbps, 4K average: 350Mbps, 1080p average: 250Mbps
RESOLUTION
4096x2160@60Hz, 3840x2160@60Hz, 1920×1200@60Hz, 1920×1080@60Hz, 1864x1050@60Hz, 1856x1392@60Hz, 1792x1344@60Hz, 1728x1080@60Hz, 1704x960@60Hz, 1680×1050@60Hz, 1600×1200@60Hz, 1600x1050@60Hz, 1600×900@60Hz, 1536x960@60Hz, 1440×900@60Hz, 1440x576@60Hz, 1440x480@60Hz, 1400×1050@60Hz, 1366x768@60Hz,1360×768@60Hz, 1280×1024@60Hz, 1280×960@60Hz, 1280x800@60Hz, 1280x768@60Hz, 1280×720@60Hz,1224x768@60Hz, 1152x864@60Hz, 1152x720@60Hz, 1024×768@60Hz, 1064x600@60Hz, 1024x384@60Hz, 960x600@60Hz, 848x480@60Hz, 800×600@60Hz, 768x480@60Hz, 720×576@60Hz, 720×480@60Hz, and 640×480@60Hz, 640x400@60Hz, 640x350@60Hz
AUDIO ENCODING/DECODING
Compression standard (analog in/out): AACLC
CHANNELS (HDMI EMBEDDED AUDIO)
PCM 2, 5.1, 7.1 Channel, Dolby Digital 5.1 Channel, Dolby Digital Plus, Dolby Digital TrueHD, DTS 5.1 Channel, DTSES, DTSHD High Resolution, DTSHD Master Audio
POWER OPTIONS
PoE, external PS
POWER CONSUMPTION
48V DC, 370mA max
OPERATING TEMPERATURE
0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE
-40° to +70°C (-40° to 158°F)
HUMIDITY
10% to 90%, RHL noncondensing
OPTIONS
IR cable (PN: 3500-900617), external DC power supply (PN: 100-800070)
PRODUCT DIMENSION
19.00cm x 10.30cm x 2.30cm (7.48" x 4.06" x 0.91" ) W, D, H
PRODUCT WEIGHT
0.6kg (1.2lbs) approx
SHIPPING DIMENSION
34.50cm x 16.50cm x 5.20cm (13.58" x 6.50" x 2.05" ) W, D, H
SHIPPING WEIGHT
0.8kg (1.7lbs) approx
