Condition: New

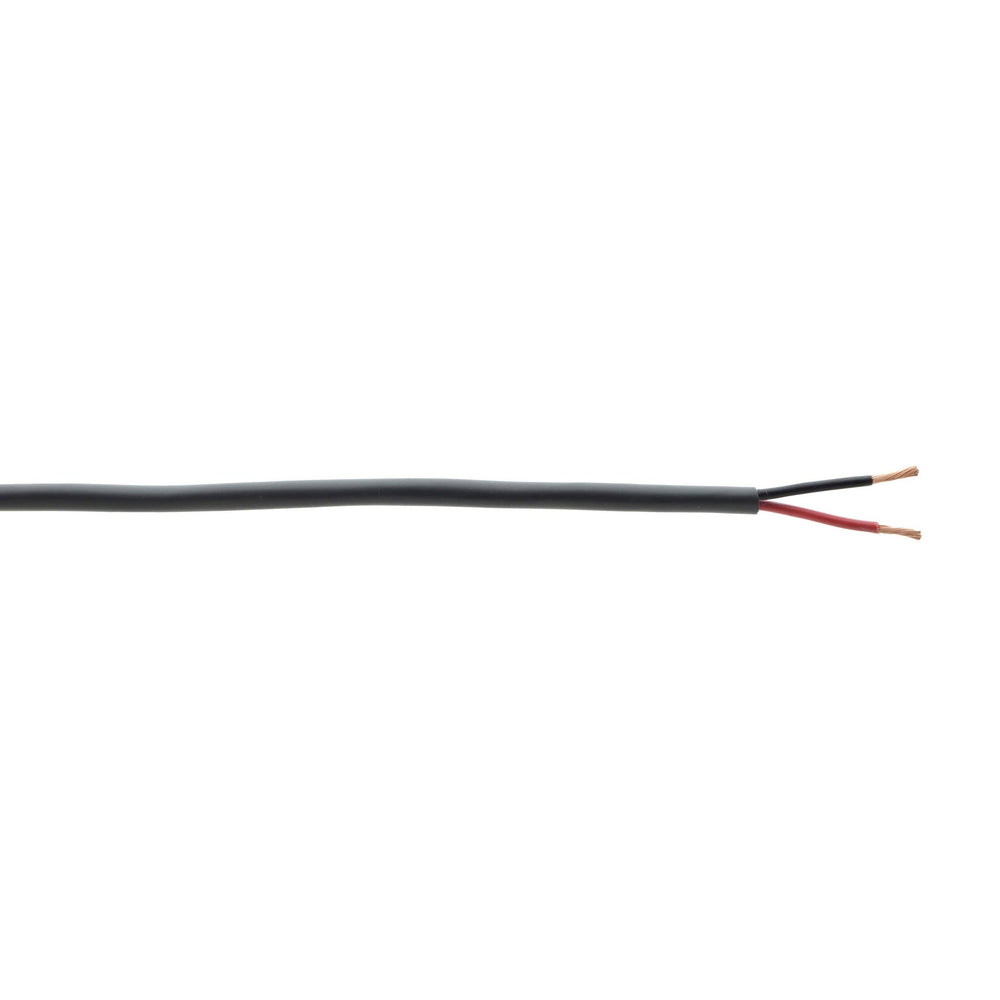

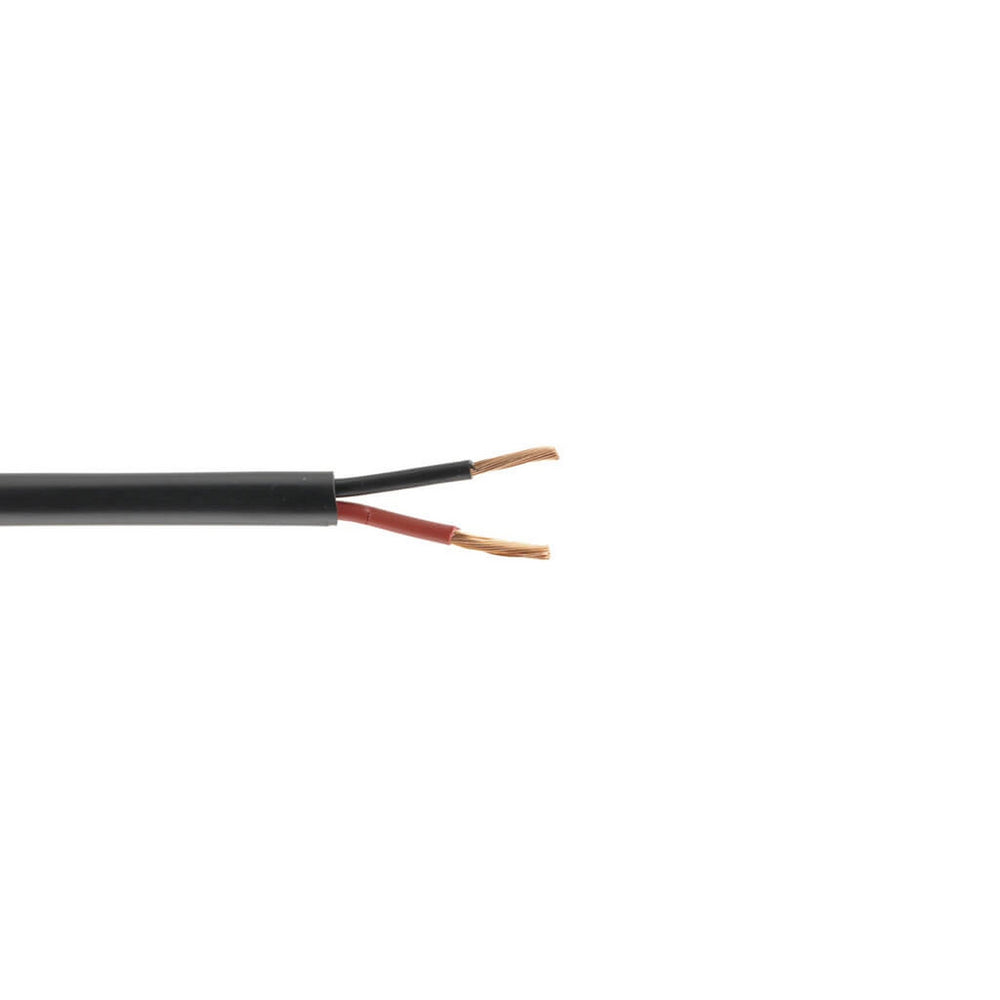

Kramer Low-Smoke Halogen-Free Speaker Bulk Cable, 300 Meters
The Kramer BC‑2Sxx/LSHF is a high-quality twisted-pair bulk speaker cable, available in 12 AWG and 14 AWG variants. Designed for commercial and residential AV systems requiring low-smoke, halogen-free (LSHF) safety compliance, this rugged cable features a gray outer jacket with sequential meter markings and offers dependable performance over long distances for speaker-to-amplifier wiring.
Key Features
- Available Gauges: 12 AWG and 14 AWG stranded bare copper conductors
- Conductor (14 AWG): 2 × 14 AWG (41 strands × 0.254 mm), Ø 1.87 mm
- Insulation: HD‑PE, Ø 2.50 ± 0.10 mm, color-coded red/black
- Jacket: LSHF gray Ø 6.20 ± 0.15 mm with meter markings
- Length: 300 m / 985 ft reel
- Fire Safety: IEC 60332‑1, IEC 60754‑1; UL VW‑1; RoHS compliant
- Temperature Rating: −20 °C to +75 °C
- Applications: Speaker to amplifier wiring in AV installations
Technical Specifications
- Cable Length: 300 m (985 ft)
- Conductor Diameter (14 AWG): 1.87 mm (0.074 in)
- Insulation Diameter: 2.50 ± 0.10 mm
- Jacket Diameter: 6.20 ± 0.15 mm
- DC Resistance: max 8.9 Ω/km (2.7 Ω/1000 ft)
- Operating Temperature: −20 °C to +75 °C
- RoHS & Fire Standards: IEC 60332‑1, IEC 60754‑1, UL VW‑1, EN 50265-1/-2
Package and Weight
- Reel Weight (14 AWG): 46lbs (20.9kg)
What’s Included
- 1 × 300 m (985 ft) reel of Kramer BC‑2Sxx/LSHF speaker cable (12 AWG or 14 AWG)
