Kramer Multimode 4-Channel LC Fiber Optic Cable - 164'

Kramer | SKU: KRMR-C4LC4LC164-940401164
$20800

Free Shipping




Estimated Shipping Widget will be displayed here!


Condition: New

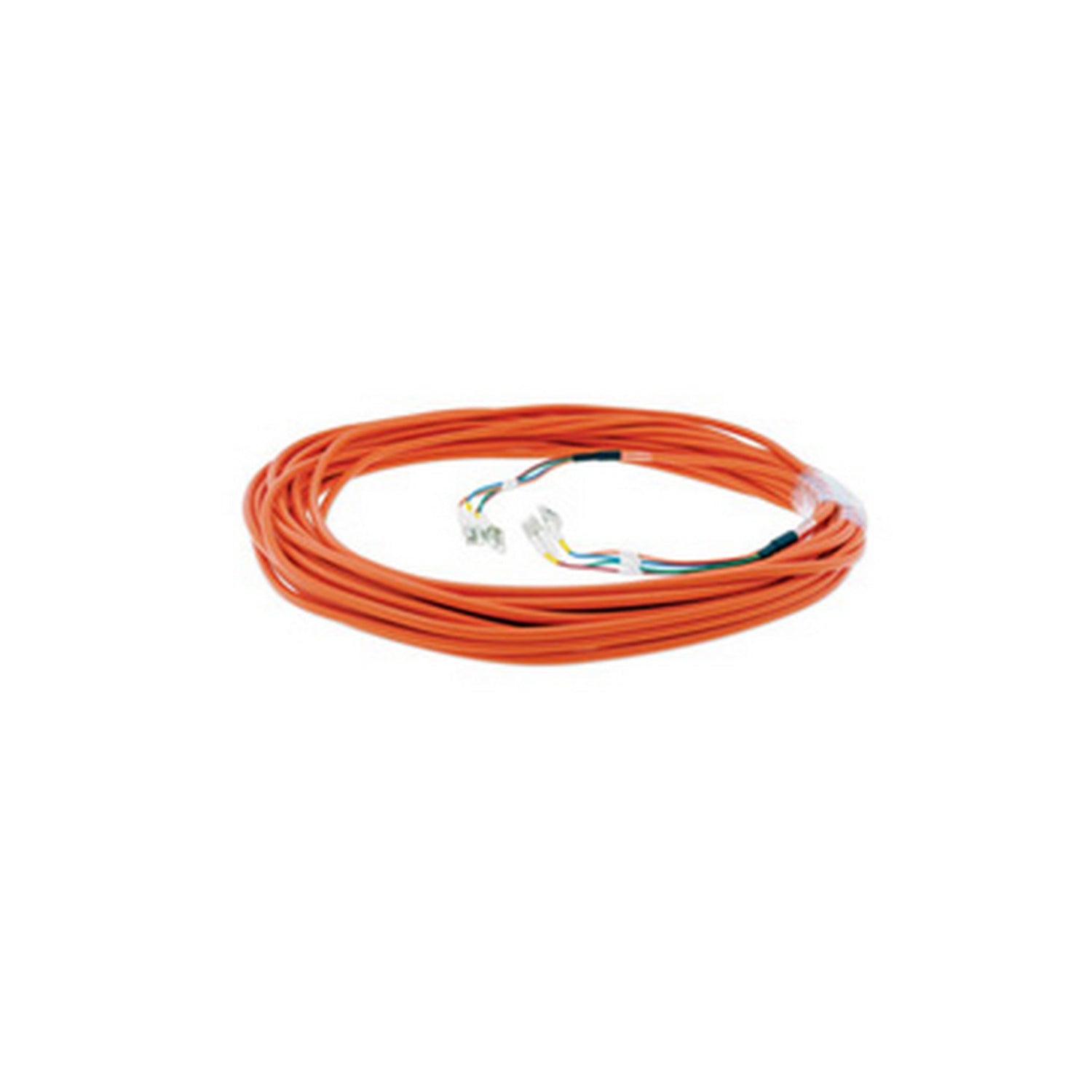

Kramer C-4LC/4LC Multimode 4-Channel LC Fiber Optic Cable

The Kramer C-4LC/4LC is a high-performance 4-channel multimode fiber optic cable designed for professional AV and data applications. Constructed with four color-coded 50/125µm multimode simplex fibers in a durable 7.0 mm outer jacket, this cable offers exceptional durability and performance for high-speed transmission over long distances.

Each sub-cable is 2.0 mm in diameter and color-coded (red, green, blue, orange) for quick identification. Terminated with LC male connectors and fitted with protective dust caps, the C-4LC/4LC is ideal for use with Kramer’s detachable transmitter/receiver sets such as 610T/R, 621T/R, and 631T/R. It supports an 850nm operating wavelength with a low insertion loss of 0.3dB.

Key Features

  • Fiber Type: Multimode 50/125µm optical fiber
  • Connector: 4 × LC (male) to 4 × LC (male)
  • Construction: PVC (OFNR) jacket, 4 sub-cables with 2.0 mm diameter each
  • Outer Jacket: 7.0 mm diameter, orange color
  • Color-Coded Cores: Red, green, blue, and orange
  • Insertion Loss: 0.3 dB
  • Operating Wavelength: 850 nm
  • Temperature Range: −40° to 80°C (−40° to 176°F)
  • Available Lengths: 33 ft to 1640 ft (10 m to 500 m)
  • Compatibility: 610T/R, 621T/R, 631T/R optical extenders

Technical Specifications

  • Fiber: Multimode 50/125µm
  • Fiber Cord: 2.0 mm × 4, PVC (OFNR)
  • Outer Diameter: 0.275" (7.0 mm)
  • Operating Wavelength: 850 nm
  • Insertion Loss: 0.3 dB
  • Temperature Range: −40° to 80°C (−40° to 176°F)
  • Connector Ends: LC (male) to LC (male), with dust caps
  • Lengths Available: 98 ft to 328 ft

What's Included

  • 1 × Kramer C-4LC/4LC fiber optic cable (selected length)

KRAMER C-4LC/4LC Multimode 4-Channel LC Fiber Optic Cable

The Kramer C-4LC/4LC is a high-performance 4-channel multimode fiber optic cable designed for professional AV and data applications. Constructed with four color-coded 50/125µm multimode simplex fibers in a durable 7.0 mm outer jacket, this cable offers exceptional durability and performance for high-speed transmission over long distances.

Each sub-cable is 2.0 mm in diameter and color-coded (red, green, blue, orange) for quick identification. Terminated with LC male connectors and fitted with protective dust caps, the C-4LC/4LC is ideal for use with Kramer’s detachable transmitter/receiver sets such as 610T/R, 621T/R, and 631T/R. It supports an 850nm operating wavelength with a low insertion loss of 0.3dB.

Key Features

  • Fiber Type: Multimode 50/125µm optical fiber
  • Connector: 4 × LC (male) to 4 × LC (male)
  • Construction: PVC (OFNR) jacket, 4 sub-cables with 2.0 mm diameter each
  • Outer Jacket: 7.0 mm diameter, orange color
  • Color-Coded Cores: Red, green, blue, and orange
  • Insertion Loss: 0.3 dB
  • Operating Wavelength: 850 nm
  • Temperature Range: −40° to 80°C (−40° to 176°F)
  • Available Lengths: 33 ft to 1640 ft (10 m to 500 m)
  • Compatibility: 610T/R, 621T/R, 631T/R optical extenders

Technical Specifications

  • Fiber: Multimode 50/125µm
  • Fiber Cord: 2.0 mm × 4, PVC (OFNR)
  • Outer Diameter: 0.275" (7.0 mm)
  • Operating Wavelength: 850 nm
  • Insertion Loss: 0.3 dB
  • Temperature Range: −40° to 80°C (−40° to 176°F)
  • Connector Ends: LC (male) to LC (male), with dust caps
  • Lengths Available: 33 ft (10 m) to 1640 ft (500 m)

What's Included

  • 1 × Kramer C-4LC/4LC fiber optic cable (selected length)
Kramer

Kramer Multimode 4-Channel LC Fiber Optic Cable

From $18400

Free Shipping

Kramer C-4LC/4LC Multimode 4-Channel LC Fiber Optic Cable

The Kramer C-4LC/4LC is a high-performance 4-channel multimode fiber optic cable designed for professional AV and data applications. Constructed with four color-coded 50/125µm multimode simplex fibers in a durable 7.0 mm outer jacket, this cable offers exceptional durability and performance for high-speed transmission over long distances.

Each sub-cable is 2.0 mm in diameter and color-coded (red, green, blue, orange) for quick identification. Terminated with LC male connectors and fitted with protective dust caps, the C-4LC/4LC is ideal for use with Kramer’s detachable transmitter/receiver sets such as 610T/R, 621T/R, and 631T/R. It supports an 850nm operating wavelength with a low insertion loss of 0.3dB.

Key Features

  • Fiber Type: Multimode 50/125µm optical fiber
  • Connector: 4 × LC (male) to 4 × LC (male)
  • Construction: PVC (OFNR) jacket, 4 sub-cables with 2.0 mm diameter each
  • Outer Jacket: 7.0 mm diameter, orange color
  • Color-Coded Cores: Red, green, blue, and orange
  • Insertion Loss: 0.3 dB
  • Operating Wavelength: 850 nm
  • Temperature Range: −40° to 80°C (−40° to 176°F)
  • Available Lengths: 33 ft to 1640 ft (10 m to 500 m)
  • Compatibility: 610T/R, 621T/R, 631T/R optical extenders

Technical Specifications

  • Fiber: Multimode 50/125µm
  • Fiber Cord: 2.0 mm × 4, PVC (OFNR)
  • Outer Diameter: 0.275" (7.0 mm)
  • Operating Wavelength: 850 nm
  • Insertion Loss: 0.3 dB
  • Temperature Range: −40° to 80°C (−40° to 176°F)
  • Connector Ends: LC (male) to LC (male), with dust caps
  • Lengths Available: 98 ft to 328 ft

What's Included

  • 1 × Kramer C-4LC/4LC fiber optic cable (selected length)

KRAMER C-4LC/4LC Multimode 4-Channel LC Fiber Optic Cable

The Kramer C-4LC/4LC is a high-performance 4-channel multimode fiber optic cable designed for professional AV and data applications. Constructed with four color-coded 50/125µm multimode simplex fibers in a durable 7.0 mm outer jacket, this cable offers exceptional durability and performance for high-speed transmission over long distances.

Each sub-cable is 2.0 mm in diameter and color-coded (red, green, blue, orange) for quick identification. Terminated with LC male connectors and fitted with protective dust caps, the C-4LC/4LC is ideal for use with Kramer’s detachable transmitter/receiver sets such as 610T/R, 621T/R, and 631T/R. It supports an 850nm operating wavelength with a low insertion loss of 0.3dB.

Key Features

  • Fiber Type: Multimode 50/125µm optical fiber
  • Connector: 4 × LC (male) to 4 × LC (male)
  • Construction: PVC (OFNR) jacket, 4 sub-cables with 2.0 mm diameter each
  • Outer Jacket: 7.0 mm diameter, orange color
  • Color-Coded Cores: Red, green, blue, and orange
  • Insertion Loss: 0.3 dB
  • Operating Wavelength: 850 nm
  • Temperature Range: −40° to 80°C (−40° to 176°F)
  • Available Lengths: 33 ft to 1640 ft (10 m to 500 m)
  • Compatibility: 610T/R, 621T/R, 631T/R optical extenders

Technical Specifications

  • Fiber: Multimode 50/125µm
  • Fiber Cord: 2.0 mm × 4, PVC (OFNR)
  • Outer Diameter: 0.275" (7.0 mm)
  • Operating Wavelength: 850 nm
  • Insertion Loss: 0.3 dB
  • Temperature Range: −40° to 80°C (−40° to 176°F)
  • Connector Ends: LC (male) to LC (male), with dust caps
  • Lengths Available: 33 ft (10 m) to 1640 ft (500 m)

What's Included

  • 1 × Kramer C-4LC/4LC fiber optic cable (selected length)

Cable Length

  • 164'
  • 200'
  • 328'
  • 99'
